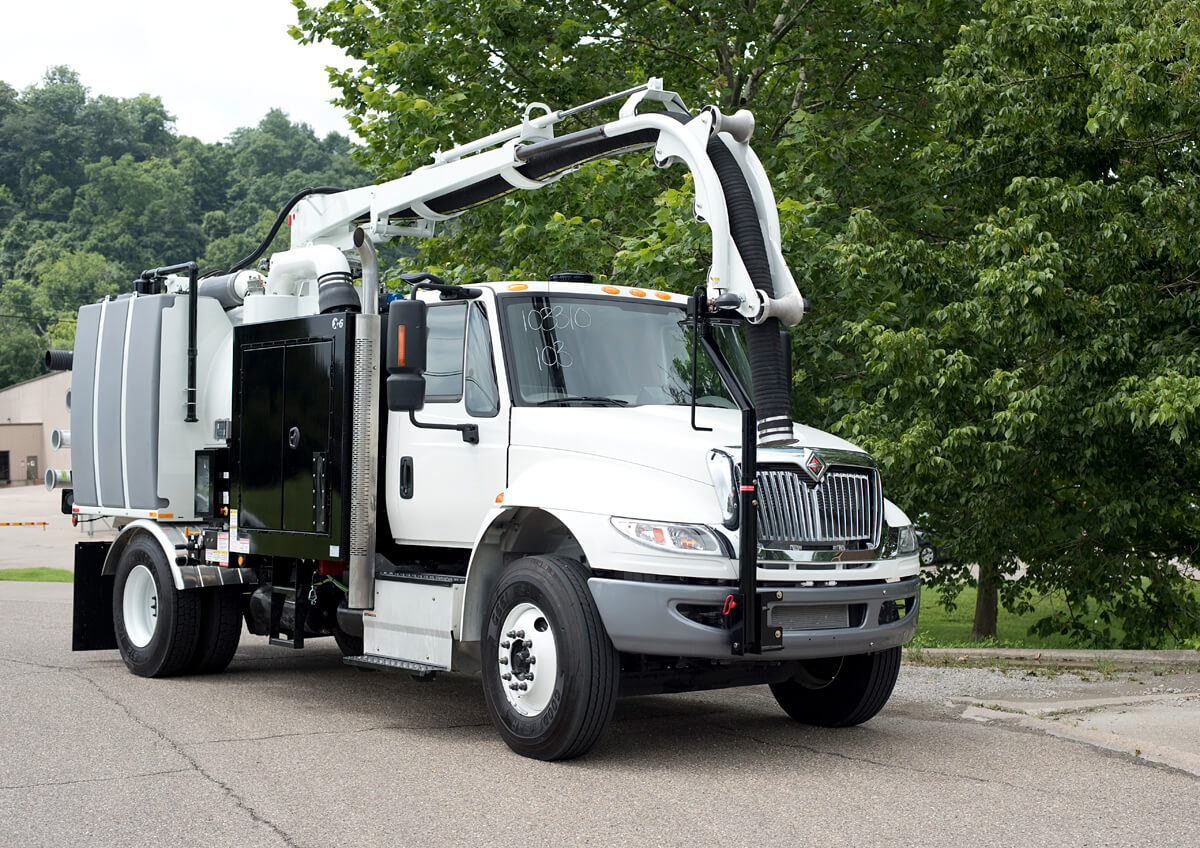

X-Vac X-6 Hydro Excavator

We no longer sell new HiVac Products (Aquatech, X-Vac, & O’Brien).
Check out the next level selection from Tier 1 manufacturers, Super Products, Harben & Hot Jet!

The X-6 is ideal for utility work including potholing and utility location. This is our most compact hydro excavator, with a debris tank capacity of 6 cubic yards and 570 gallon water capacity.

Debris Tank Capacity
6 cu. yds

The X-6 has been replaced by the X-8.
Click here to see the X-Vac X-8.

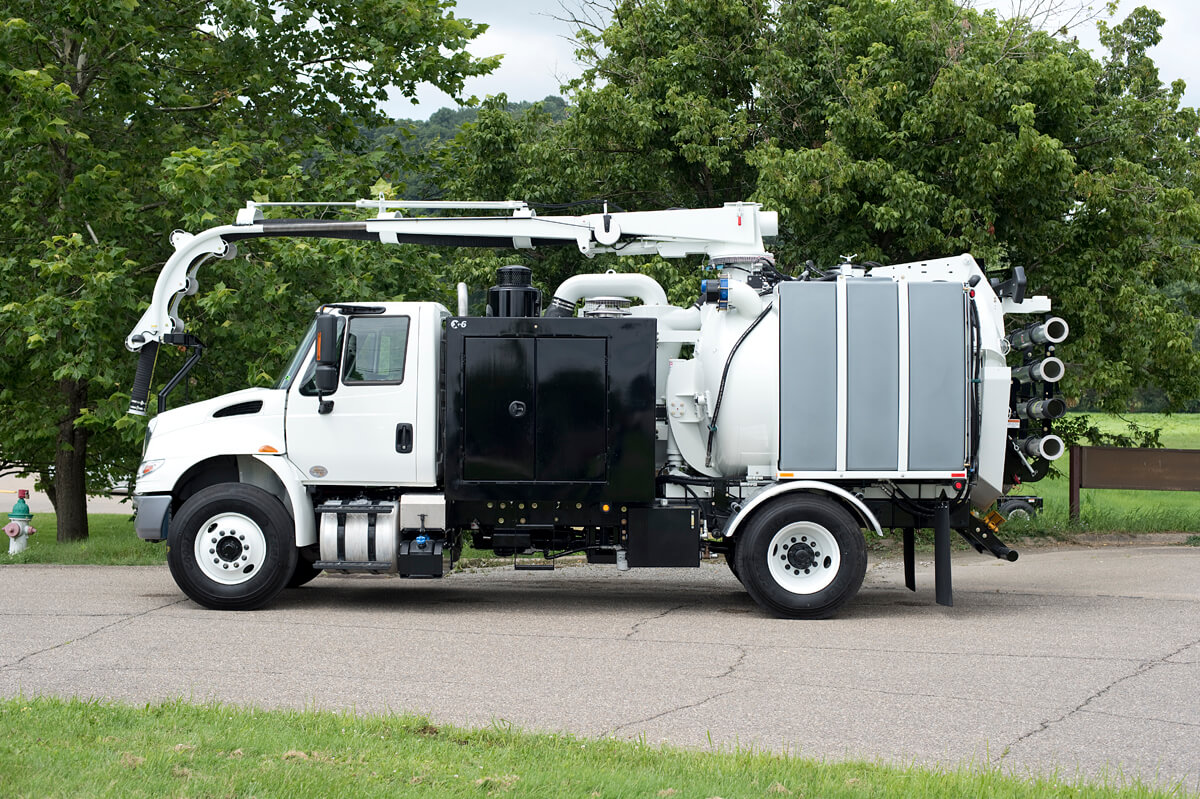

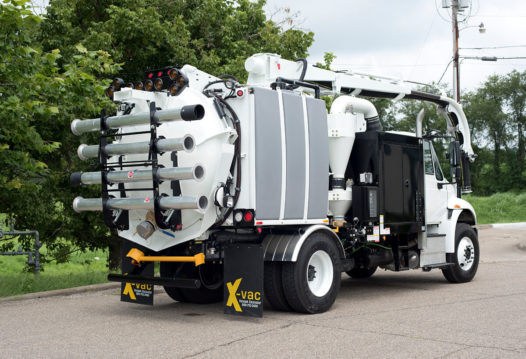

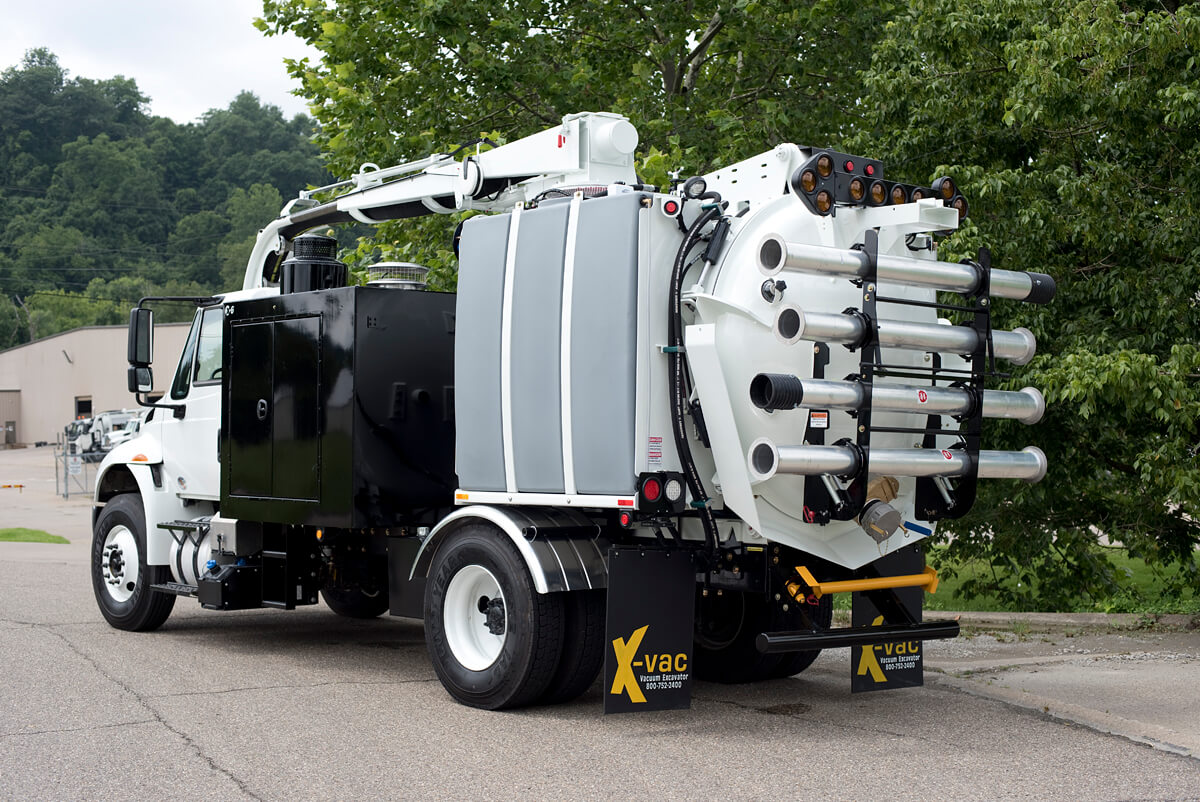

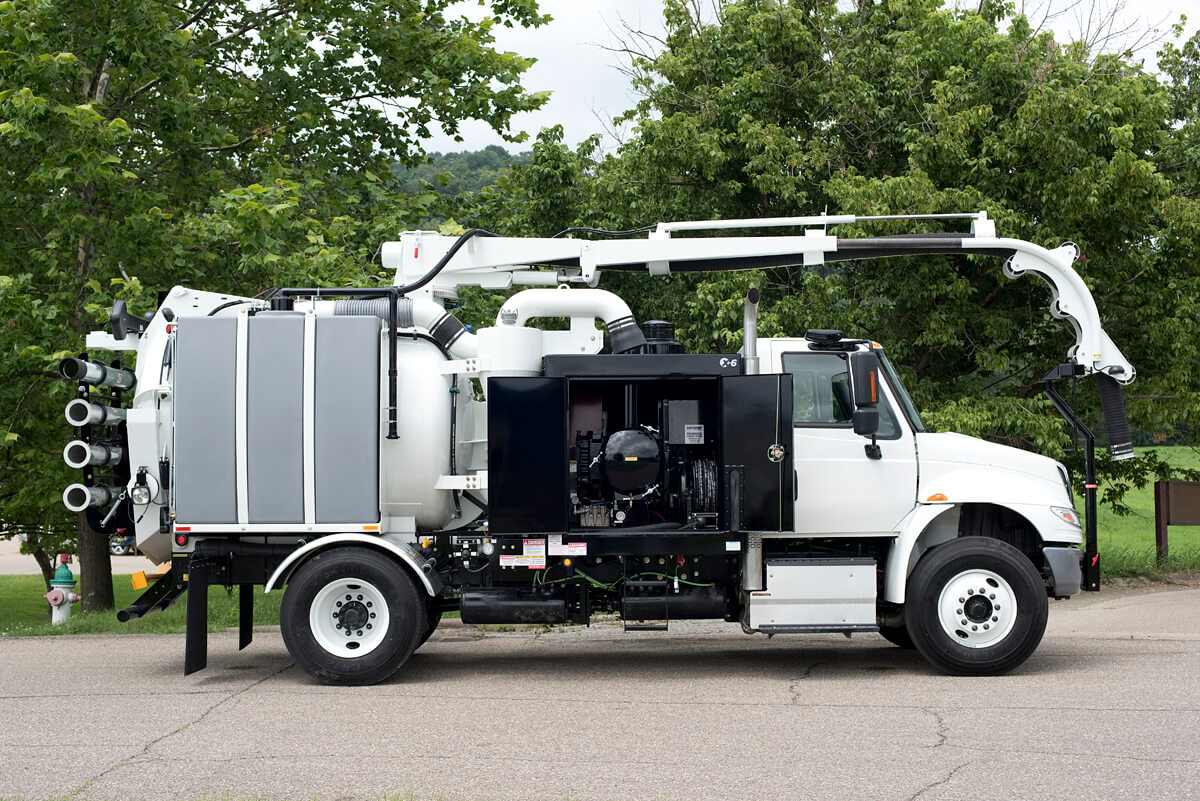

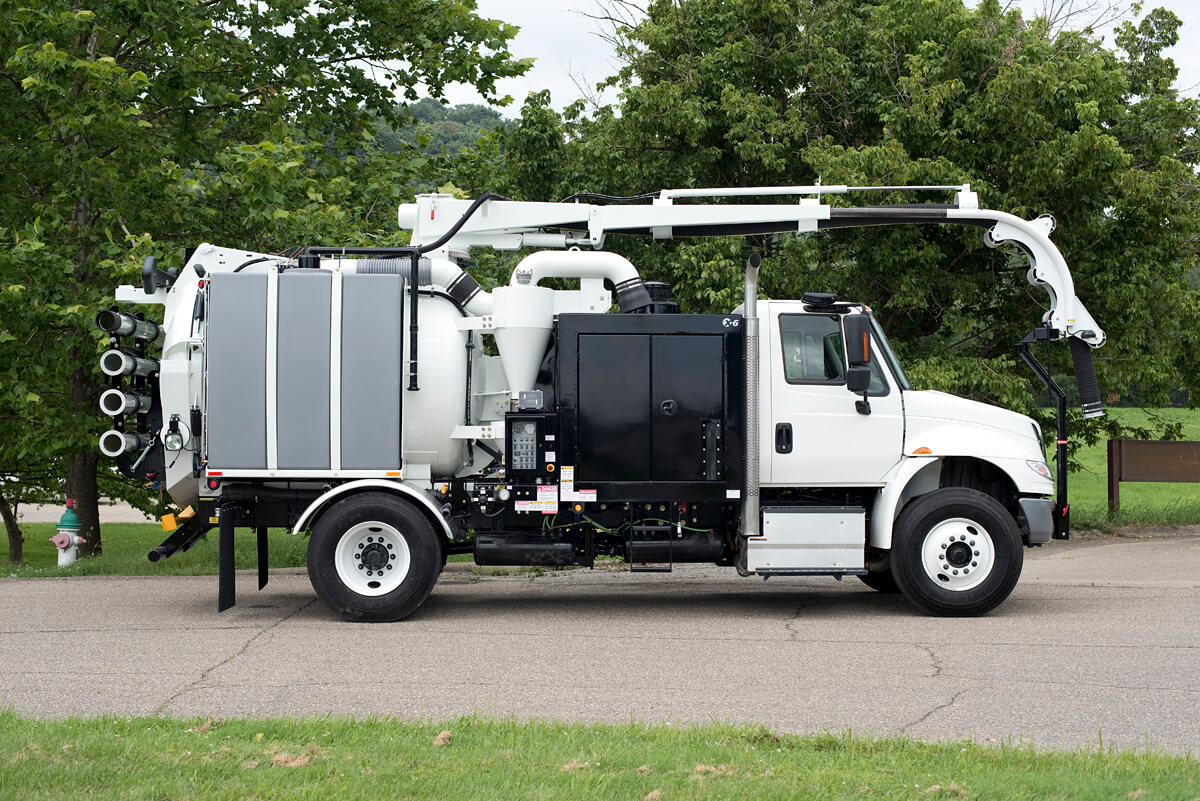

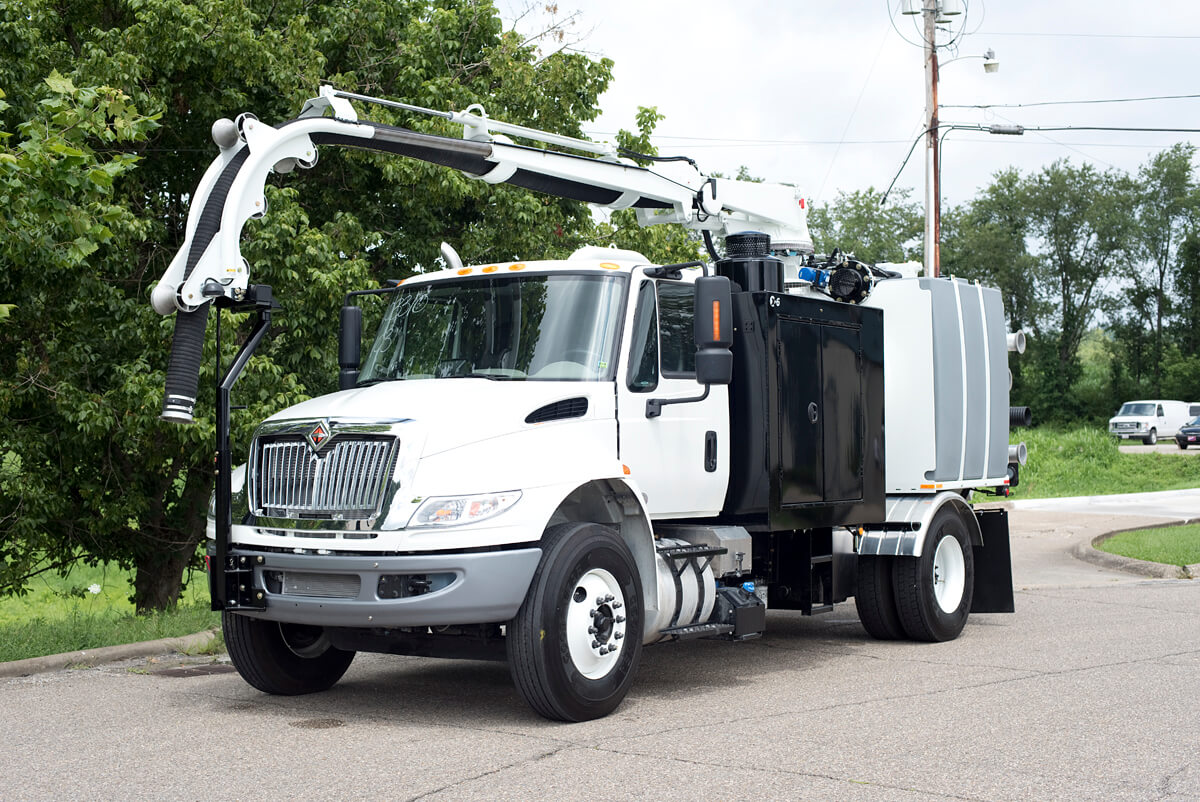

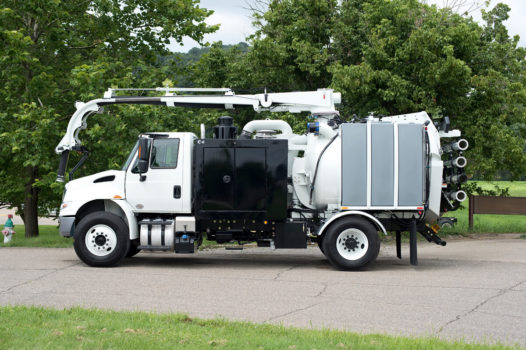

The X-6 Hydro Excavator is ideal for utility work including potholing and utility location. Hydro excavation is one of the best ways to approach this work because unlike other excavation equipment, the water used by hydro excavators can remove soil without damaging fiberglass piping and other fragile parts of underground utility equipment.

The single-axle X-6 Hydro Excavator has a powerful 3400 CFM @ 16″ Hg vacuum blower with a small footprint. The 570-gallon water capacity and 10 GPM @ 2000 PSI Triplex water pump assures that all hydro excavation needs will be met effectively and efficiently.


  • 6″ High Capacity Vacuum System
  • Triplex Water Pump: 10 GPM @ 2000 PSI
  • Cyclonic Dust Separators
  • 570-Gallon Water Capacity
  • 3400 CFM @ 16″ Hg Vacuum Blower
  • 6 Cubic Yard Debris Body
  • Polygraphite Rust-Free Water Tanks (Lifetime Warranty)
  • Powerful Transfer Case Drive System
  • Optional Features

  • 400,000 BTU Heater
  • Heated Enclosure
  • 27″ Hg @ 2300 CFM Blower
  • Additional Features

    Debris Tank

  • Cylindrical design, 50,000 PSI minimum yield strength
  • Directional splash shield including side shielding attached to the tank
  • Blower

  • Roots Model 616 DVJ vacuum pump capable of producing 2400 CFM
  • Ultra quiet exhaust silencer
  • Water Tanks/Pump

  • Poly-graphite rust-free tanks
  • Adjustable Triplex water pump; 0-2,500 PSI
  • Miscellaneous

  • Spring loaded hose reel
  • Control Panel mounted on curb side of unit
  • LED DOT lighting
  • Cold Weather Package
  • Vacuum Tube Package
  • Single axle diesel-powered truck chassis
  • Chassis engine powers the system
  • Frame mounted ground cable reel
  • Additional information


    Debris Tank Capacity

    Power Source


    Water Pump

    10 GPM @ 2000 PSI

    Vacuum Blower

    3400 CFM @ 16" Hg, Optional: 2300 CFM @ 27" Hg
