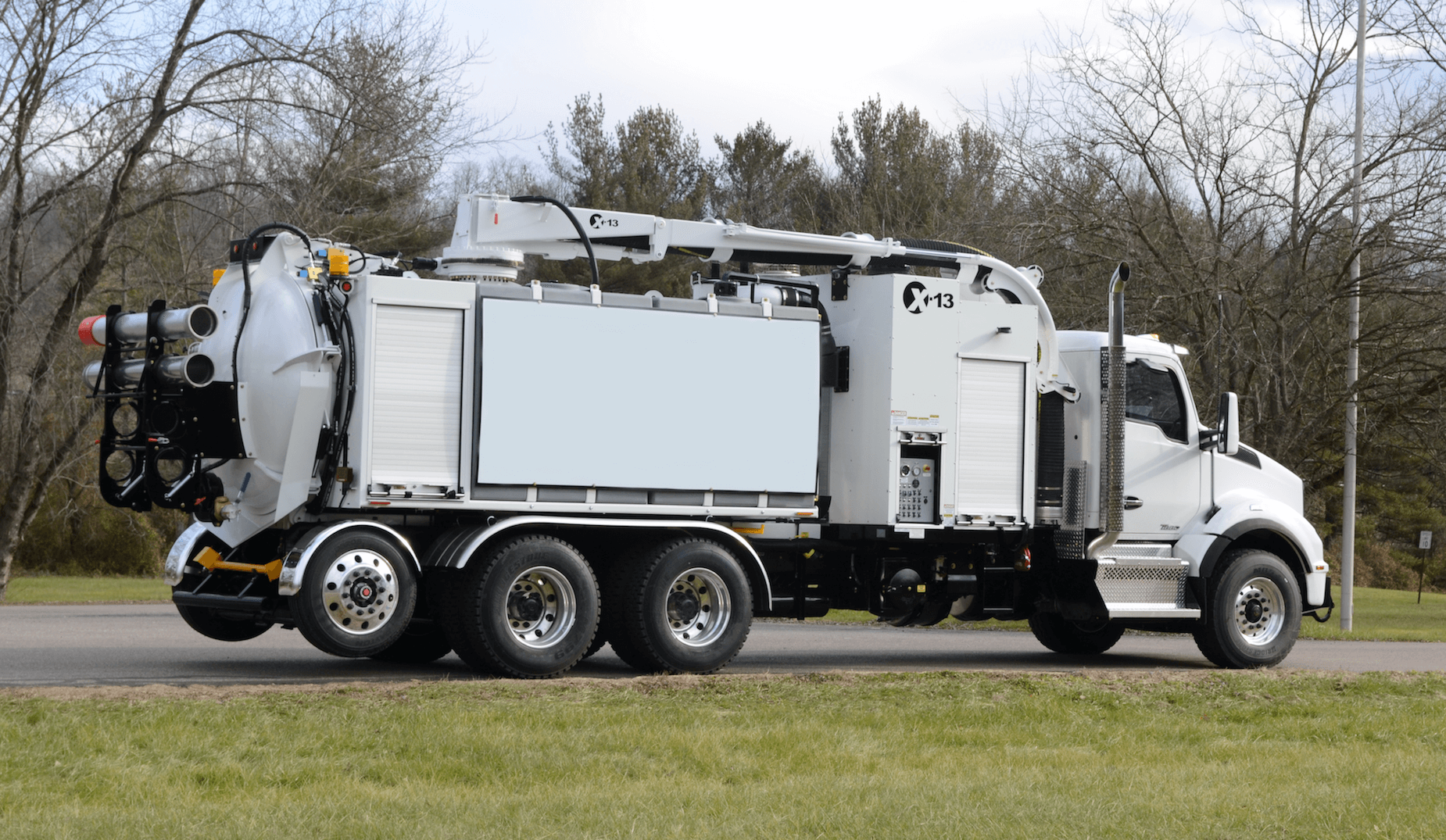

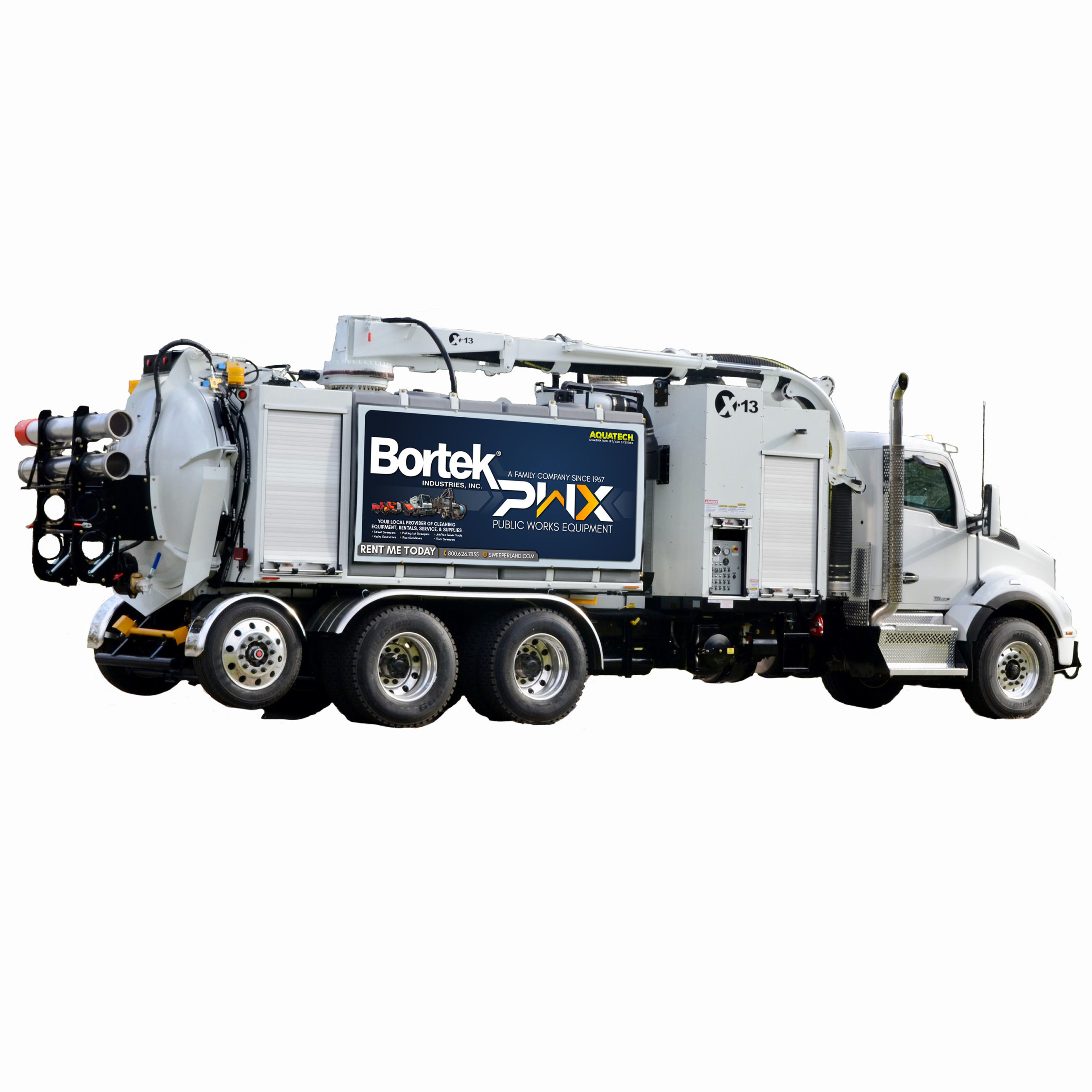

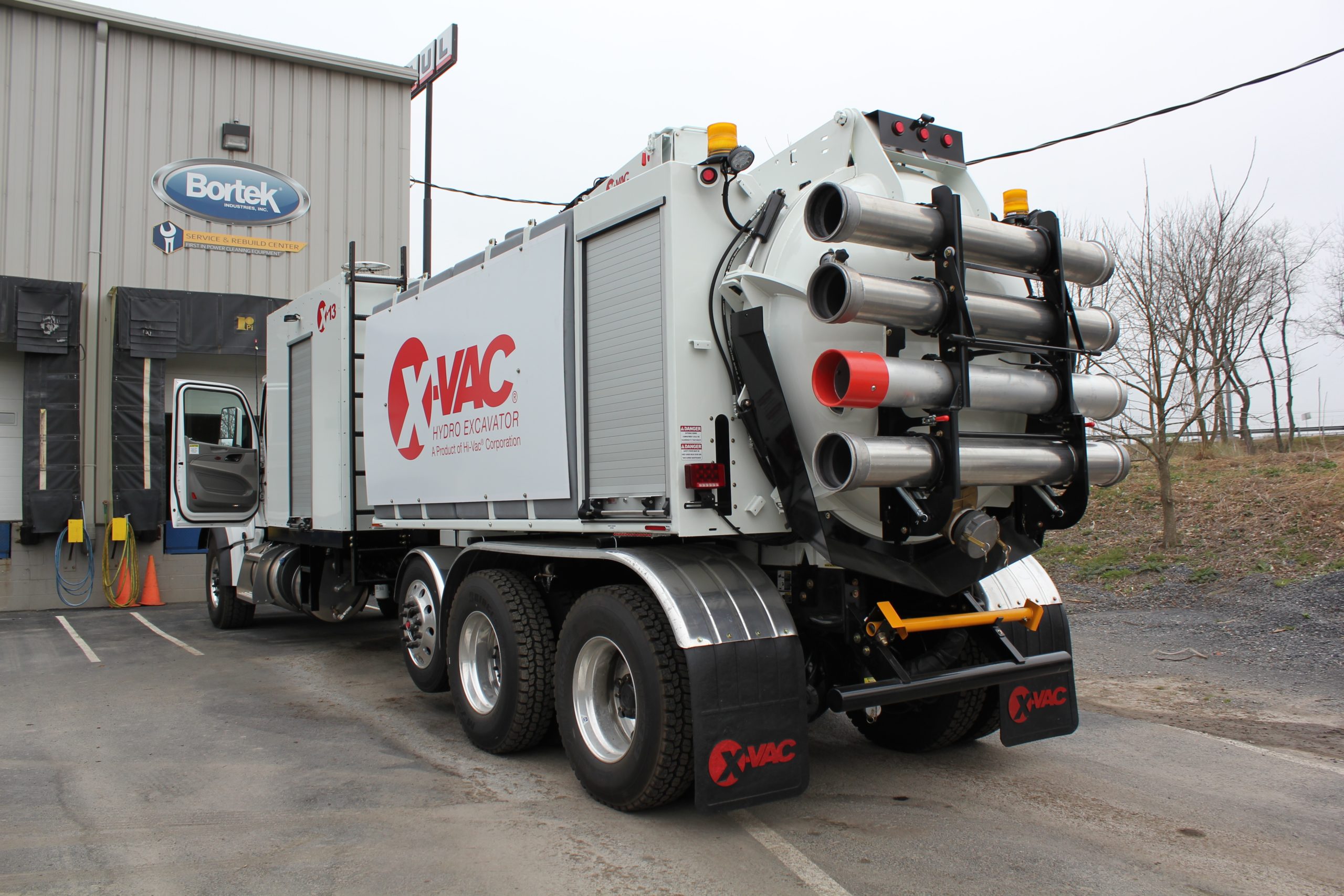

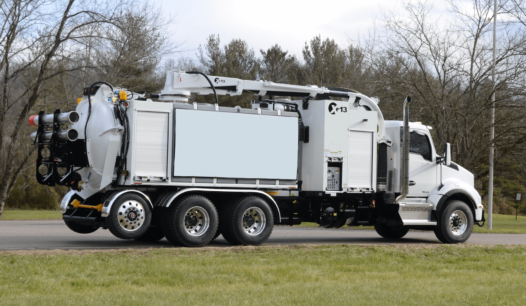

X-Vac X-13 Hydro Excavator

The X-13 is ideal for off-highway applications where on-site dumping is necessary. It can carry 13 cubic yards of debris and it has a payload capacity of up to 24,500 lbs..

Description

This Much Payload Capacity Shouldn’t Be Legal… But It Is!

The new X-13 is perfect for off-highway applications where weight is not as much of a concern. The X-13 can carry 13 cubic yards of debris and it has available a payload capacity of 23,000 before bridge law tolls are exceeded. The increased payload capacity will help save time and money as dumping will be able to happen on site, but the length of the X-13 will maintain its legal highway capacity.

Features

  • 27″ Hg High-Capacity Vacuum System
  • Triplex Water Pump: 10 GPM @ 2,500 PSI

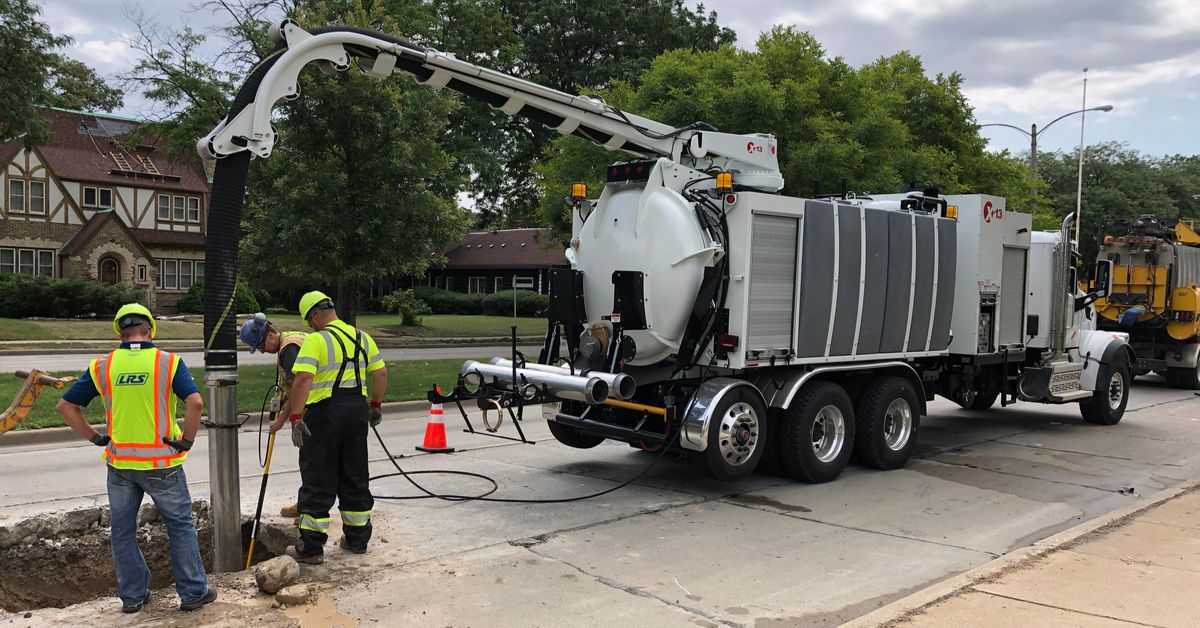

  • Top-Loading 360° Boom
  • Super Tough Poly Graphite Rust-Free Water Tanks (Lifetime Warranty)
  • Effective Power Transfer with OMSI Heavy-Duty Transfer Case Design
  • Noise-Deadening, Heat-Retaining Enclosure Surrounds Water and Vacuum System
  • Additional Features

    Debris Tank

  • Cylindrical design, 50,000 PSI minimum yield strength
  • Directional splash shield including side shielding attached to the tank
  • Blower

  • Roots Model 616 DVJ vacuum pump capable of producing 2400 CFM
  • Ultra quiet exhaust silencer
  • Water Tanks/Pump

  • Poly-graphite rust-free tanks
  • Adjustable Triplex water pump; 0-2,500 PSI
  • Miscellaneous

  • Spring loaded hose reel

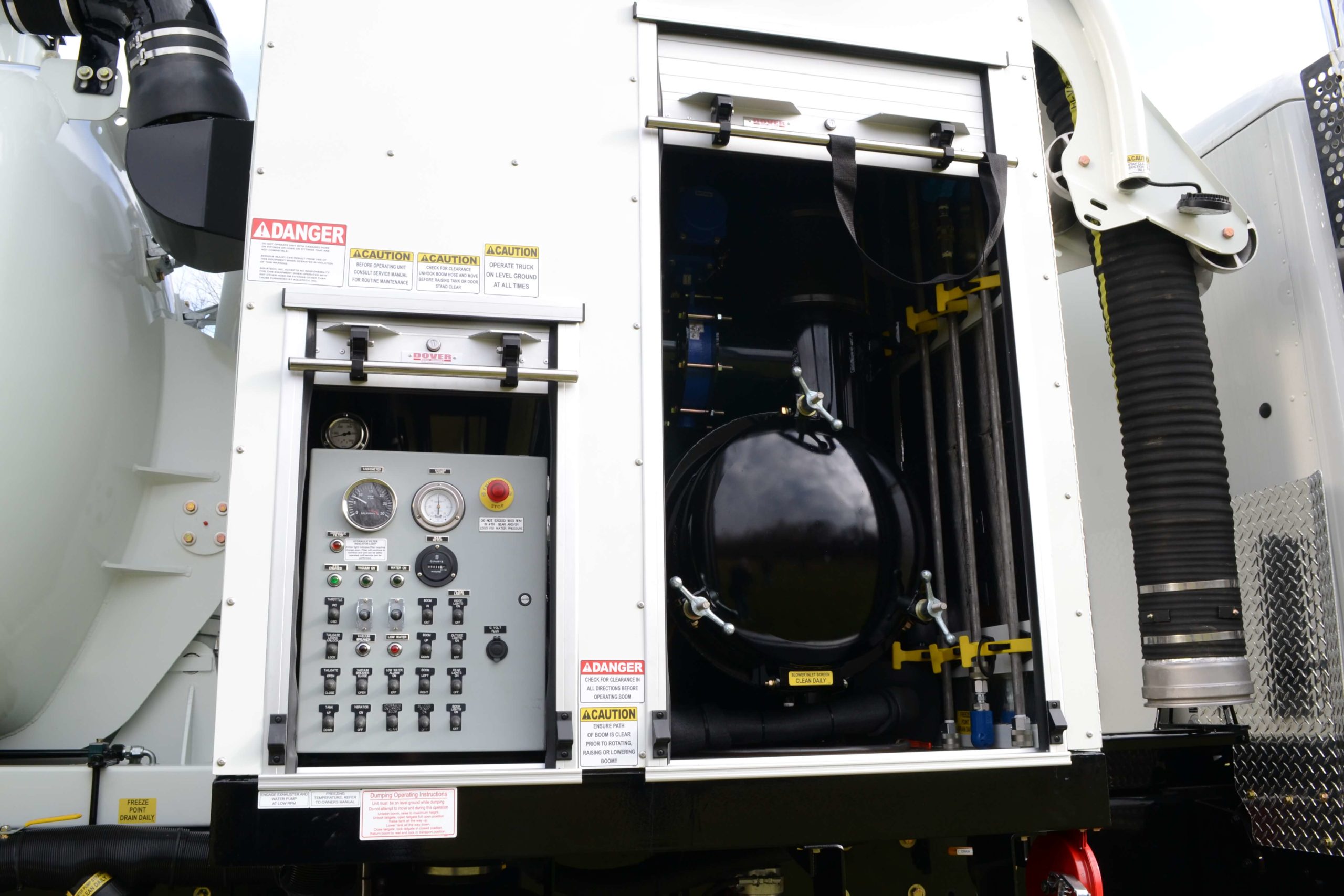

  • Control Panel mounted on curb side of unit
  • LED DOT lighting
  • Cold Weather Package

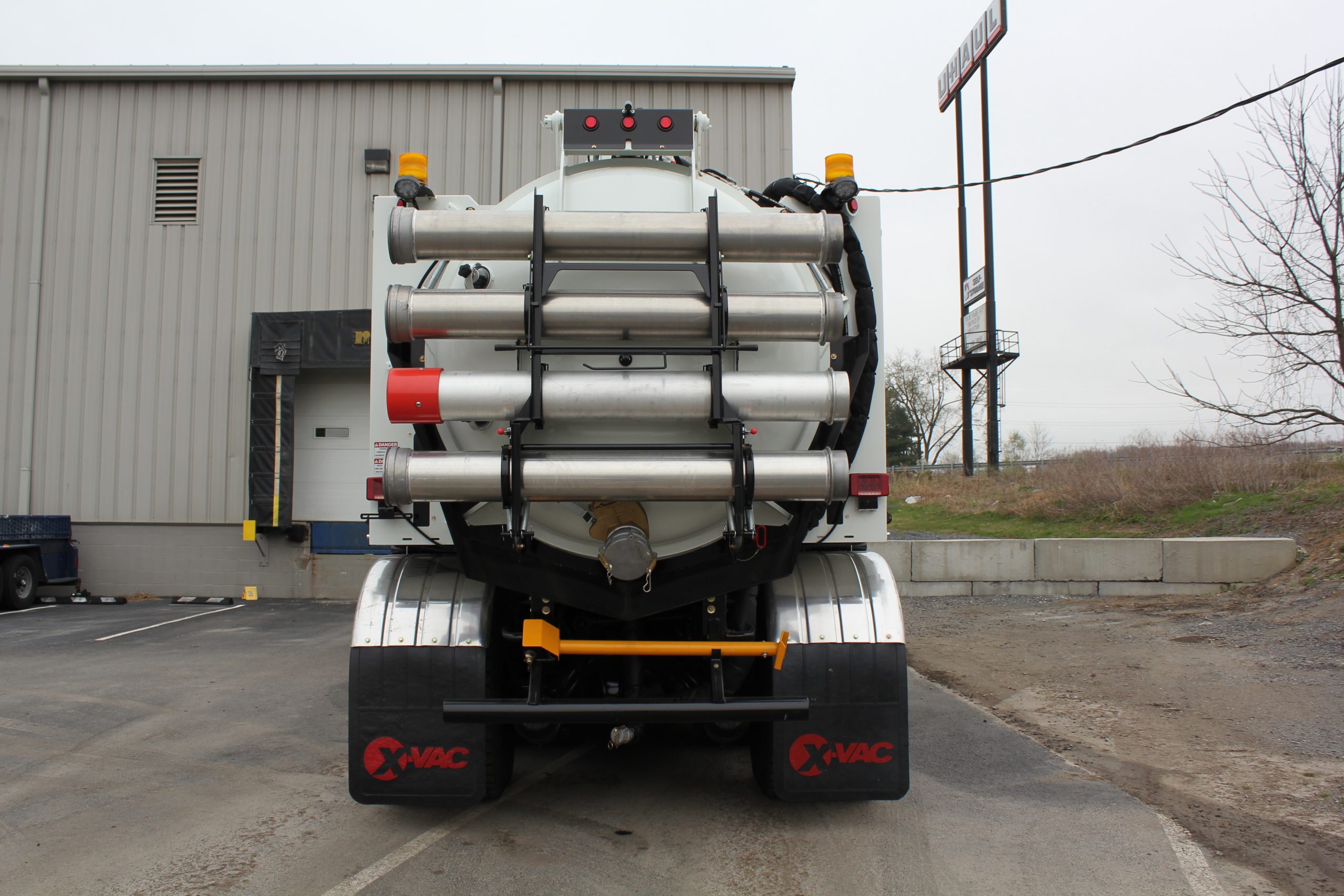

  • Vacuum Tube Package
  • Single axle diesel-powered truck chassis
  • Chassis engine powers the system
  • Frame mounted ground cable reel
  • Additional information

    Application

    Manufacturer

    Debris Tank Capacity

    Power Source

    Water Pump

    10 GPM @ 2,500 PSI

    Vacuum Blower

    5,800 CFM 27" Hg

    Water Storage Capacity

    1,100 gallons
