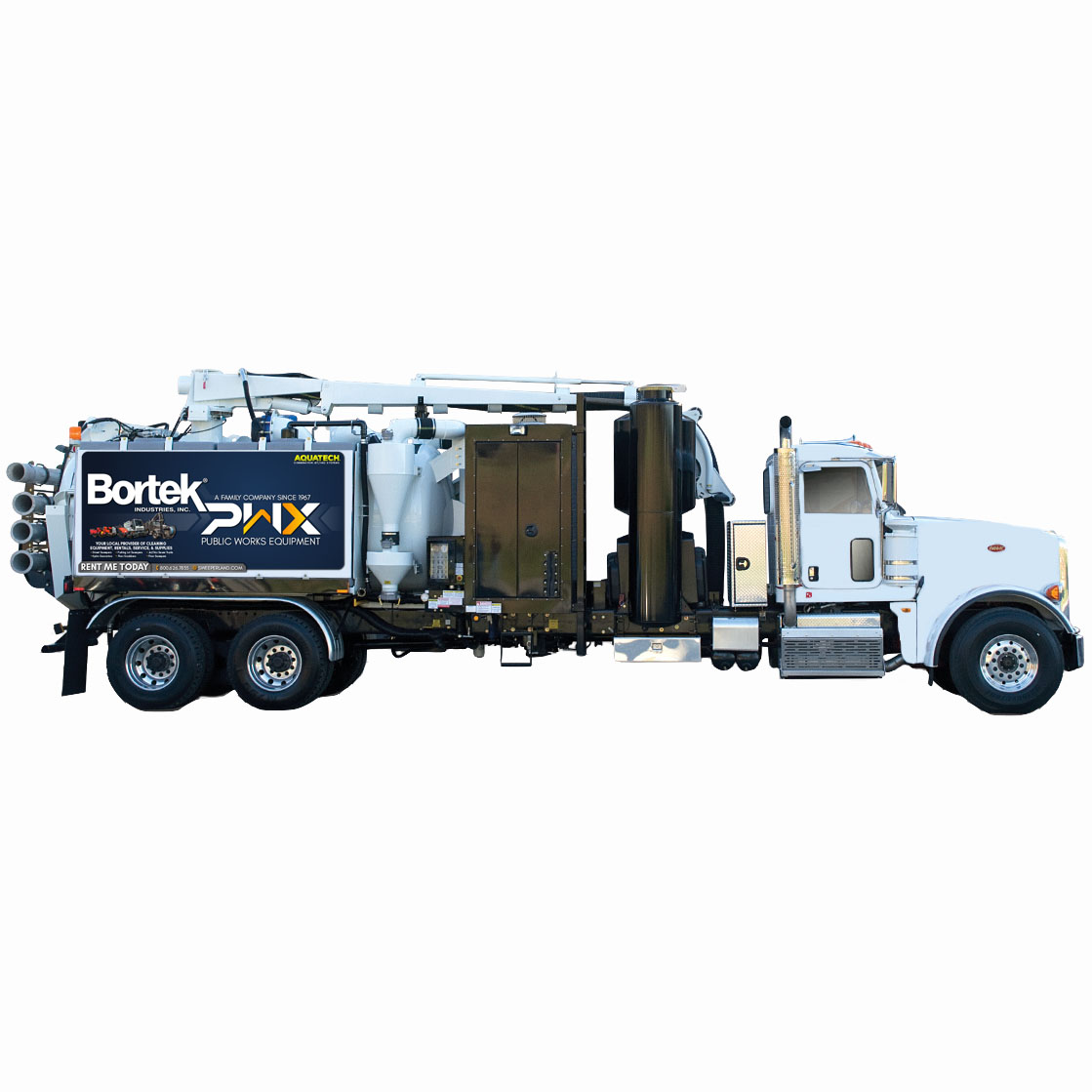

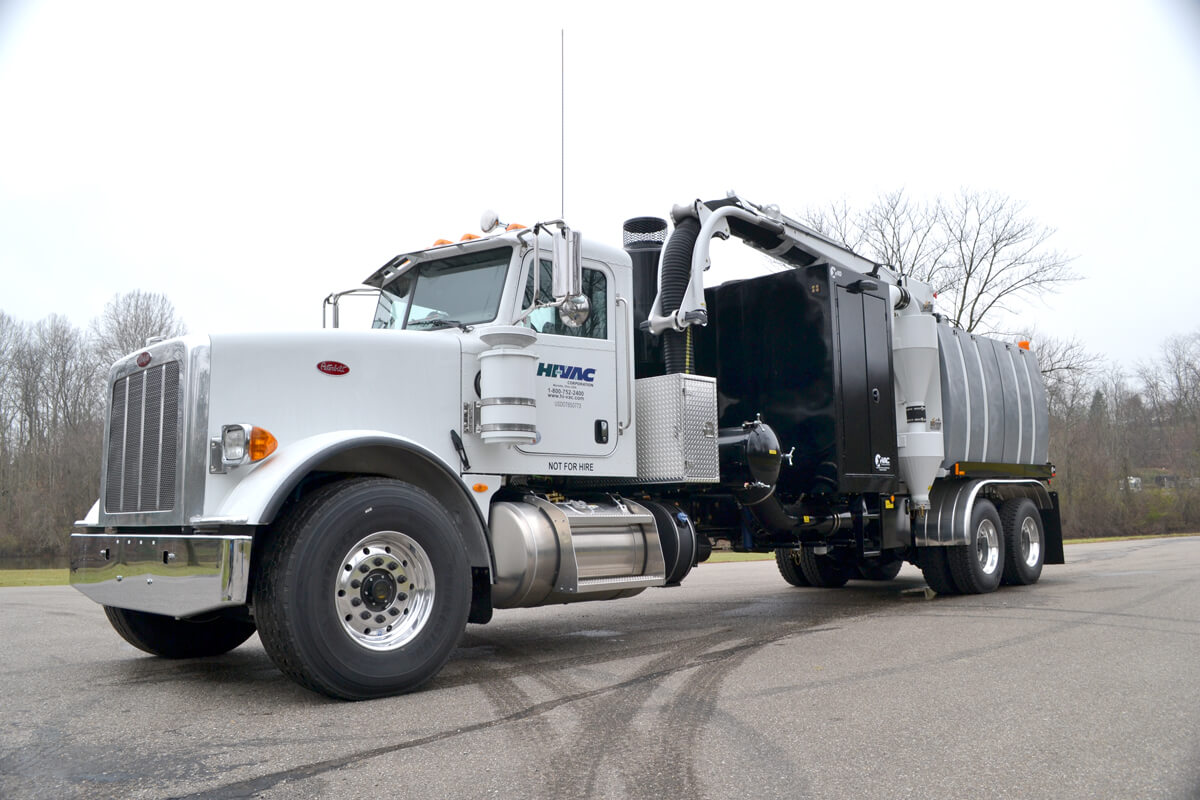

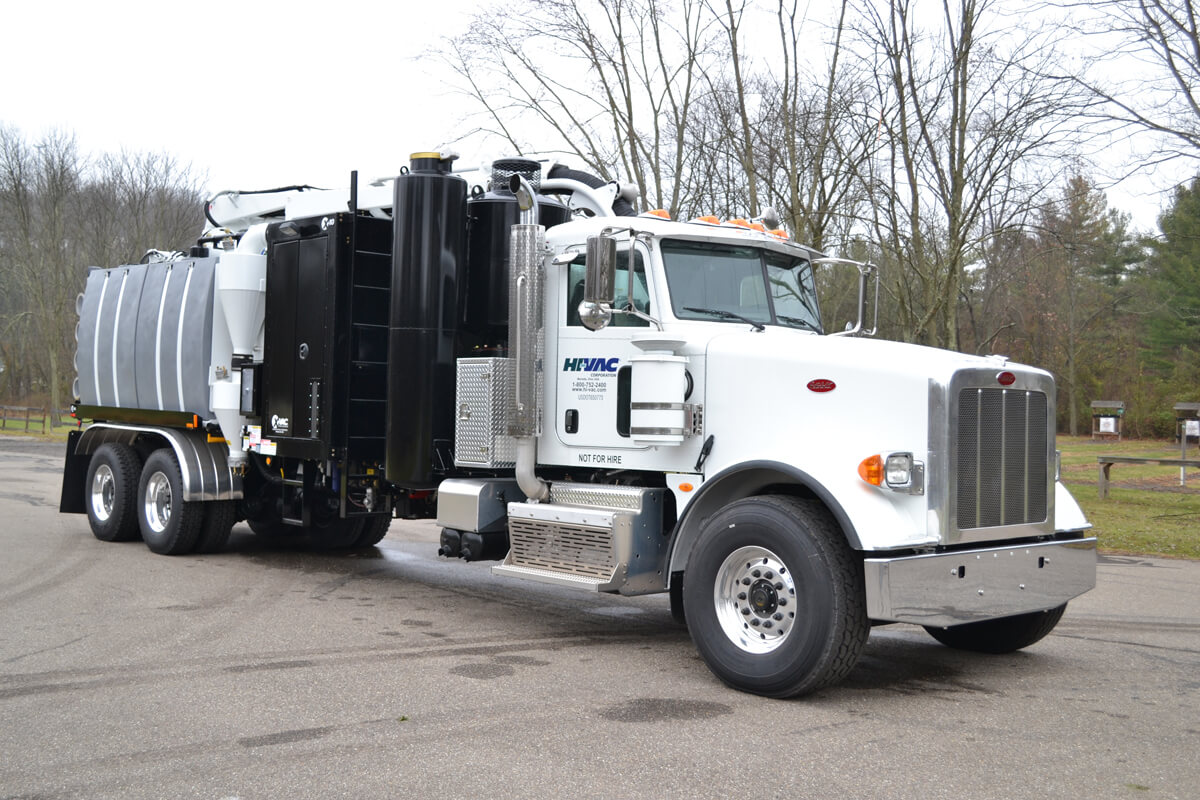

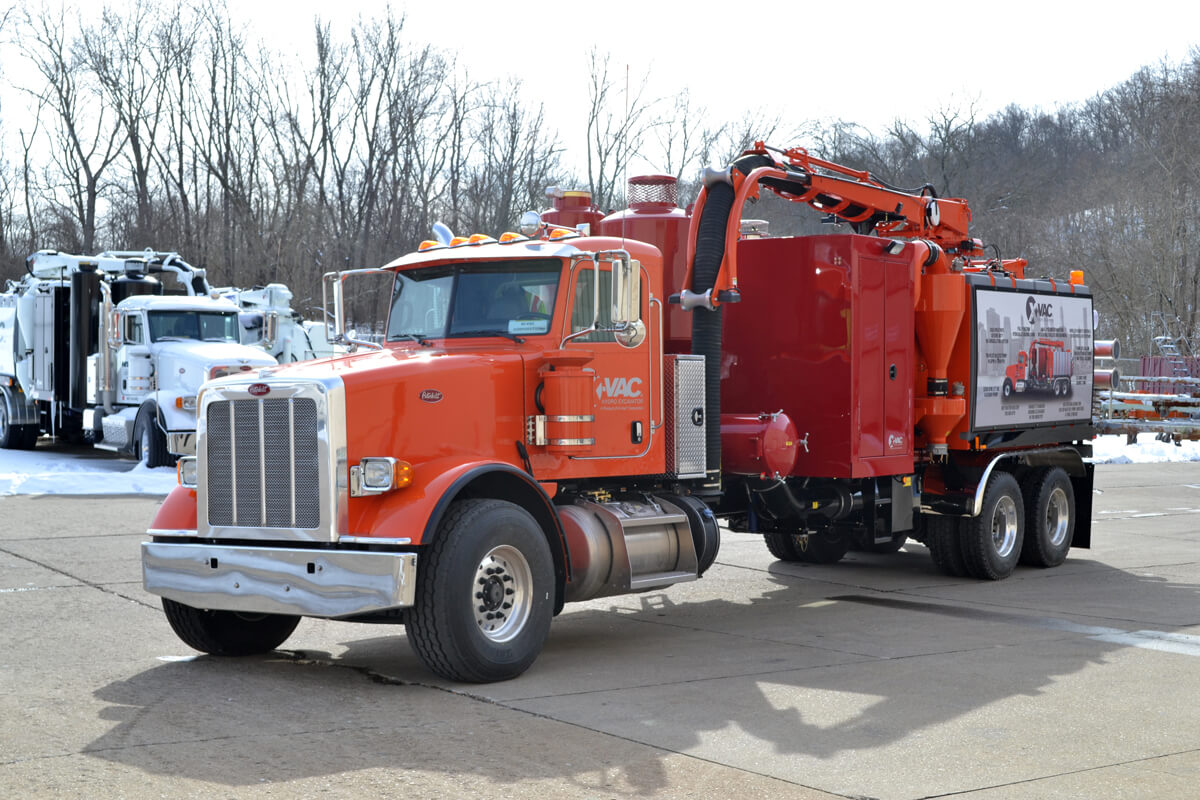

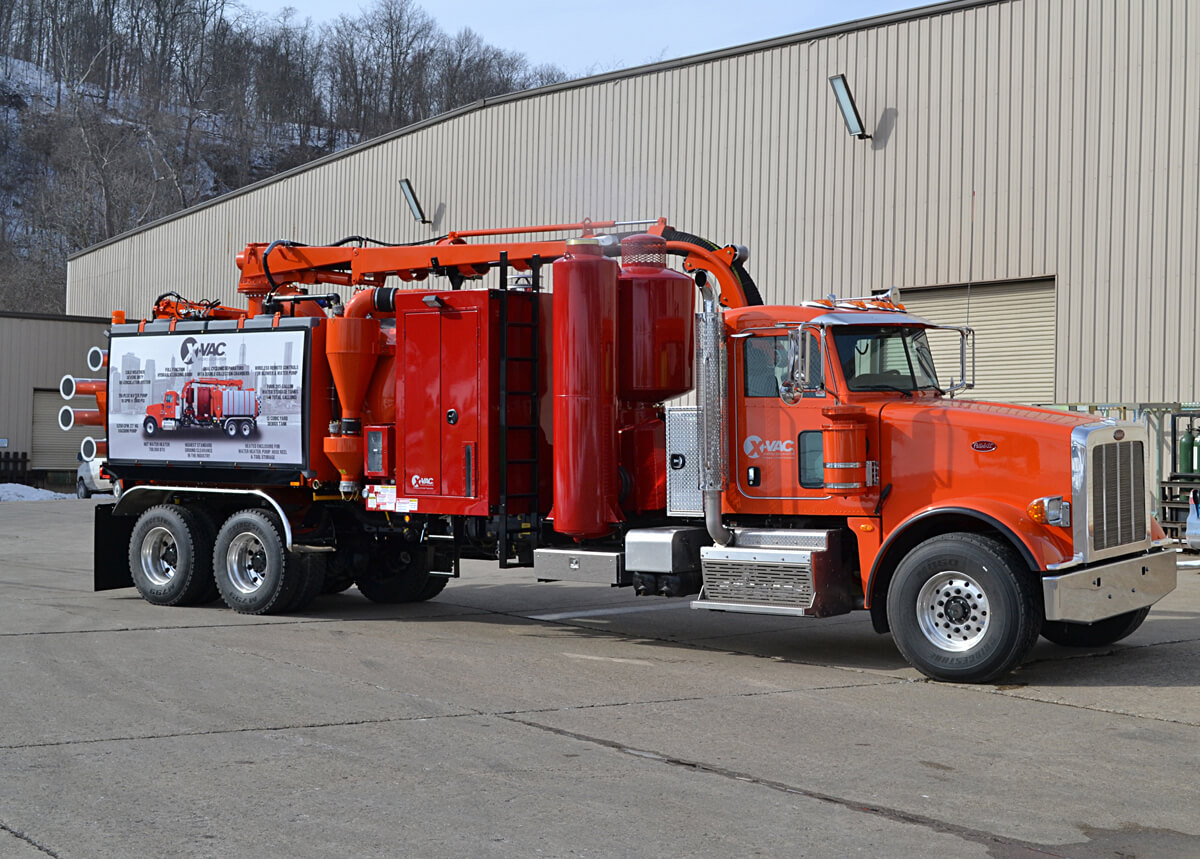

X-Vac X-12 Hydro Excavator

X-12 Hydro Excavator Trucks use state-of-the-art water pump and vacuum technology to safely locate and expose any type or size of underground utilities. Soil, sand and rock are quickly, safely and neatly excavated. Risk of underground utility strikes is virtually eliminated. The re-circulation system of X-Vac hydro trucks keeps heated water moving continuously to prevent freezing in cold temperatures. X-Vac’s Hydro Excavator Trucks are precision-engineered so that air and water volumes can be independently controlled to provide the ideal mix for any application.

Debris Tank Capacity
12 cu yd
Water Tank Capacity
1,140 Gallons
Blower Performance
27" Hg, 5,250 CFM

FEATURES & HIGHLIGHTS

FOCUSED ON WHAT MATTERS

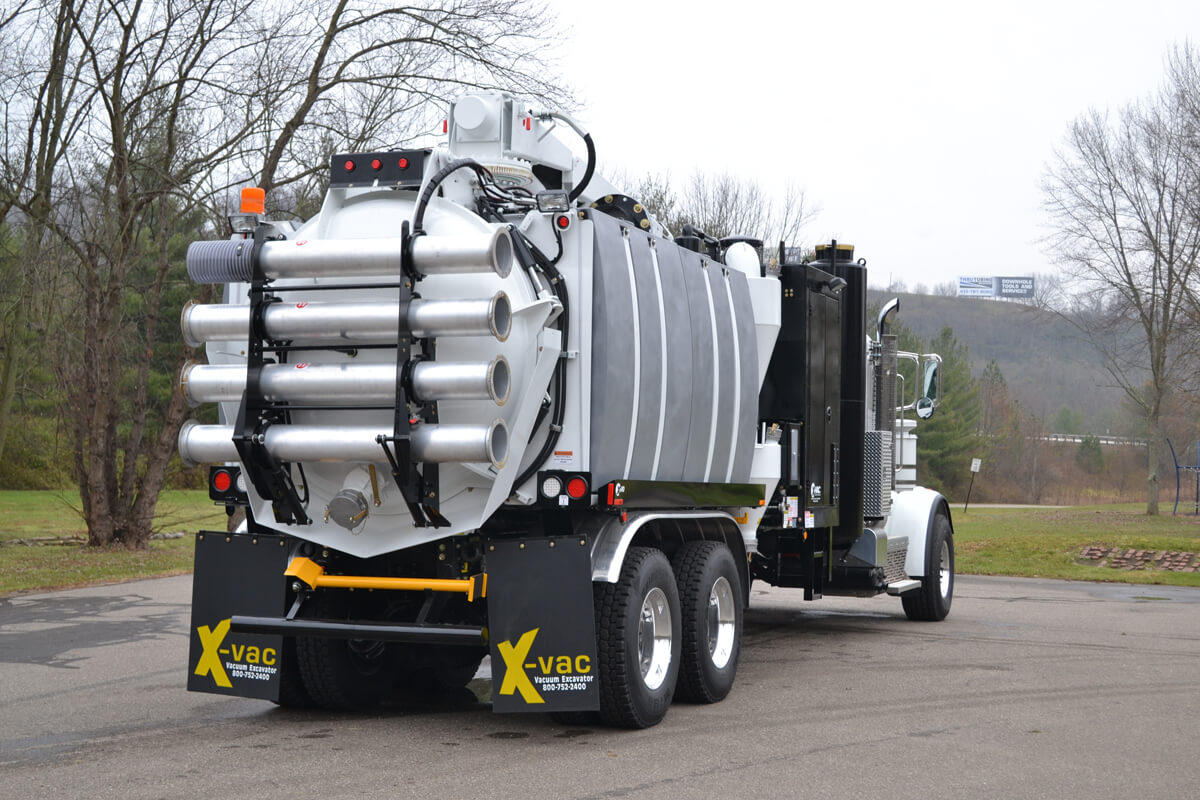

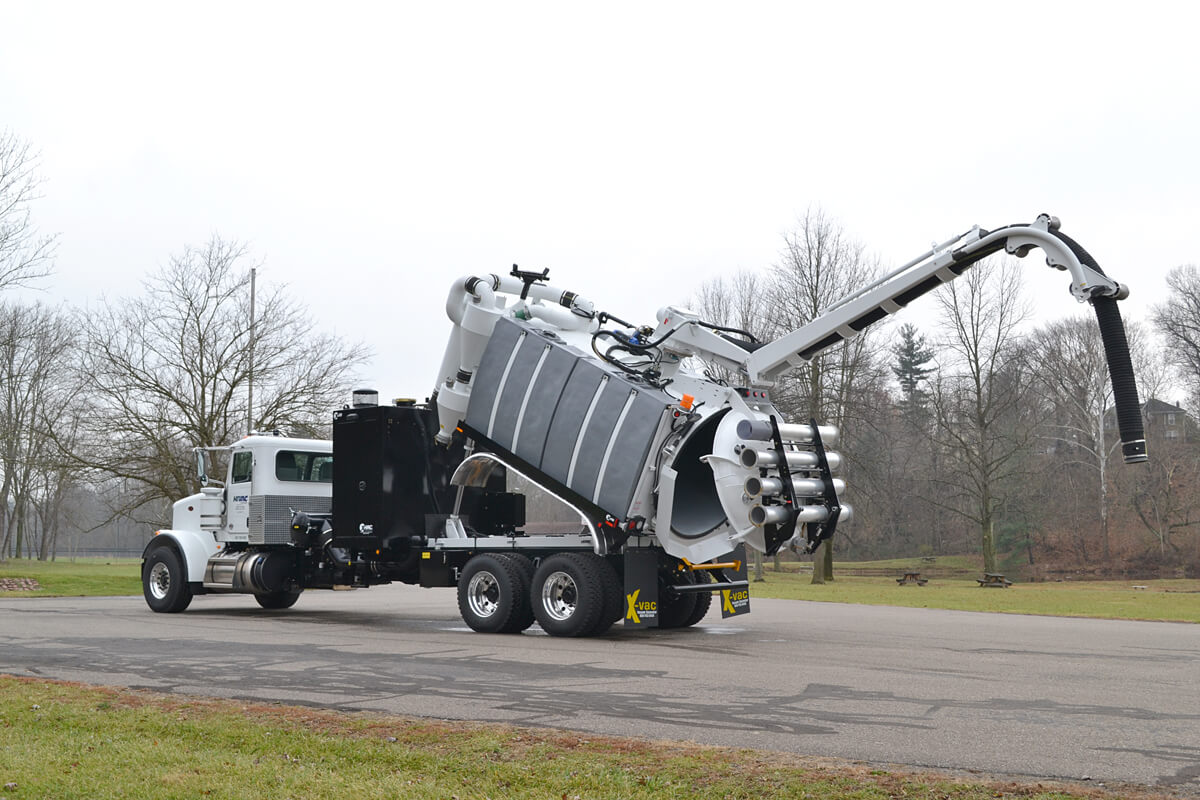

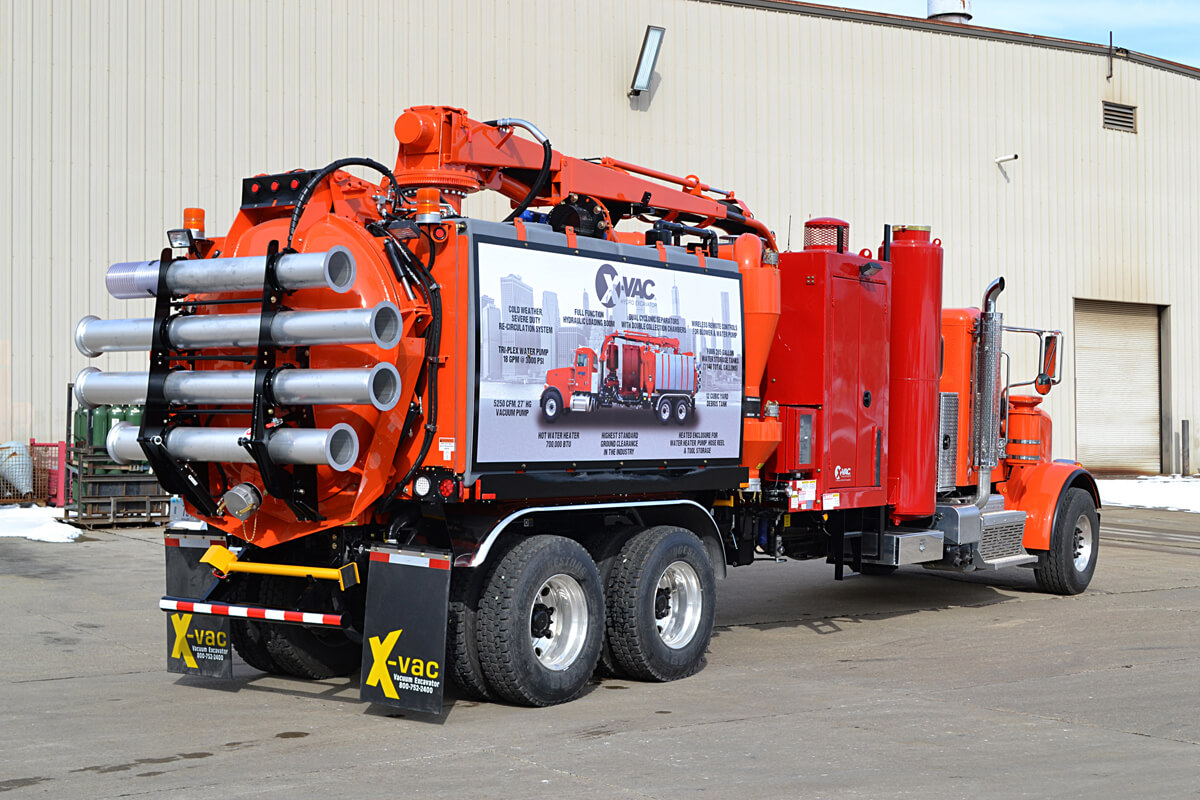

The X-12 Hydro Trucks reduce labor costs as only one or two technicians are required. These hydro excavating systems feature a low-profile debris tank that provides lower center of gravity. The rear door opens fully for easy clean-out of the excavating equipment. The X-12 features dual cyclone separators each with a material drop-out box for efficient material separation from the air stream. All boom hydraulic functions can be operated by remote control. The Hydro Excavation Truck’s vacuum producer and water pump are independently controlled. The X-12 offers minimal breakdowns and less downtime due to high quality construction and components.

SPECIFICATIONS

X-VAC X-12 HYDRO EXCAVATOR AT A GLANCE

  • Manufacturer:

  • Class:

    Hydro Excavator

  • Power Source:

  • Country of Origin:

  • Blower Performance:

    27" Hg, 5,250 CFM

  • Boom Articulation:

    360 Degrees

  • Water Pump Performance:

    3,000 psi @ 20 GPM

  • Debris Tank Capacity:

  • Water Tank Capacity:

    1,140 Gallons

  • Build:

    Chassis-Mounted

  • *Exact specs may change without notice, or vary based on optional add-ons and features.

    X-VAC X-12 BENEFITS

    TO MAKE YOUR LIFE EASIER

    • Industry’s highest standard ground clearance
    • Ideal for oilfield and construction work
    • Rear-mounted sludge pump
    • Dual cyclonic separators
    • Lifetime warranty on water tanks and debris body

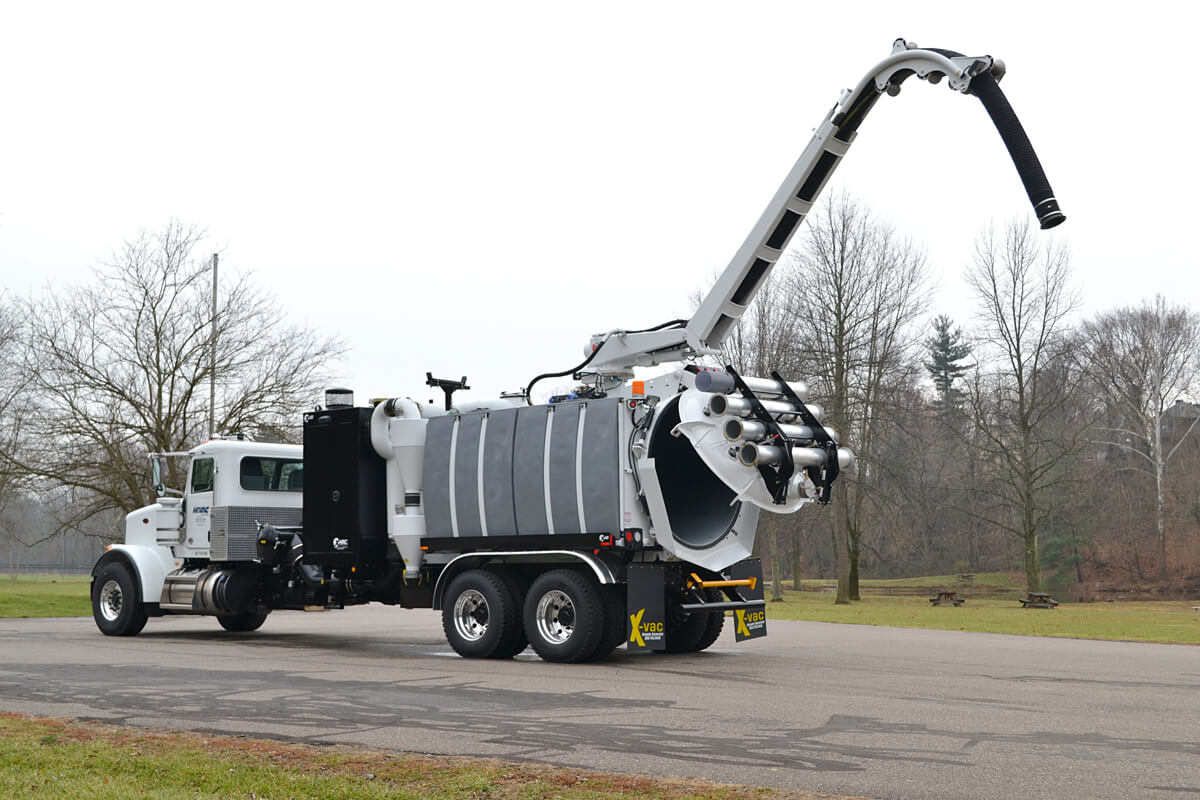

    • Reach-anywhere 360° top-loading boom
    • Insulated and heated enclosure for water pump, hoses reel and tool storage
    • 400,000 BTU or 700,000 BTU boiler (Optional)
    • 200 CFM 200 psi air compressor for air excavation (Optional)


    DOCUMENTS

    FOR THE X-VAC X-12 HYDRO EXCAVATOR

    Additional information

    Manufacturer

    Class

    Hydro Excavator

    Power Source

    Country of Origin

    Blower Performance

    27" Hg, 5,250 CFM

    Boom Articulation

    360 Degrees

    Water Pump Performance

    3,000 psi @ 20 GPM

    Debris Tank Capacity

    Water Tank Capacity

    1,140 Gallons

    Build

    Chassis-Mounted
