Harben Van Pack Jetters

The Harben Van Pack range of jetters is very versatile and can be supplied in varying forms depending on the enclosure type and the vehicle.

Water Tank Capacity
110 Gallons, 220 Gallons
Power Source
Diesel
CHOOSE A VAN PACK JETTER:

SPECIFICATIONS

HARBEN VAN PACK JETTERS AT A GLANCE

  • Manufacturer:

  • Class:

  • Power Source:

  • Country of Origin:

  • Hose Length:

    300 ft

  • Pressure Pump:

    3,000 psi @ 12 GPM

  • Water Tank Capacity:

    110 Gallons, 220 Gallons

  • Build:

    Purpose-Built

  • *Exact specs may change without notice, or vary based on optional add-ons and features.

    *Exact specs may change without notice, or vary based on optional add-ons and features.


    FEATURES & HIGHLIGHTS | 115 VAN PACK

    FOCUSED ON WHAT MATTERS

    The latest addition to Harben’s range, 115 Van Pack, has all the benefits of a full size jetter in a compact frame, suitable for cleaning drains from 1″ to 12″ in diameter. The 115 Van Pack incorporates the XLTI Series triplex plunger pump, producing up to 3000 psi and up to 10 gpm. Being compact, the 115 Van Pack will fit into vans with a cargo height of 61″. The lightweight steel frame keeps the weight down allowing you to carry extra work tools. The XLTI Series triplex pump is covered by a 1 year warranty.

    HARBEN 115 VAN PACK BENEFITS

    TO MAKE YOUR LIFE EASIER

  • XLTI 3325 pump
  • Standard 1 year pump warranty
  • Pressure and flows up to 3000 psi and up to 10 gpm
  • Honda GX690 22hp air cooled engine
  • 120° Pivoting hose reel
  • Powder coated single skid frame
  • Dry shut system
  • 120 gallon water tank capacity (option to upgrade to 240 gallon)
  • STANDARD EQUIPMENT & ACCESSORIES

    FOR THE HARBEN 115 VAN PACK

  • 3/8″ X 300′ Jetting hose
  • 3/8″ X 10′ Orange leader hose
  • 3/8″ Ball jet – 4r
  • 3/8″ Standard drain nozzle – 3r1f
  • 3/8″ Chisel point nozzle – 4f4r
  • Pelican nozzle case
  • 2″ Tiger Tail hose protector
  • Pressure relief valve
  • Anti-freeze system
  • Garden hose reel
  • Heavy duty battery
  • Plastic drip tray
  • Emergency stop
  • Safety relief valve
  • Unloader valve
  • Manuals – operation and maintenance
  • Training during installation
  • ADDITIONAL OPTIONS

    FOR THE HARBEN 115 VAN PACK

  • Warthog WT-3/8″ nozzle
  • Mini jet kit
  • MKII dump gun (Wash-down gun)
  • Jet pump
  • Handheld spotlight
  • Wide range of nozzles & accessories

  • FEATURES & HIGHLIGHTS | ELIMINATOR VAN PACK

    FOCUSED ON WHAT MATTERS

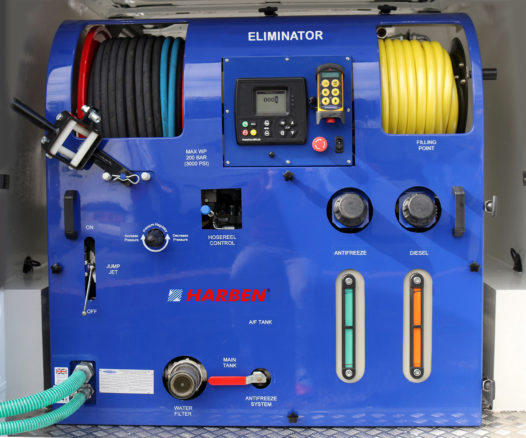

    The Eliminator is the latest unit in Harben’s range of super compact van packs powered by a state of the art low emission diesel engine capable of delivering 3000 psi at up to 12gpm from its triplex plunger pump. Although it has enough jetting performance to work efficiently in drains up to 12″ diameter the Eliminator is only 50″ long, 47″ high and 48″ wide, weighing in at just 1,960lbs with its 110 gallon water tank full. All the moving parts on the Eliminator are covered by a specially designed lightweight canopy giving a professional clean look, reducing noise levels and improving safety. A 300ft capacity hydraulic hose reel complete with speed control, a filling hose, jump jet, antifreeze tank and pressure control valve are all included in the fully loaded spec. However, unbelievably the Eliminator standard equipment includes a full 7 channel wireless remote able to control starting and stopping the engine and high pressure water as well as engine rpm and rapid safety shut down.

    HARBEN ELIMINATOR VAN PACK BENEFITS

    TO MAKE YOUR LIFE EASIER

  • Triplex plunger pump
  • Kubota 25hp T4F diesel engine
  • Pressure and flows up to 3000 psi and up to 12 gpm
  • Cleans drains up to 12″ diameter
  • Anti-freeze tank
  • 7 Channel remote control
  • Enclosed canopy frame
  • 110 Gallon water tank capacity (option to upgrade to 220 gallon)
  • Standard 1 year pump warranty
  • STANDARD EQUIPMENT & ACCESSORIES

    FOR THE HARBEN ELIMINATOR VAN PACK

  • ½” X 300′ Jetting hose
  • ½” X 10′ Orange leader hose
  • Hydraulic powered hose reel
  • Reel speed control
  • Jump jet pulsation system
  • Wireless remote control
  • Anti-freeze recirculation system
  • 2 x High efficiency drain nozzles
  • Manuals – operation and maintenance
  • Training during installation
  • ADDITIONAL OPTIONS

    FOR THE HARBEN ELIMINATOR VAN PACK

  • ¼” & 3/8″ Lateral kits
  • MKII dump gun (Wash-down gun)
  • Foot control valve
  • Various nozzles for different applications

  • FEATURES & HIGHLIGHTS | US 4018 VPK VAN PACK

    FOCUSED ON WHAT MATTERS

    The new Harben® Van Pack has all the benefits of a full size jetter capable of cleaning drains up to 18” in diameter but in a compact frame suitable for mounting into enclosed vans and trucks. It is fitted with the latest low emission 50hp diesel engine giving even more clean power and certified for use across the country. The US 4018 VPK incorporates the Harben® ‘P’ type pump, with its unique 5 year warranty and optional Jump Jet, delivering up to 4,000 psi and up to 18 gpm. It is compact at only 80” long, 60” high and 55” wide and it has an integral 100 gallon water tank with additional water capacity available as an option. The lightweight folded steel frame keeps the total loaded weight to 2500 lbs allowing you to carry extra work tools when necessary. The hydraulic hose reel can hold up to 500ft of ½” jetting hose and it has a speed control valve which allows the operator to precisely adjust the rate at which the hose is retracted from the drain ensuring that 100% of the debris can be safely removed every time. You can choose to customise your unit with build options and accessories including a 7 channel wireless remote and a vast range of drain nozzles.

    HARBEN US 4018 VPK VAN PACK BENEFITS

    TO MAKE YOUR LIFE EASIER

  • Proven Harben® build quality
  • Standard 5 year pump warranty
  • 4000psi and 18gpm flow
  • Powerful Kubota T4F engine
  • Hydraulic hose reel with feed guide
  • Heavy duty steel frame
  • Cleans drains up to 18″ diameter
  • 12v Auxiliary outlet
  • Low maintenance cost
  • STANDARD EQUIPMENT & ACCESSORIES

    FOR THE HARBEN US 4018 VPK VAN PACK

  • ½” X 500′ Jetting hose
  • ½” X 10′ Orange leader hose
  • Hydraulic powered hose reel
  • Anti-freeze recirculation system
  • 2 x High efficiency drain nozzles
  • Manuals – operation and maintenance
  • Training during installation
  • ADDITIONAL OPTIONS

    FOR THE HARBEN US 4018 VPK VAN PACK

  • Wireless remote control
  • Jump jet pulsation system
  • ¼” & 3/8″ Lateral kits
  • MKII dump gun (Wash-down gun)
  • Foot control valve
  • Various nozzles for different applications

  • DOCUMENTS

    FOR THE HARBEN VAN PACK JETTERS

    Additional information

    Manufacturer

    Class

    Power Source

    Country of Origin

    Hose Length

    300 ft

    Pressure Pump

    3,000 psi @ 12 GPM

    Water Tank Capacity

    110 Gallons, 220 Gallons

    Build

    Purpose-Built
