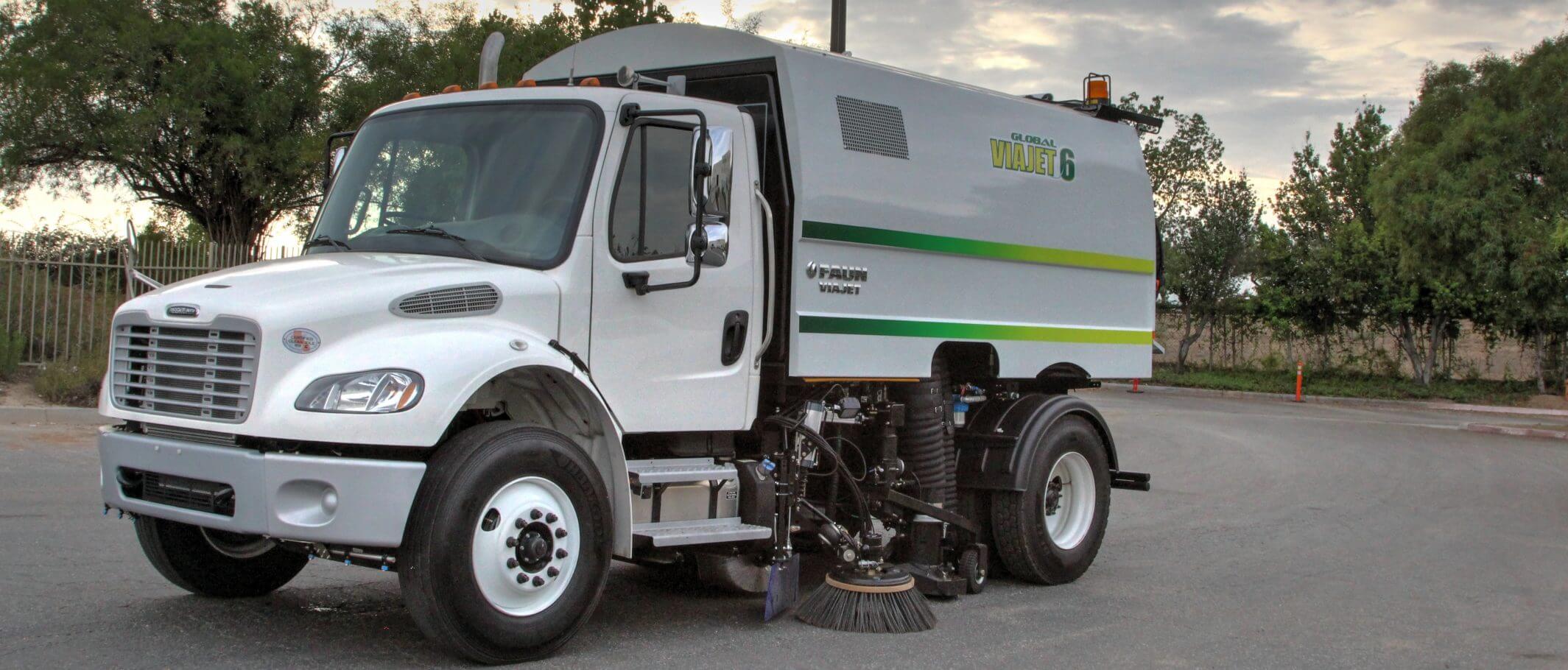

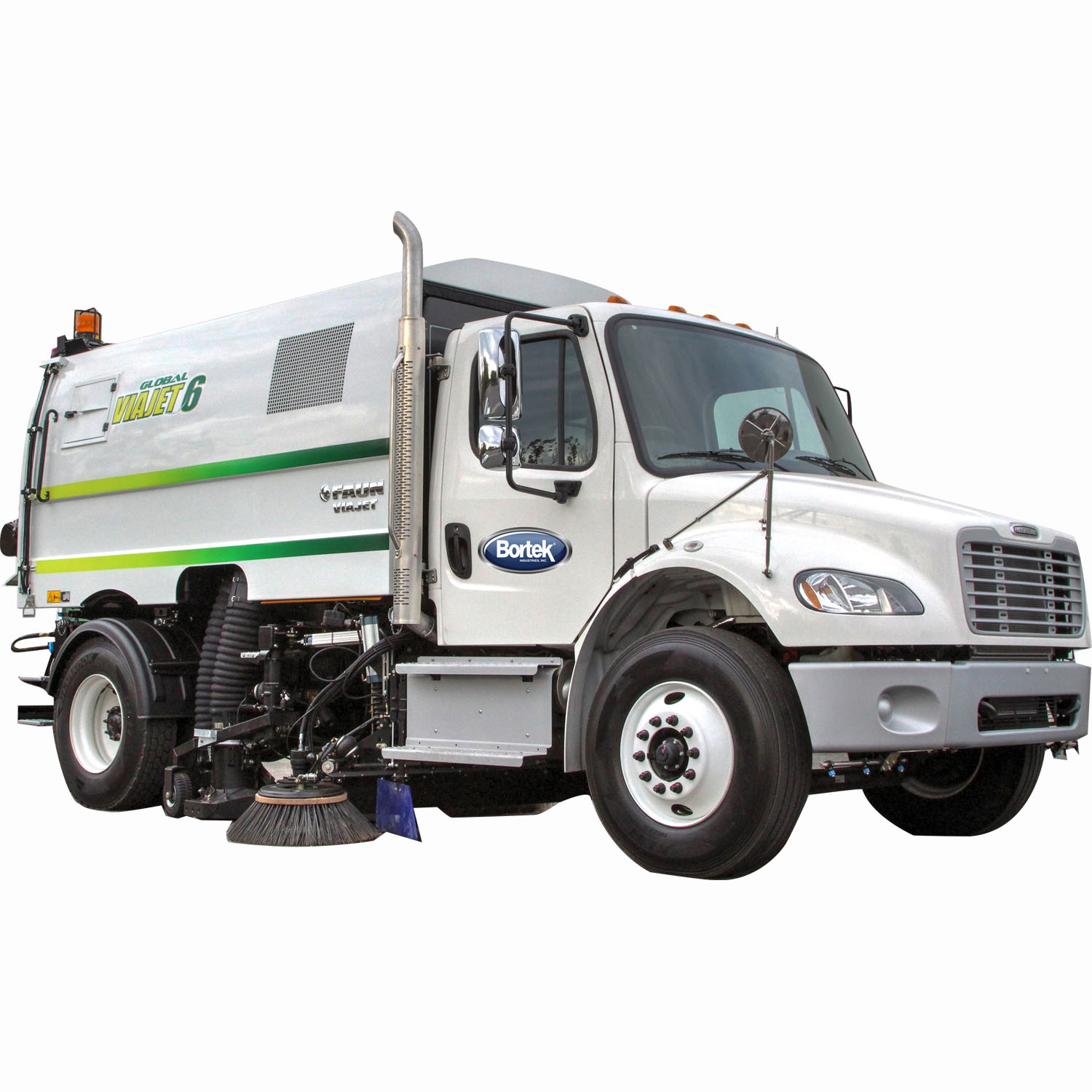

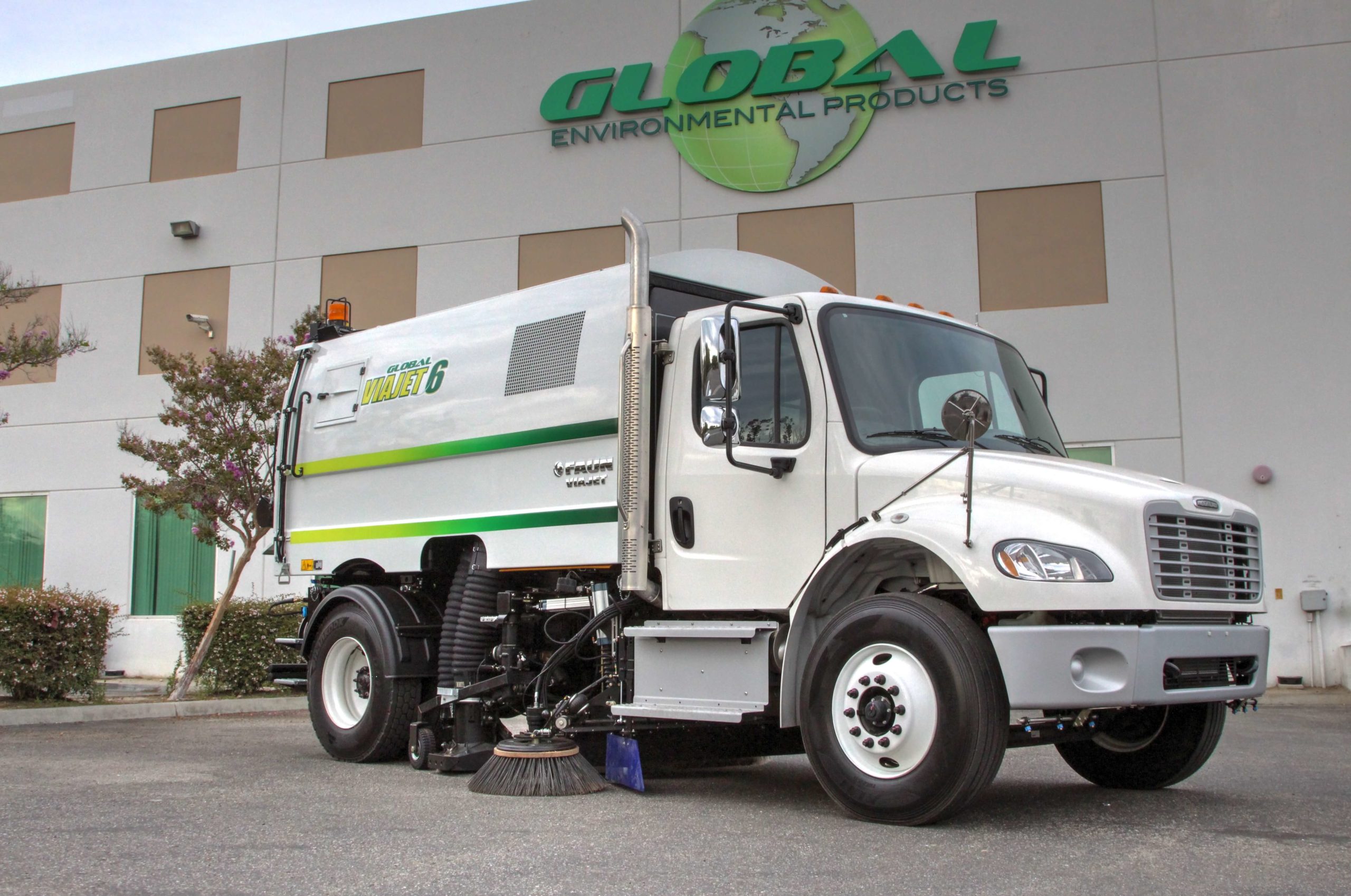

The Global Viajet 6 Street Sweeper comes with an air recycling system that constantly recirculates air from the sweeper into the suction box. Depending on the scenario, the recycled air volume can be adjusted with a lever between 30% to 70%. It also comes with an inclined suction fan that provides exceptional volume flow and improved suction power. The twin tank solution can hold up to 500 gallons of water with the primary tank on the sub frame and the secondary tank between the fan and the cab.
The Global Viajet 6 Air Recycling System
Air recycling system constantly recirculates the air from the sweeper to the suction box. Only a small percentage of the air passes into the atmosphere. Depending on the operational scenario, the recycled air volume can be adjusted in between 30% – 70%. All the adjustments can be completed by the operator by adjusting a lever.
The fine dust emission from a Global V6 by Faun sweeper is 50% less than that of purely suction concepts. No dirty air is expelled into the working area at the rear and around the sweeping machine. Additional street cleaning is achieved by adding water to the recycled air. In winter the Global Viajet 6 Street Sweeper can operate in temperatures as low as 23 °F, due to the circulating air in the system being warmed to about 59 °F, thus preventing the water in the suction shaft and hopper from freezing.
All Comes Down To Power of Sweeping

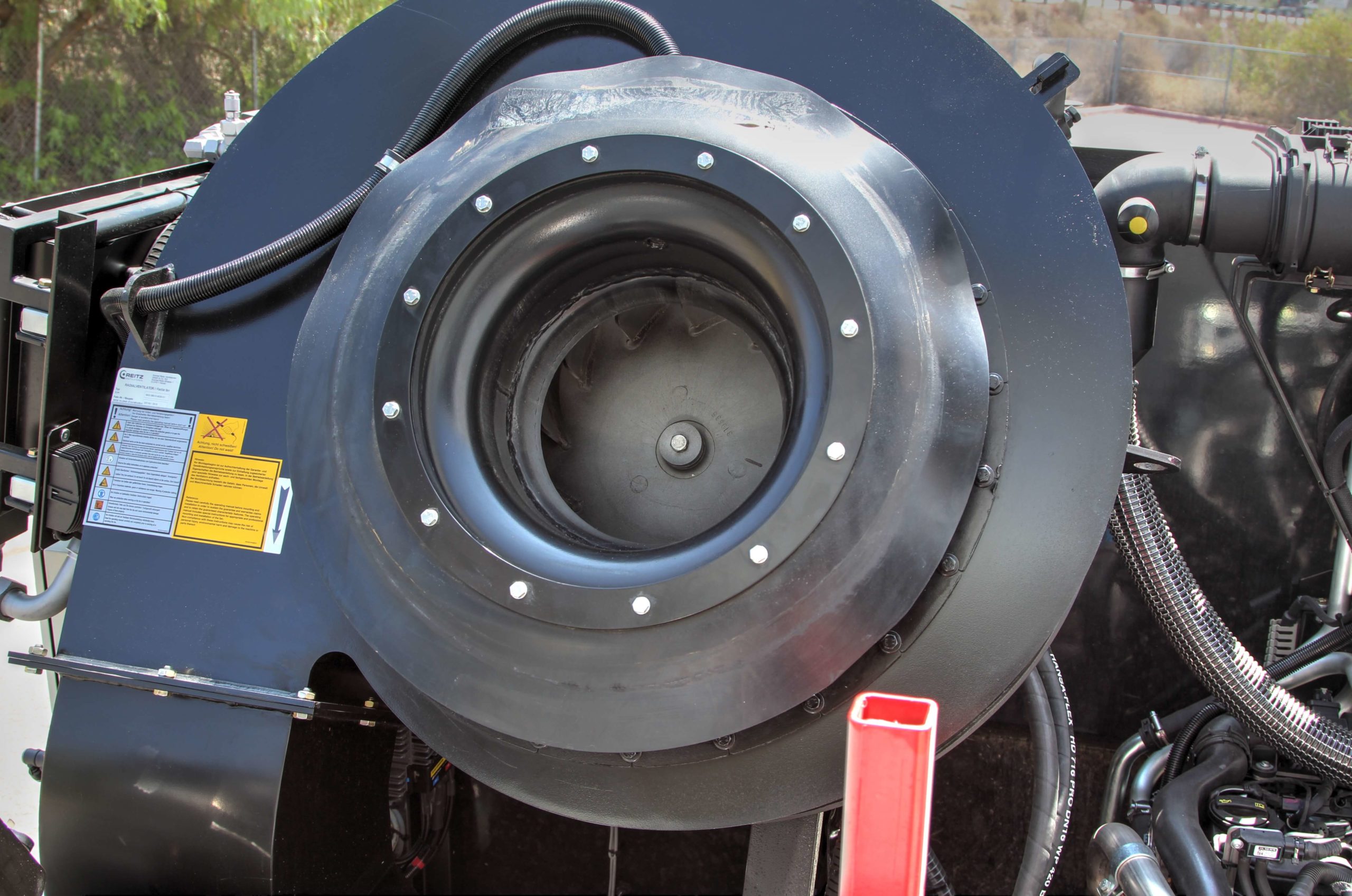

Inclined suction fan provides optimum volume flow and improved suction power.

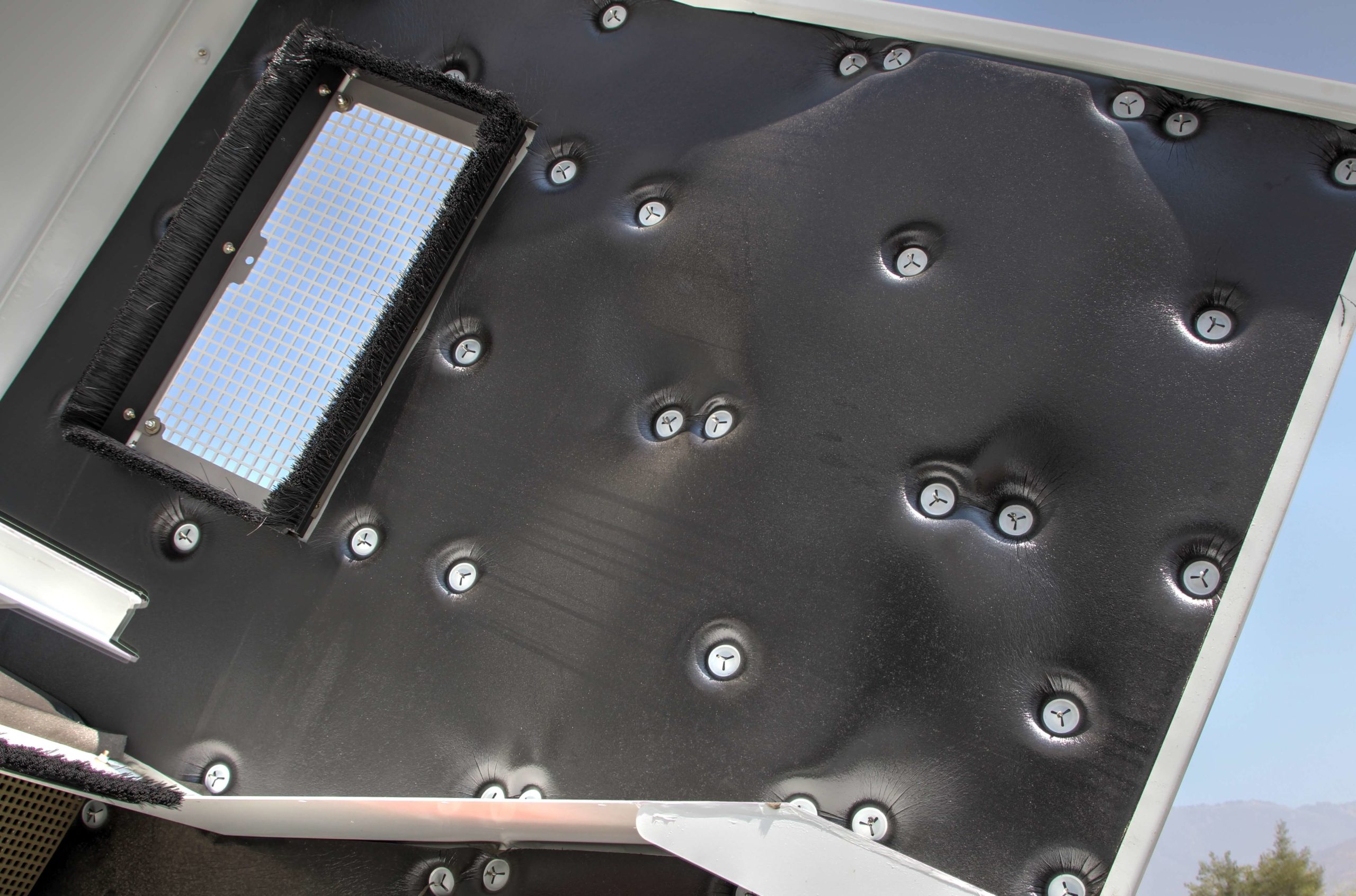

“Silent Plus” option means highly effective noise reduction by up to 99 dB(A) on the engine and fan system.
Increased Water Capacity – Sweep All Day

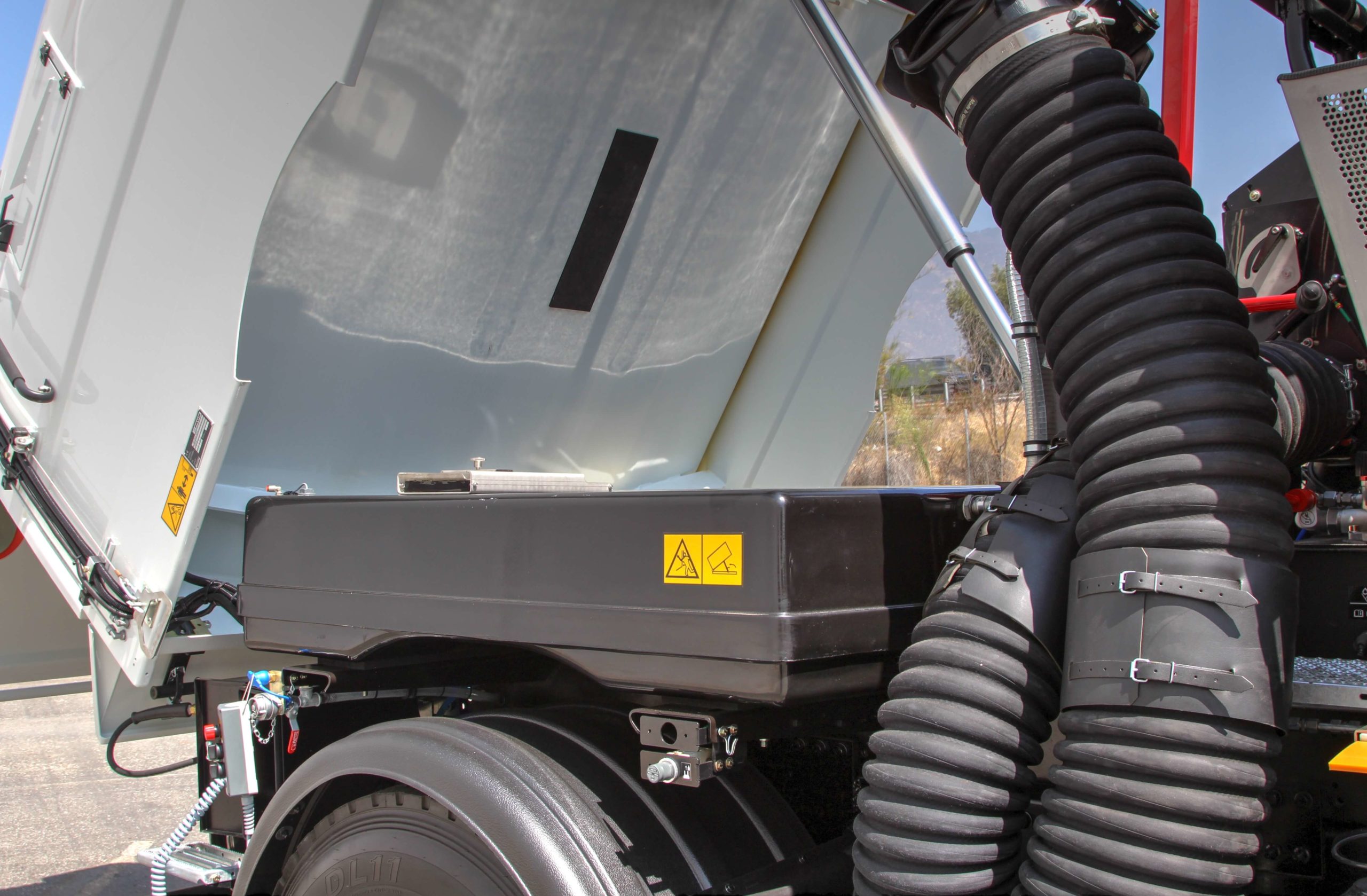

Twin tank solution provides for a total tank volume of 500 gallons of water. The primary fiber glass tank is fixed directly onto the sub frame under the hopper. The secondary tank, also made of fiber glass, is mounted in between fan and cab, providing additional noise protection.

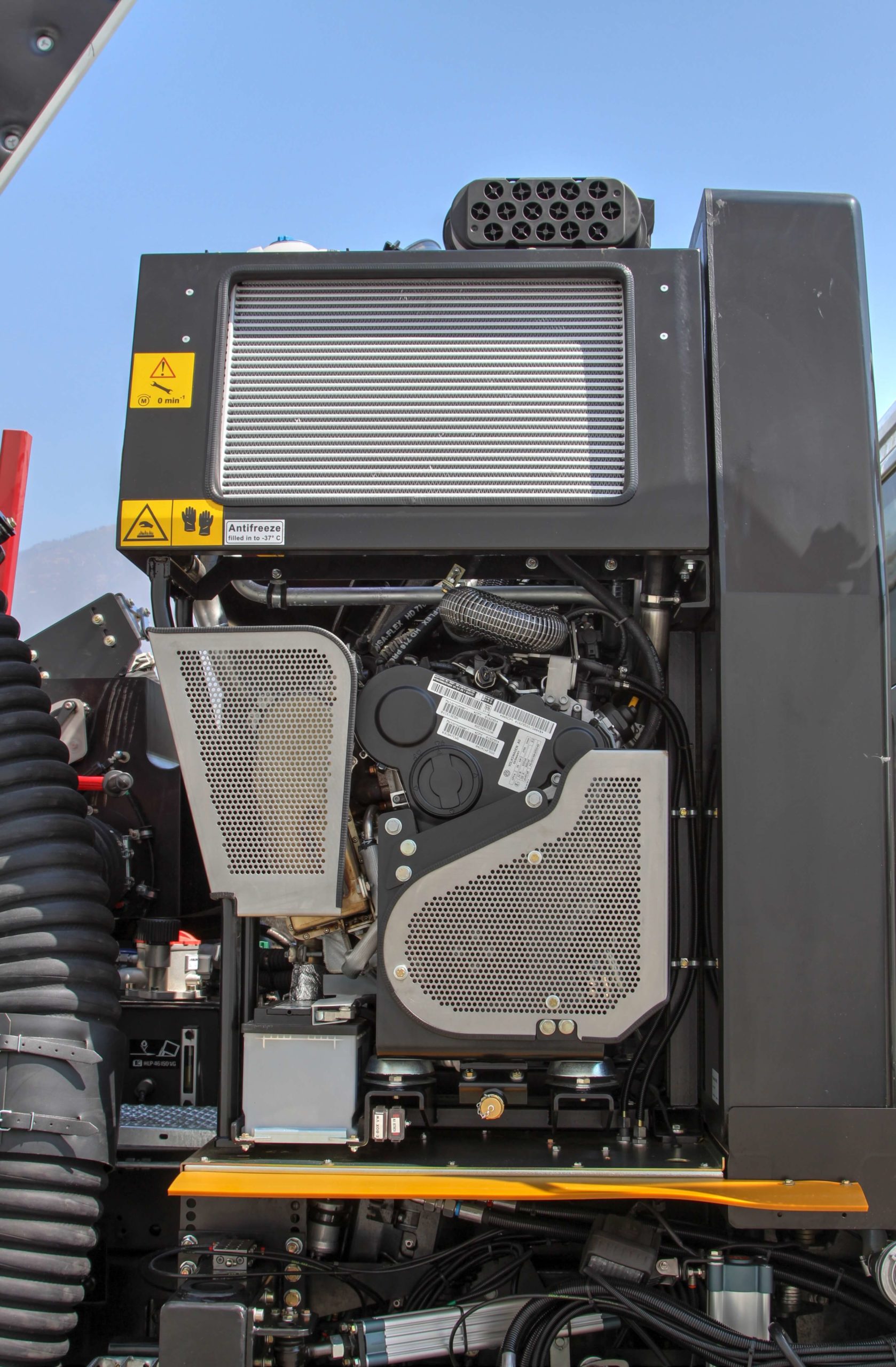

Modern Drive Concept
The Global Viajet 6 Street Sweeper incorporates many years of experience and success to draw on with the three basic types of drive. Depending on the operational area of the sweeper, the customer can choose between different drive concepts.

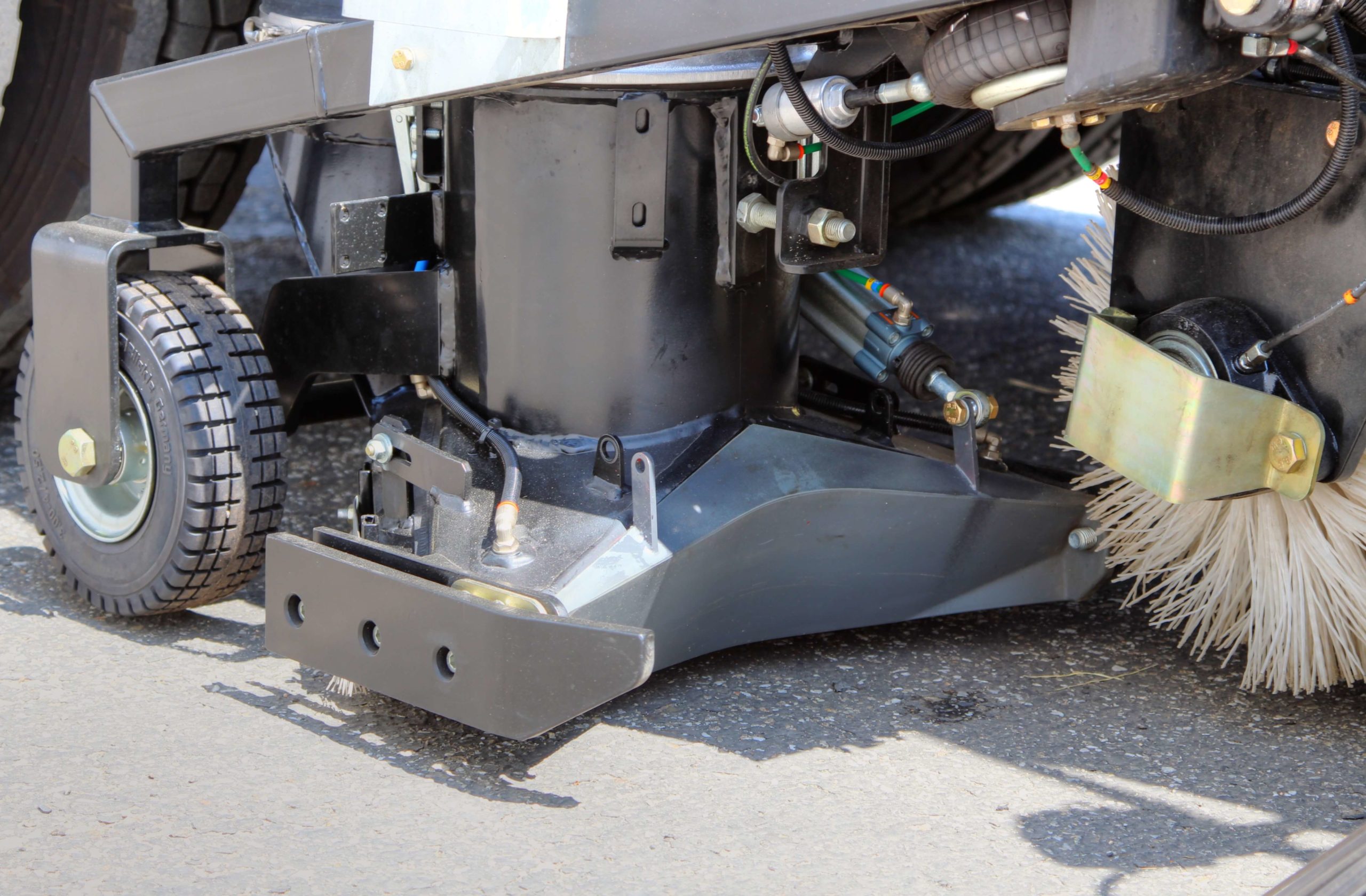

V-nozzle To Sweep It All

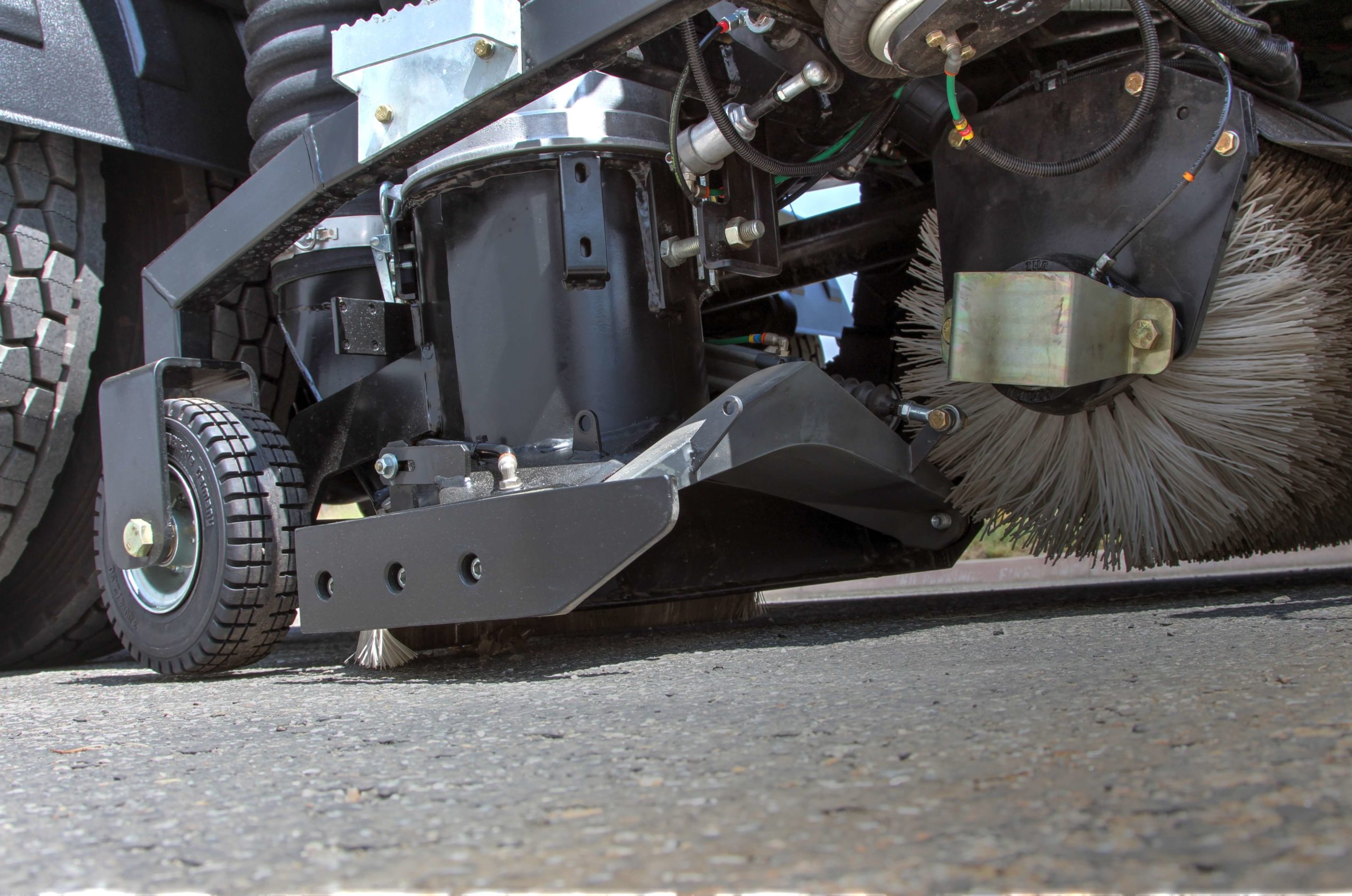

The V-shaped suction nozzle with its large aperture, made of 4 mm steel, conveys the swept material directly into the suction pipe. Even in difficult conditions, heavy material will be completely picked up.
Everything At a Glance

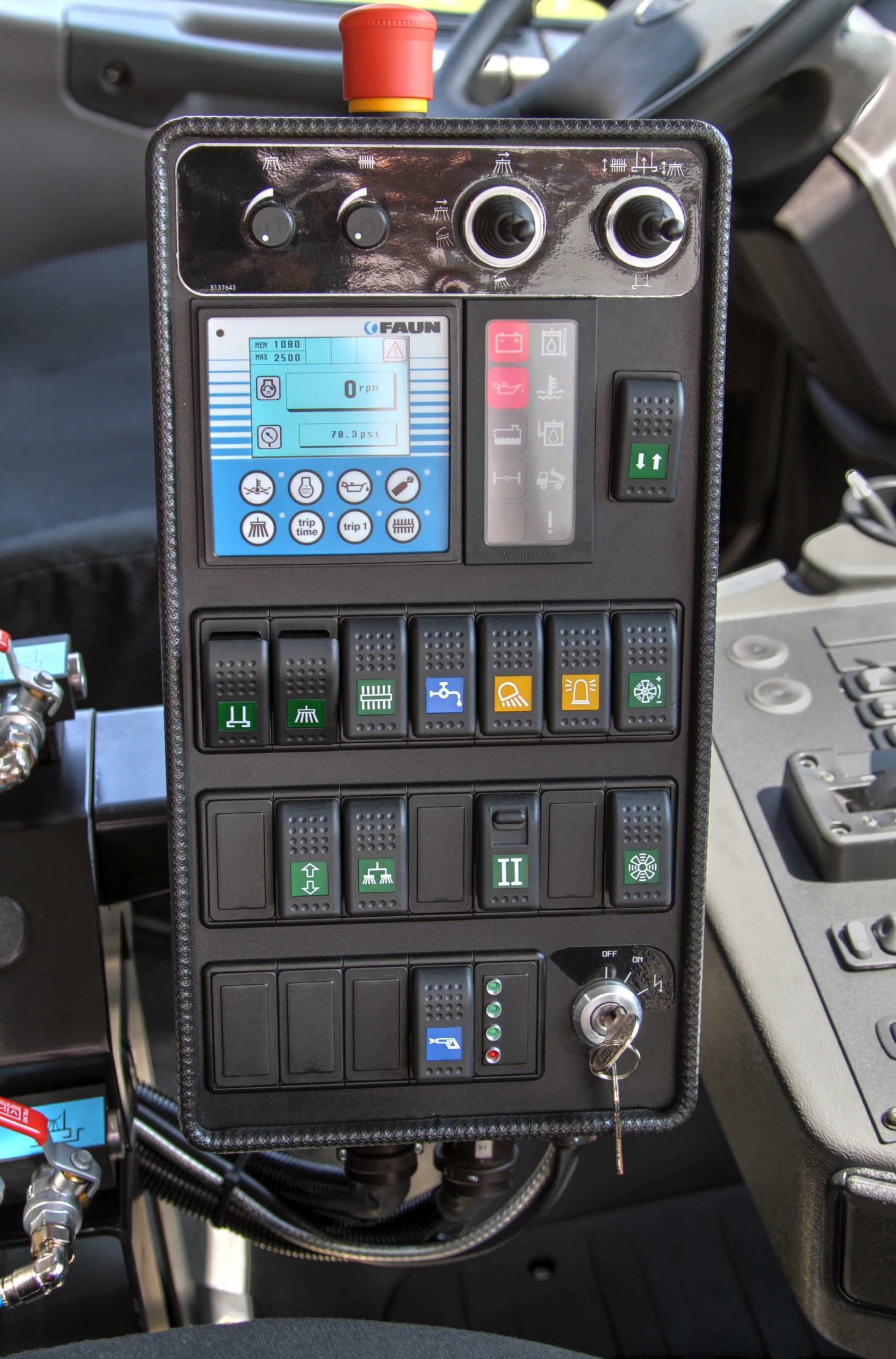

A central operating panel provides easy access to all the functions, showing the driver all important information.

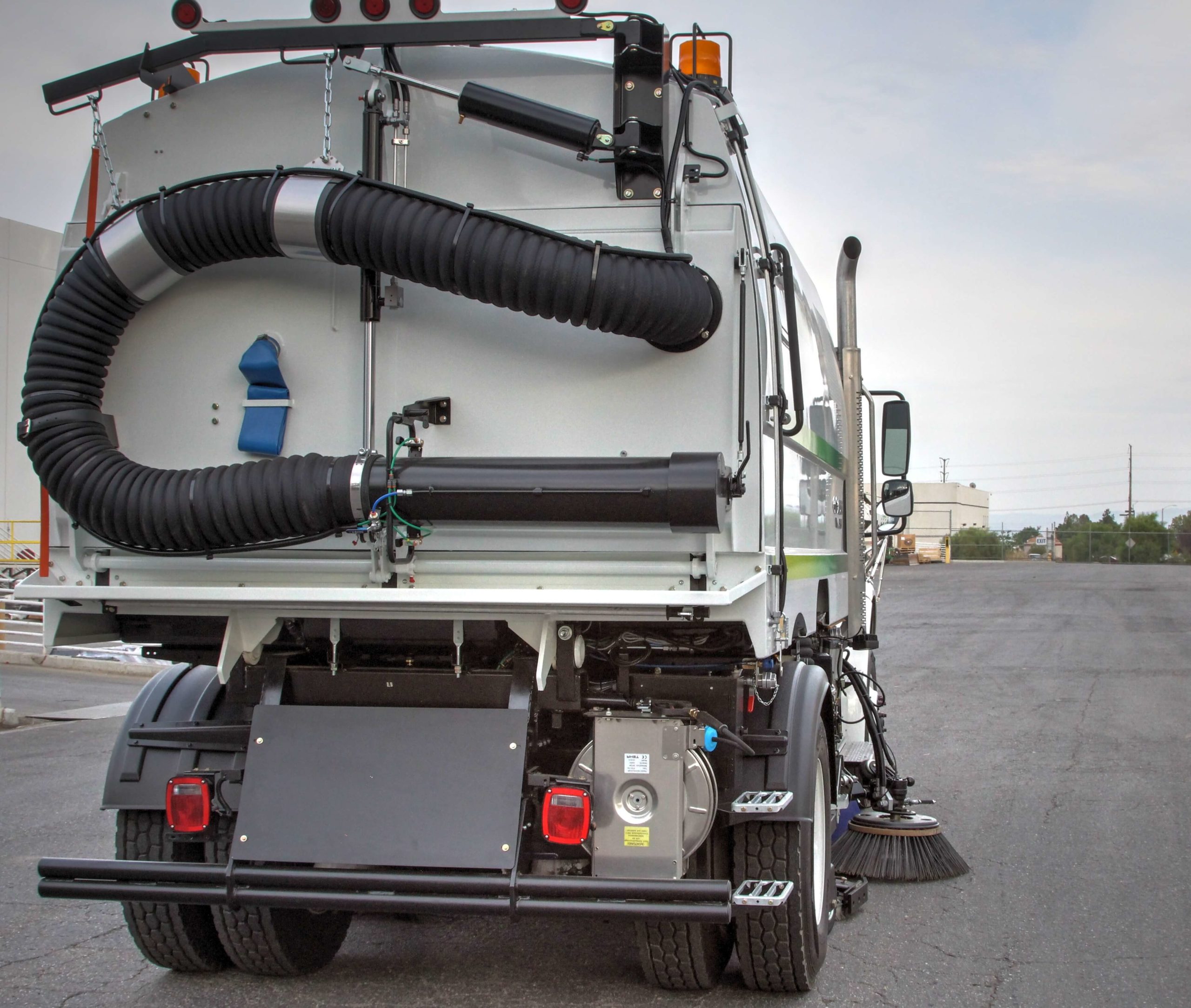

Wander Hose With Pneumatic Support
The robust rear-mounted suction system provides the tried and trusted functions, as well as additional uses, such as emptying gullies and waste bins. With the pneumatically support carrier arm, the suction system can be moved effortlessly through the entire working area range, with adjustable operating height.

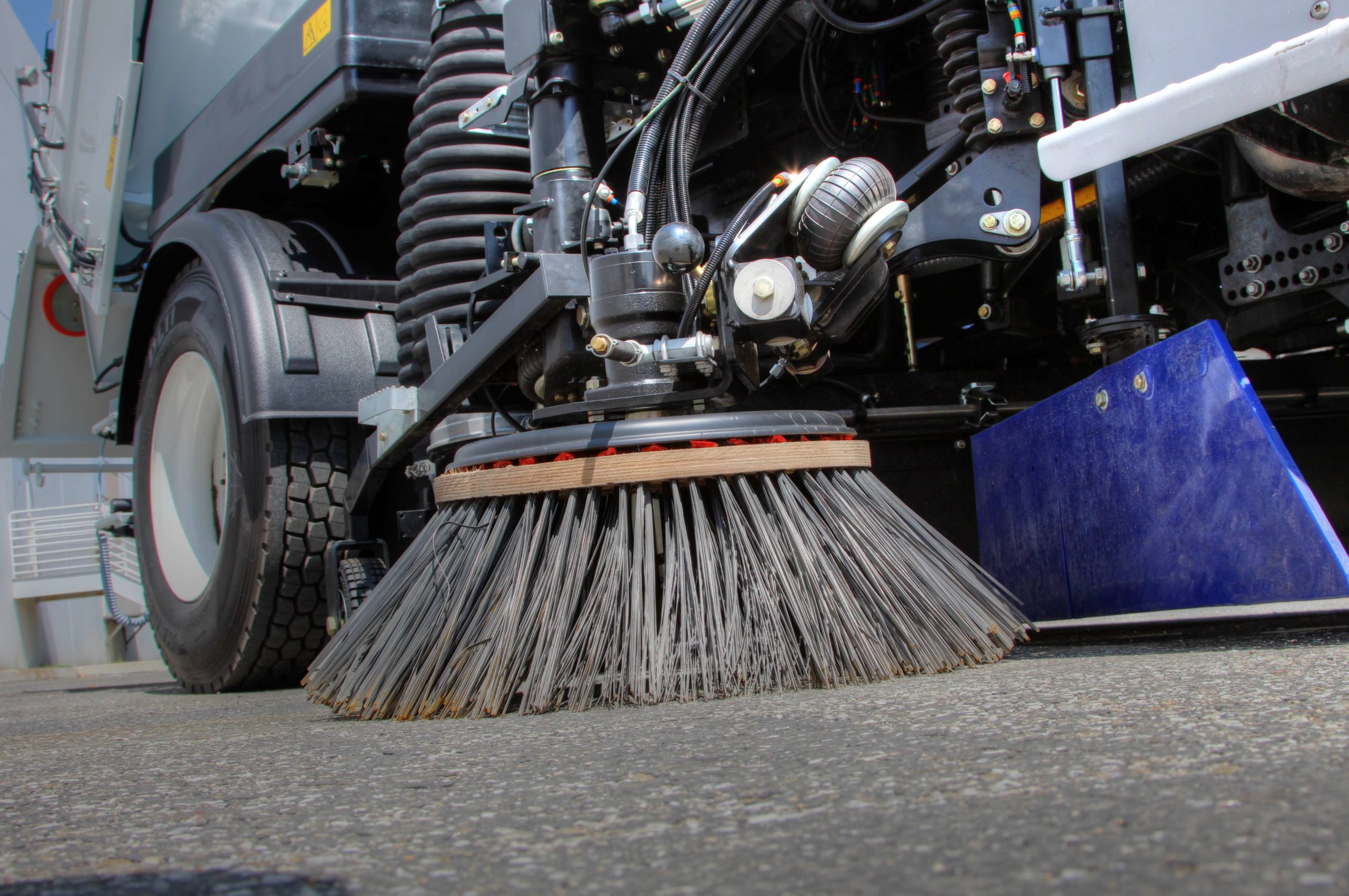

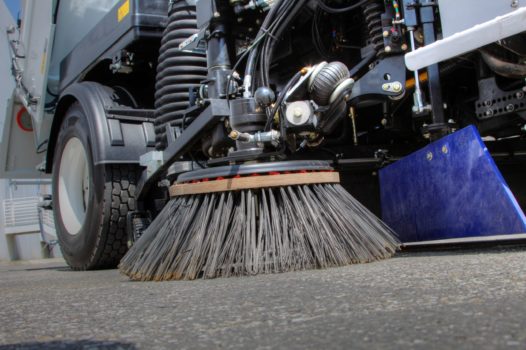

The channel brush is mounted as a trailed brush and suspended separately from the suction nozzle. It is equipped with lateral shock absorbing device and ground pressure adjustment in order to pick up even heavy dirt off the road surface. Using the pneumatically controlled adjustment of the lateral inclination the brush is offering the best possible performance in every working condition.

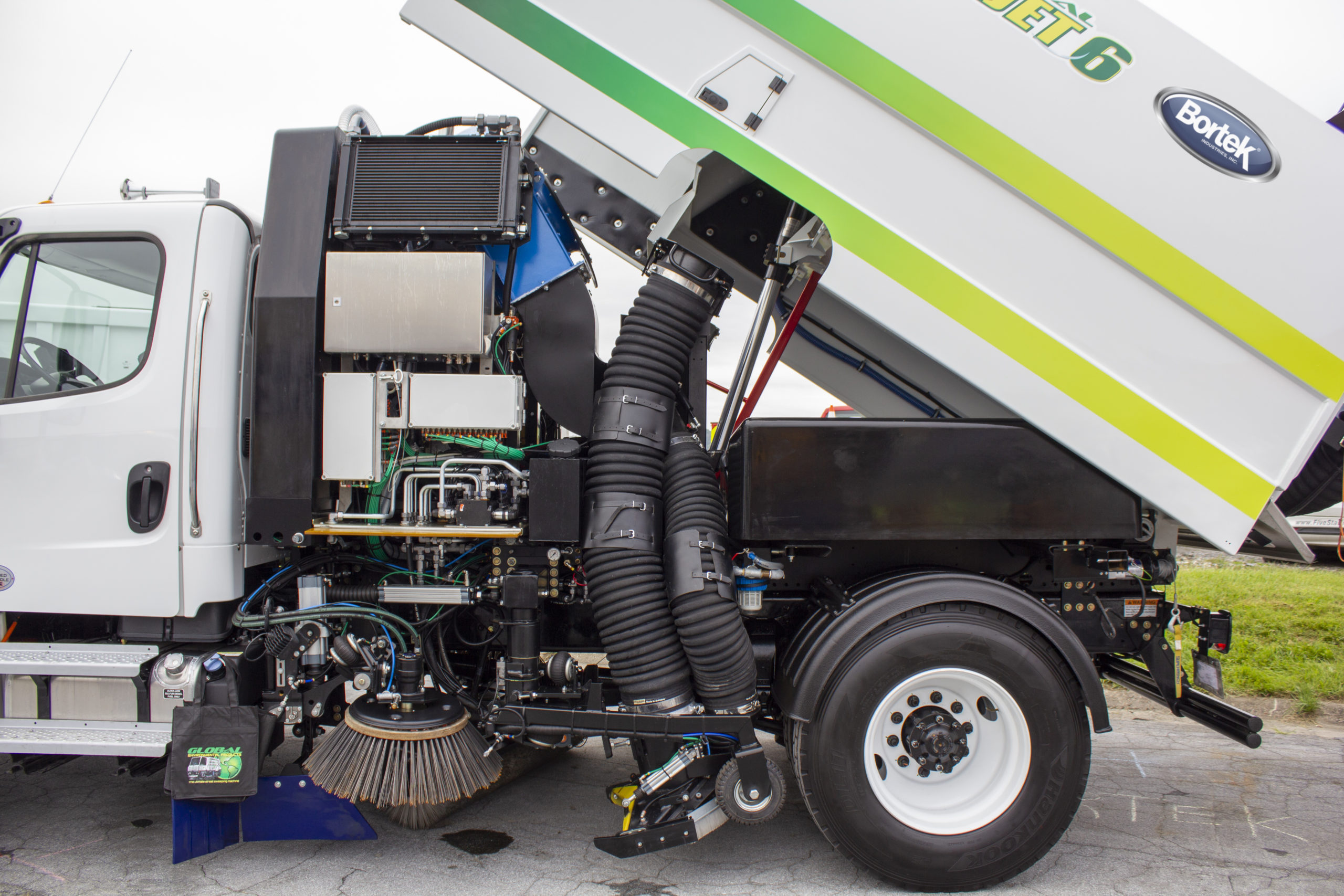

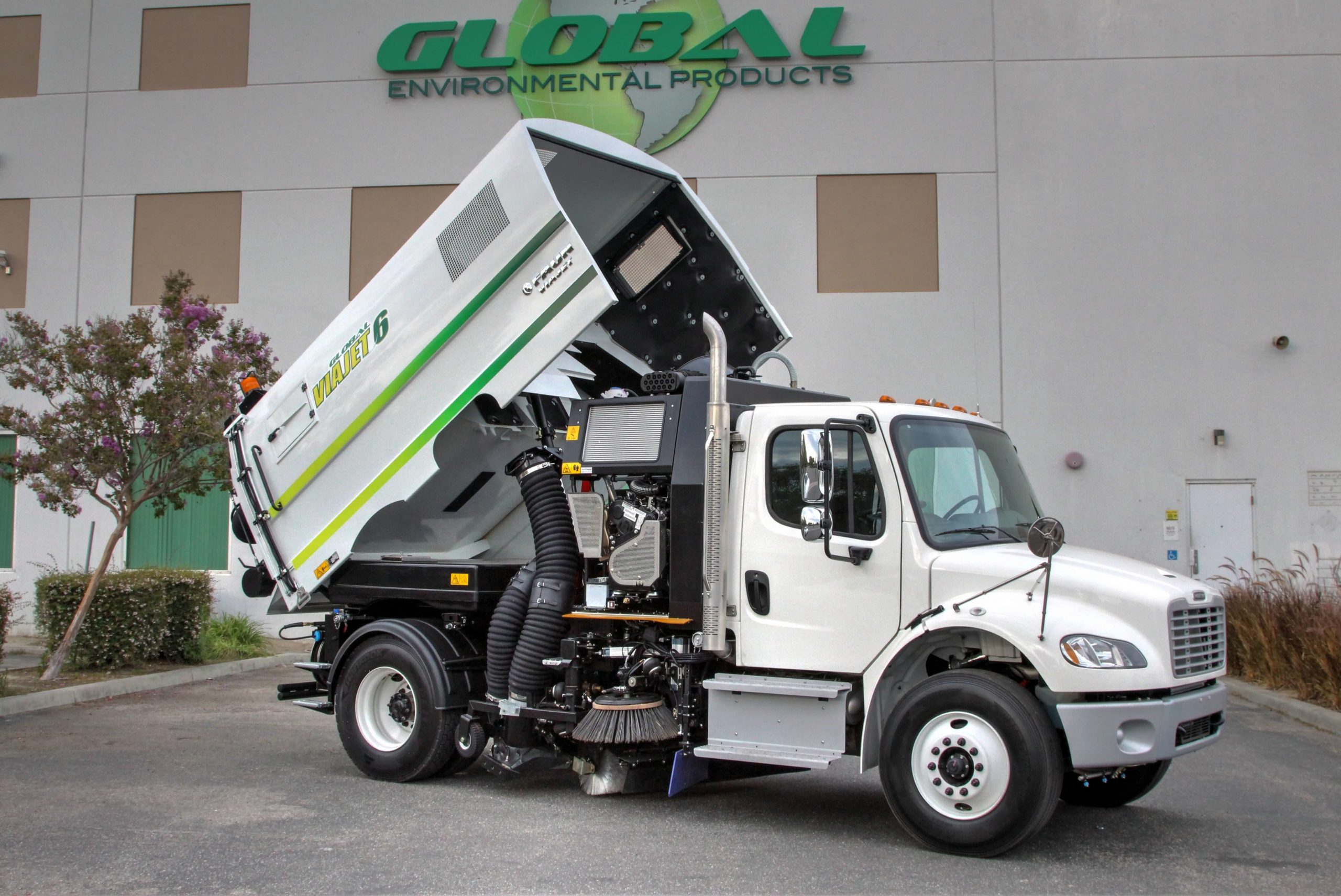

Quality For Long Service Life

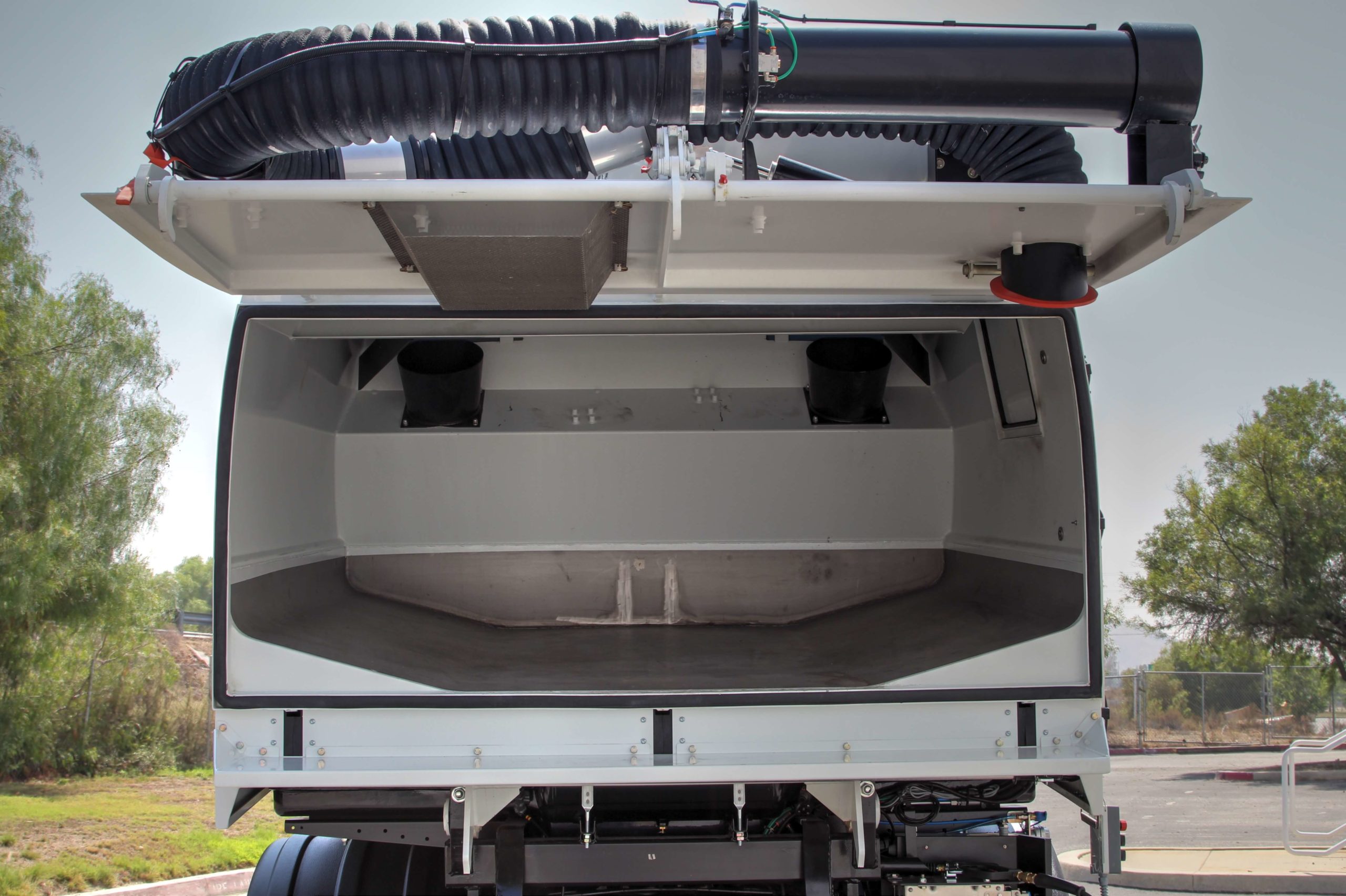

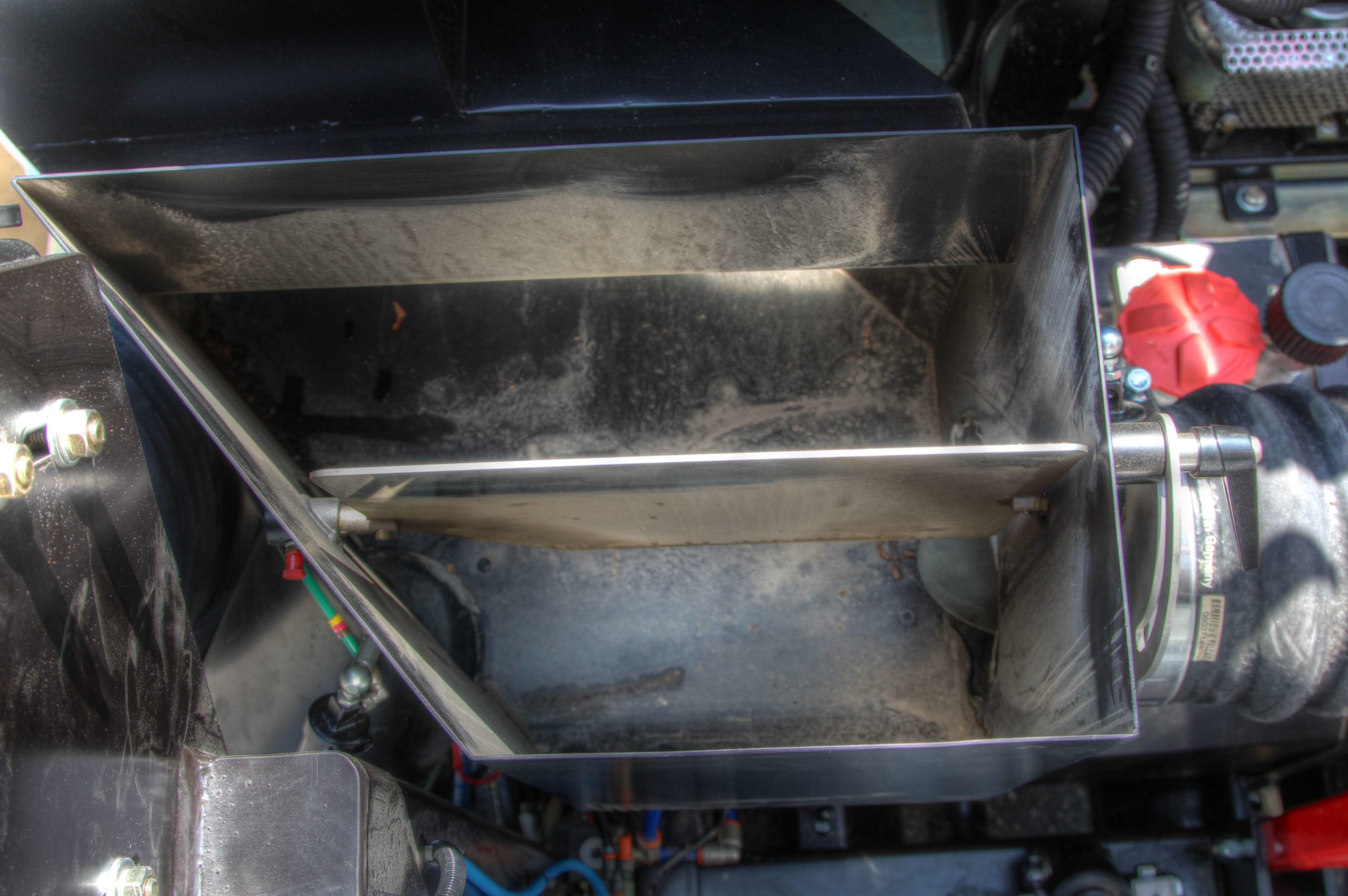

High quality materials (bottom pan made of Stainless Steel) and very smooth inner walls provide easy emptying and an extended service life.
Central Switching Unit

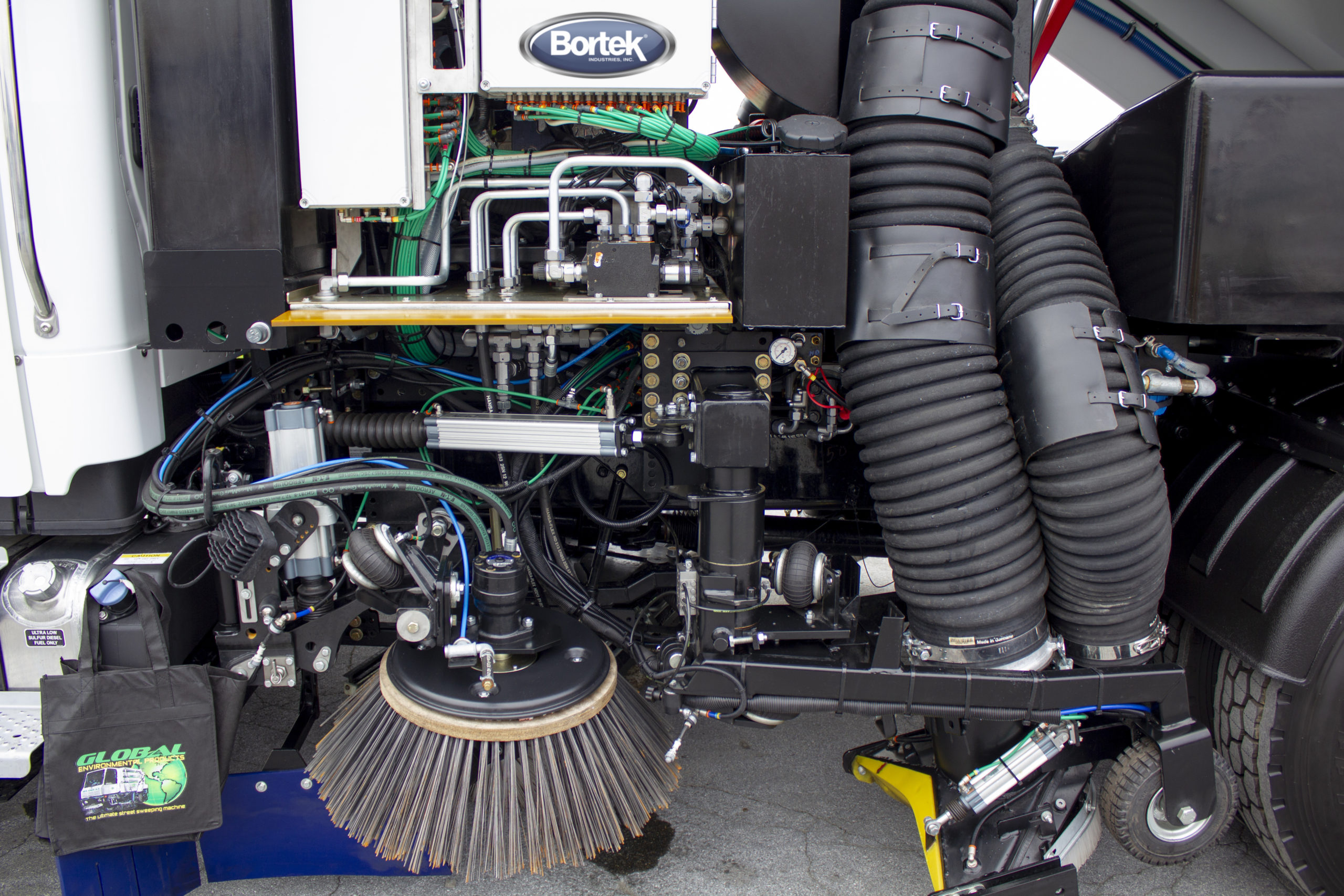

All valves and adjustments for the electrical, pneumatic, and hydraulic systems are located in one central console, which is maintenance-friendly and protects against water ingress.
Uneven Ground and It’s all Swept
The sweeping roller is suspended so as oscillate around its center of gravity, which means it can adjust to every bump and every road camber. Contact pressure and revolution speed can be smoothly adjusted, to ensure that every surface is swept really clean.
