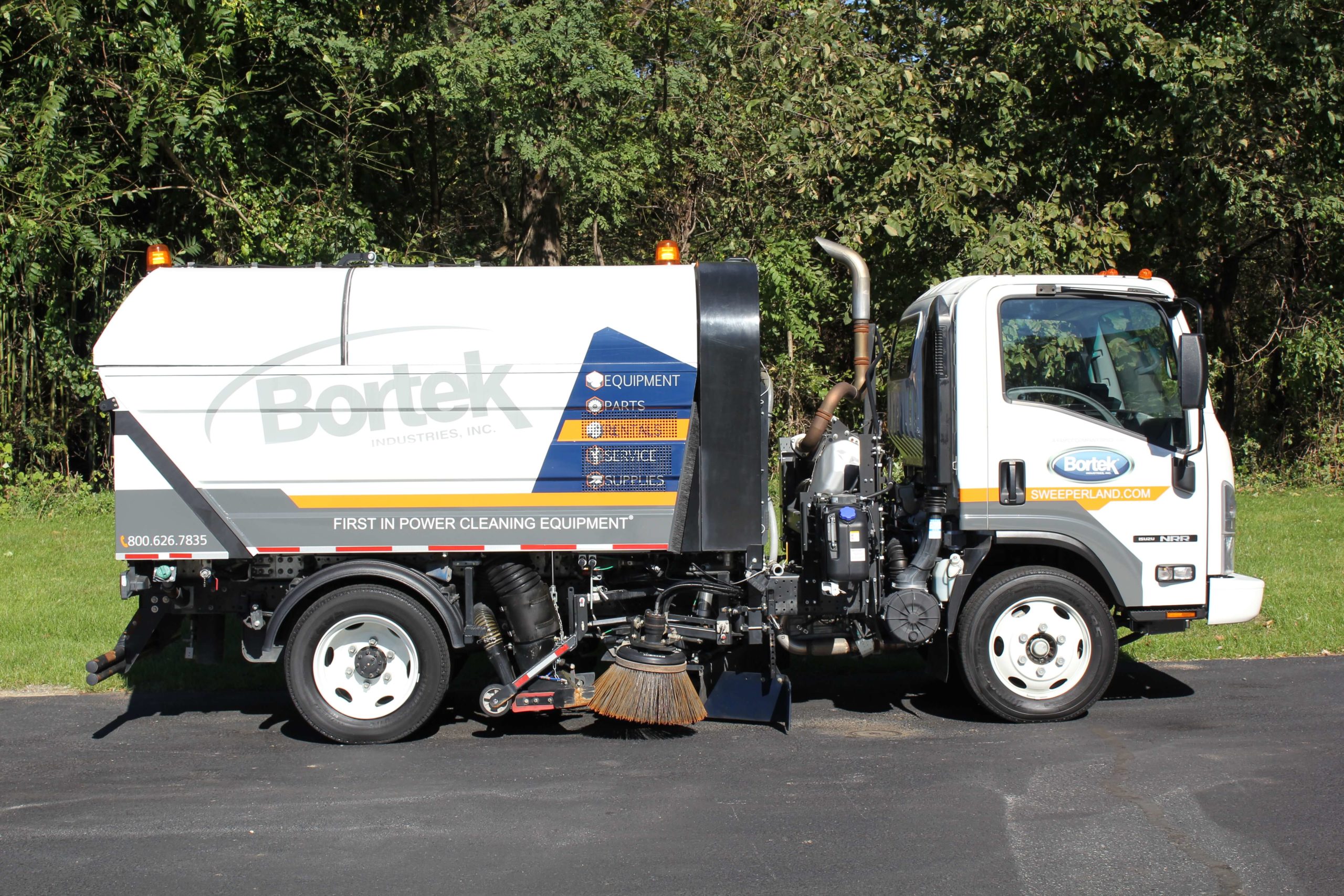

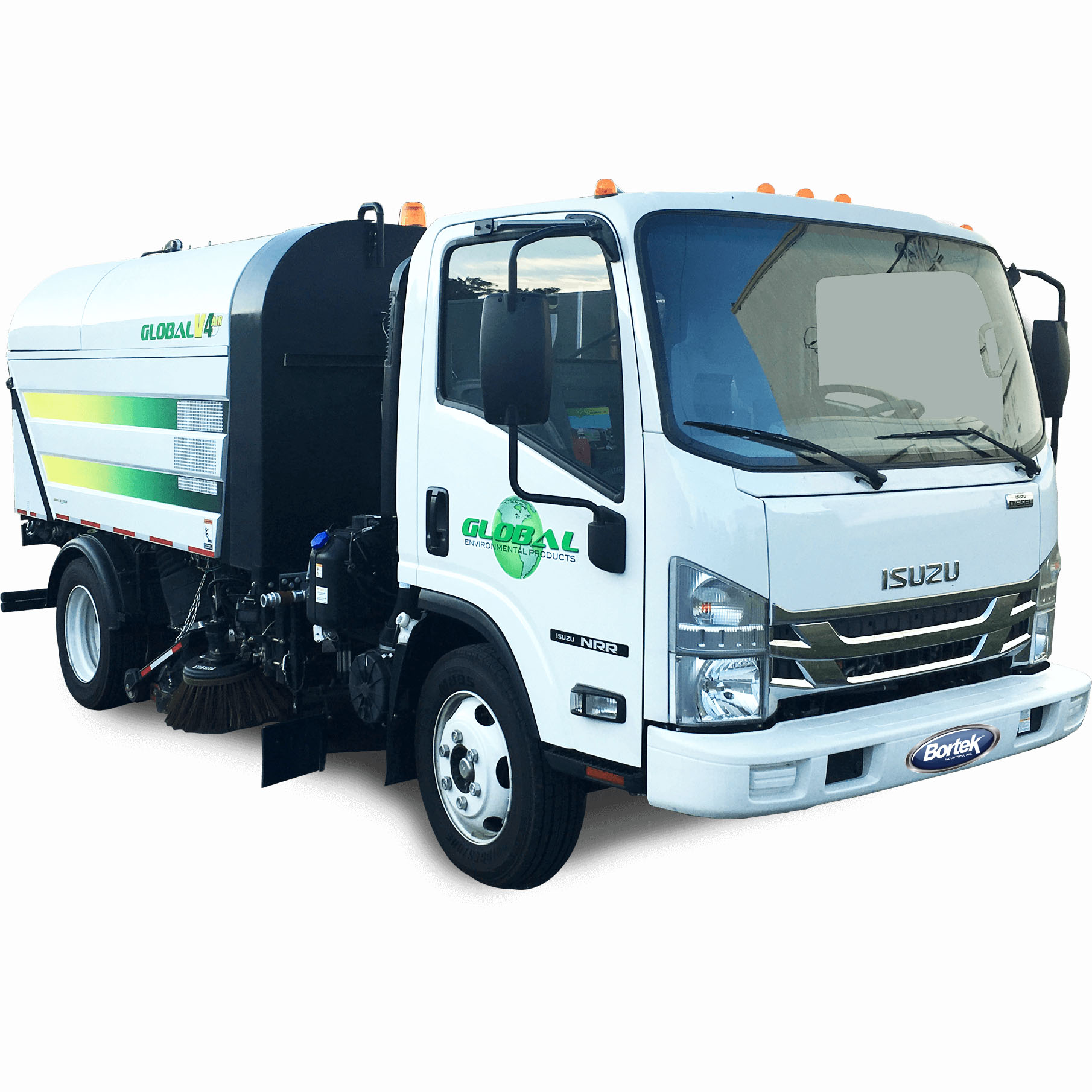

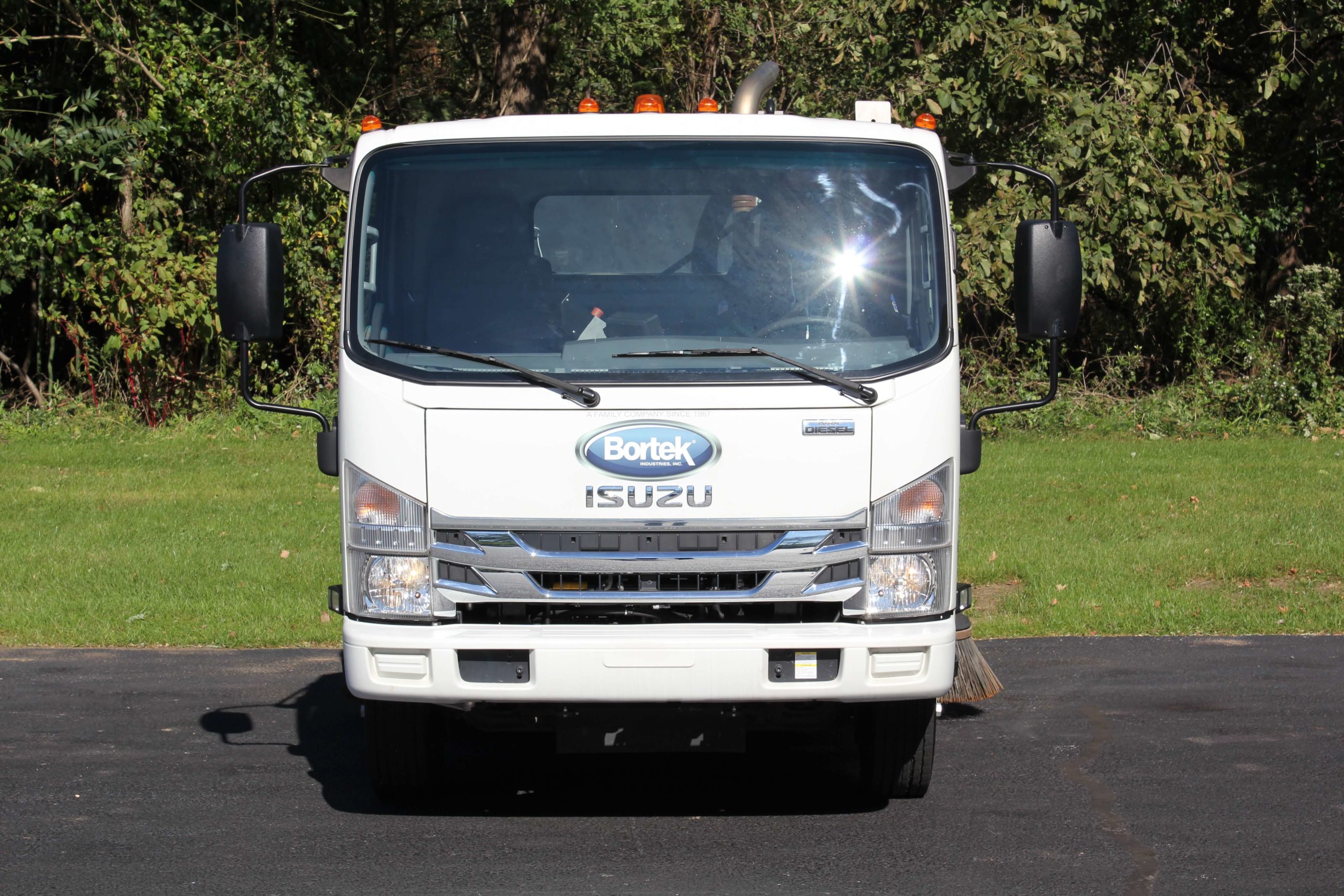

Global V4 Vacuum Air Street Sweeper

Get ready for a highly efficient and heavy duty vacuum sweeper! The fine dust emission from a Global V4 Vacuum Air Street Sweeper is 50% less than that of purely suction concepts. No dirty air is expelled into the working area at the rear and around the sweeping machine. Additional street cleaning is achieved by adding water to the recycled air. In winter the VIAJET can operate in temperatures as low as 23 °F, due to the circulating air in the system being warmed to about 59 °F, thus preventing the water in the suction shaft and hopper from freezing.

Cleaning Path
125"
Hopper Capacity
5.2 cu yd
Build
Chassis-Mounted

FEATURES & HIGHLIGHTS

FOCUSED ON WHAT MATTERS

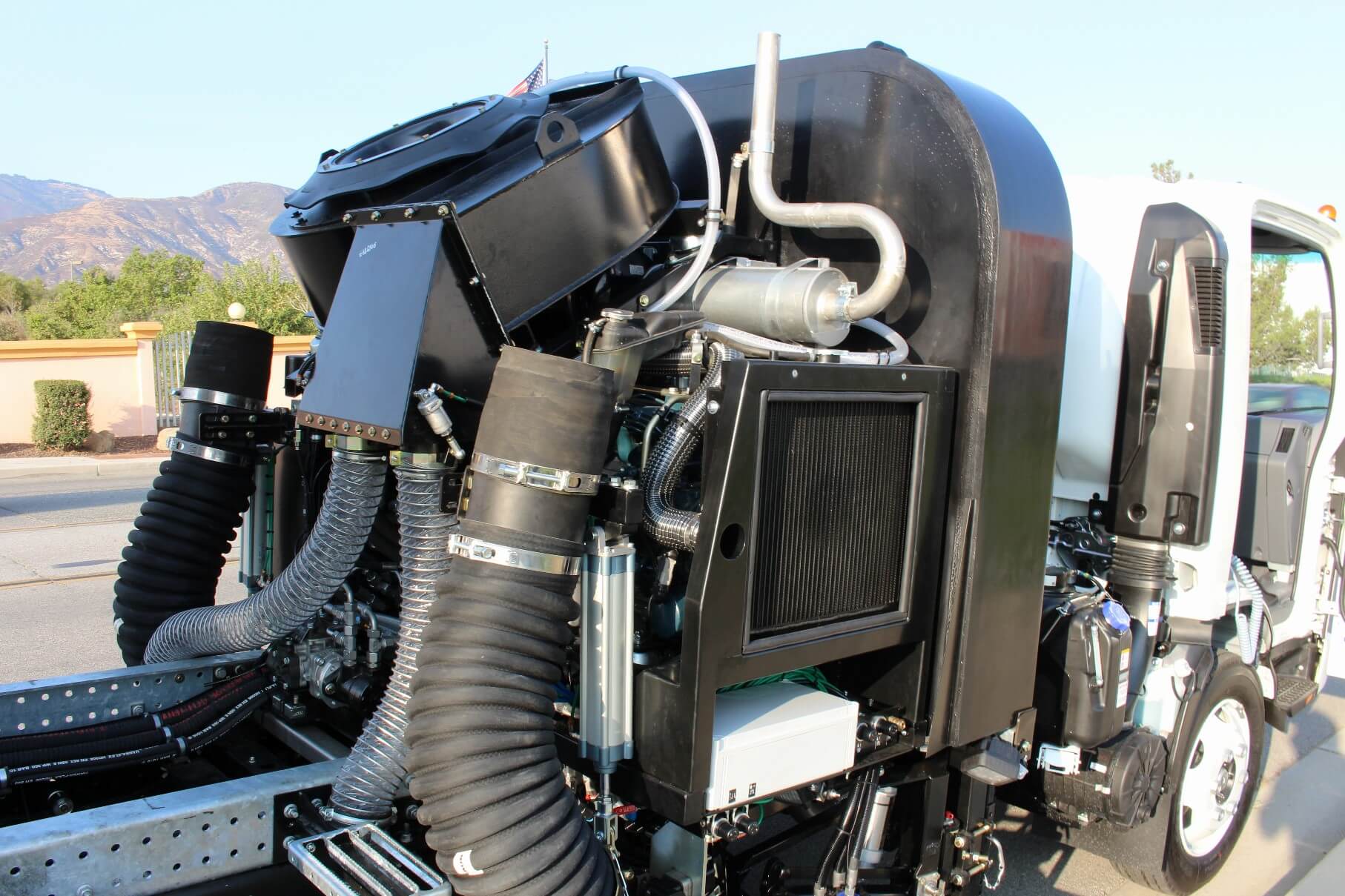

All Comes Down To Power of Sweeping: Inclined suction fan provides optimum volume flow and improved suction power. Air recycling system constantly recirculates the air from the sweeper to the suction box. Only a small percentage of the air passes into the atmosphere. Depending on the operational scenario, the recycled air volume can be adjusted in between 30% – 70%.  All the adjustments can be completed by the operator by adjusting a lever.

Sweeping Quiet: “Silent Plus” option means highly effective noise reduction by up to 99 dB(A) on the engine and fan system.

Increased Water Capacity – Sweep All Day: Twin tank solution provides for a total tank volume of 500 gallons of water. The primary fiber glass tank is fixed directly onto the sub frame under the hopper. The secondary tank, also made of fiber glass, is mounted in between fan and cab, providing additional noise protection.

Modern Drive Concept: Global V4 Vacuum incorporates many years of experience and success to draw on with the three basic types of drive. Depending on the operational area of the sweeper, the customer can choose between different drive concepts.

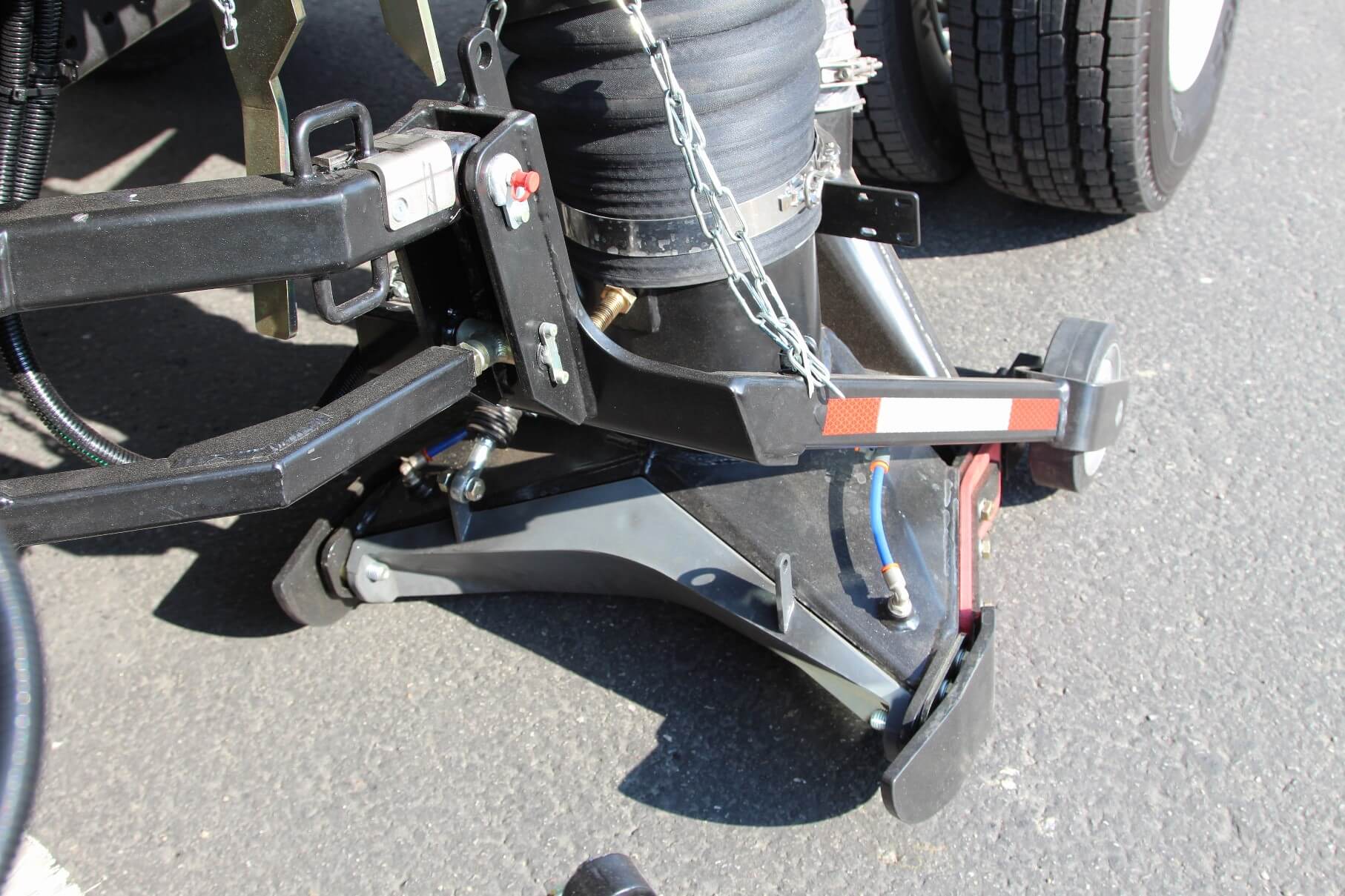

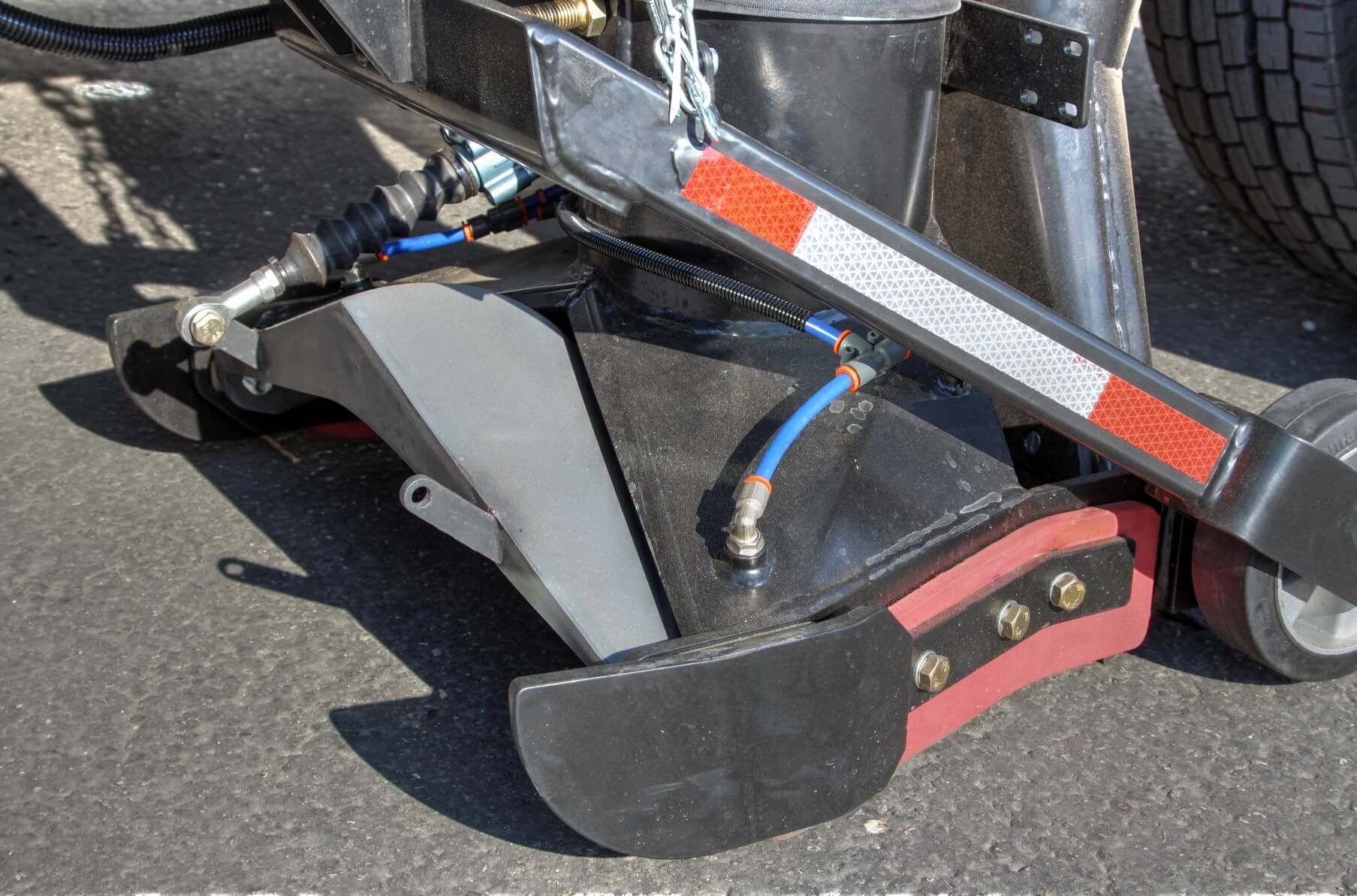

V-nozzle To Sweep It All: The V-shaped suction nozzle with its large aperture, made of 4 mm steel, conveys the swept material directly into the suction pipe. Even in difficult conditions, heavy material will be completely picked up.

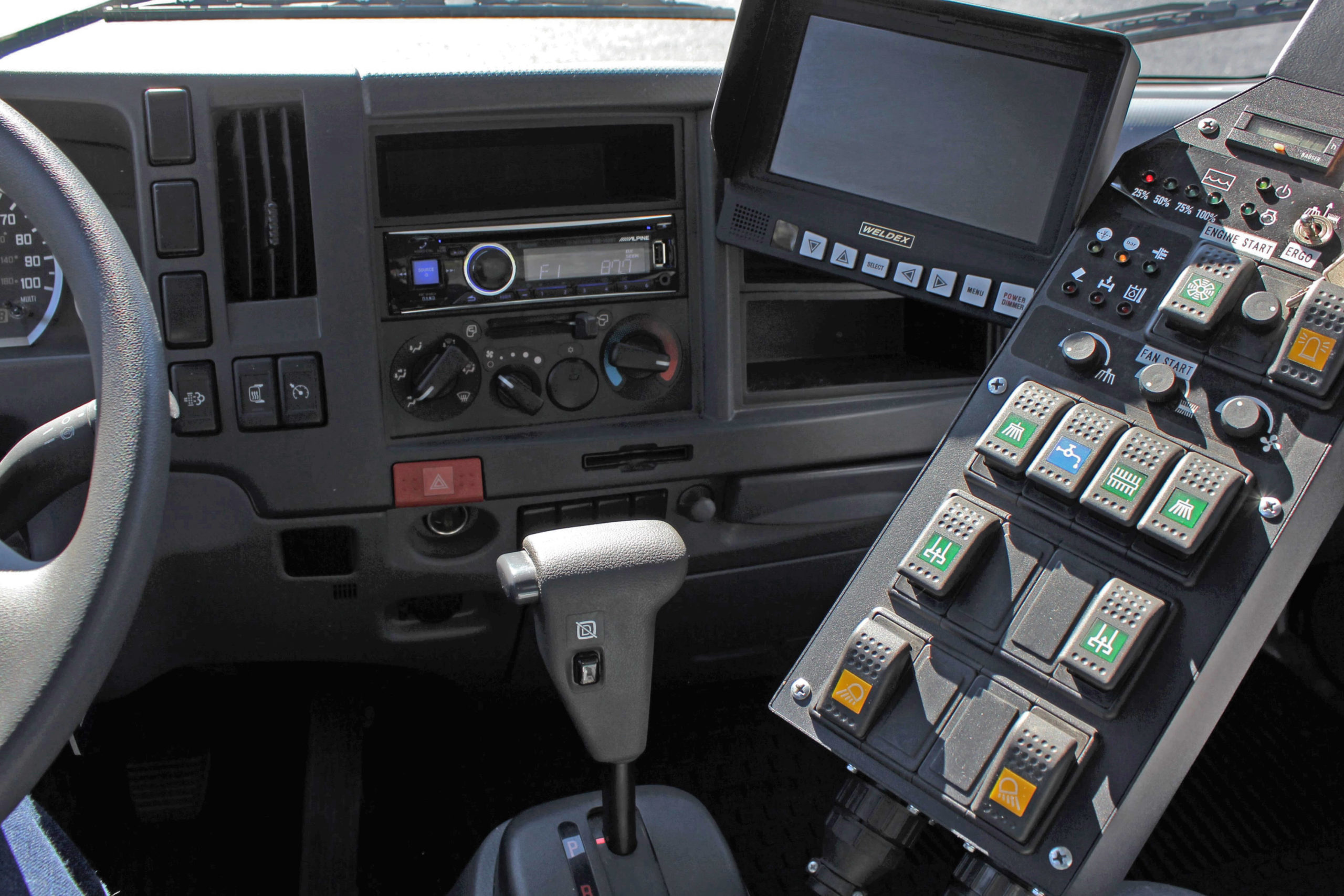

Everything At a Glance: A central operating panel provides easy access to all the functions, showing the driver all important information.

SPECIFICATIONS

GLOBAL V4 VACUUM AIR STREET SWEEPER AT A GLANCE

  • Manufacturer:

  • Class:

    Street Sweeper

  • Power Source:

  • Cleaning Path:

  • Hopper Capacity:

    5.2 cu yd

  • Sweep Method:

    Vacuum

  • Maximum Speed:

    Highway Speeds

  • Country of Origin:

  • Water Tank Capacity:

    210 Gallons

  • Build:

    Chassis-Mounted

  • Wander Hose With Pneumatic Support: The robust rear-mounted suction system provides the tried and trusted functions, as well as additional uses, such as emptying gullies and waste bins. With the pneumatically support carrier arm, the suction system can be moved effortlessly through the entire working area range, with adjustable operating height.

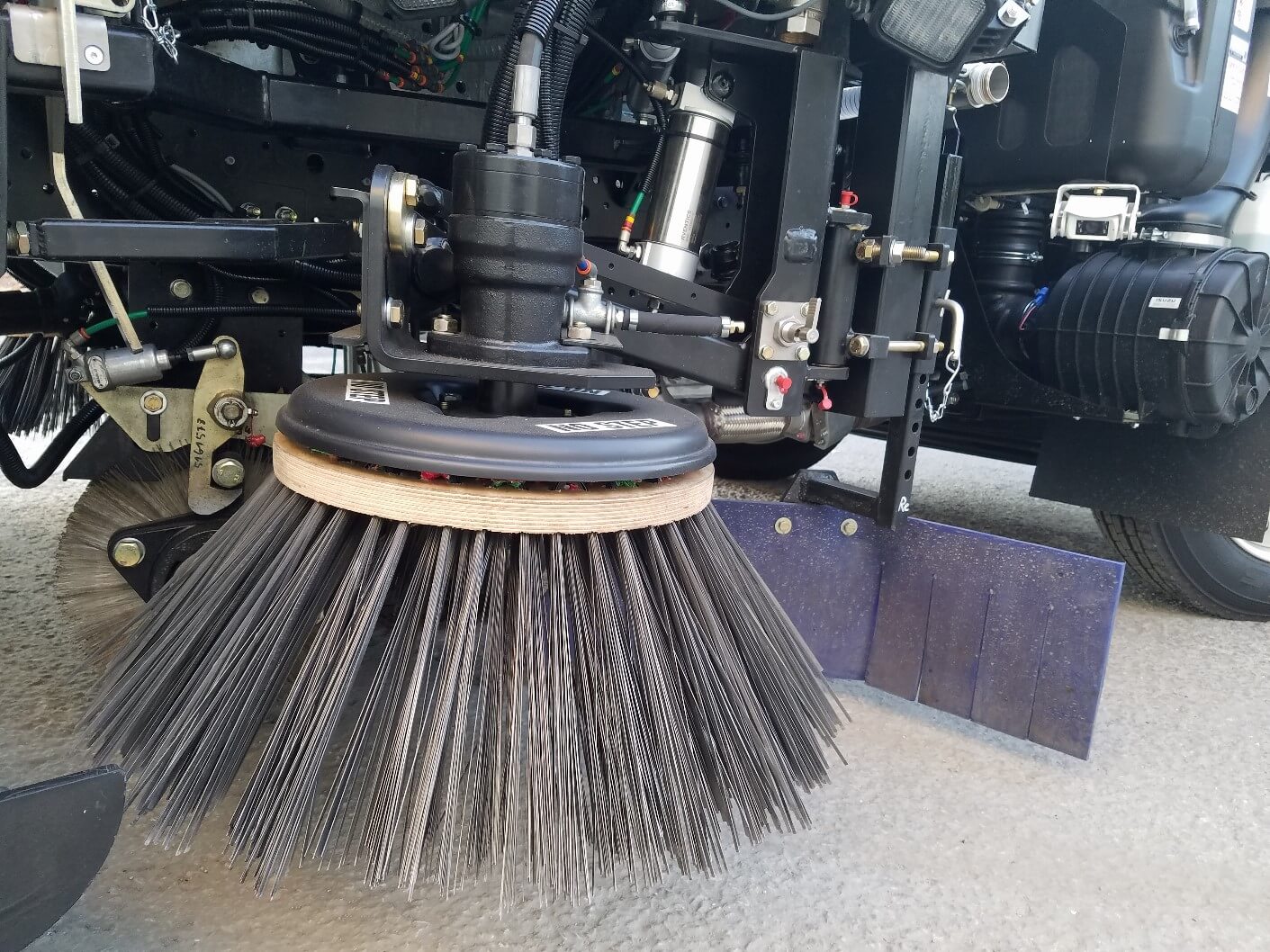

    Power Brush: The channel brush is mounted as a trailed brush and suspended separately from the suction nozzle. It is equipped with lateral shock absorbing device and ground pressure adjustment in order to pick up even heavy dirt off the road surface. Using the pneumatically controlled adjustment of the lateral inclination the brush is offering the best possible performance in every working condition.

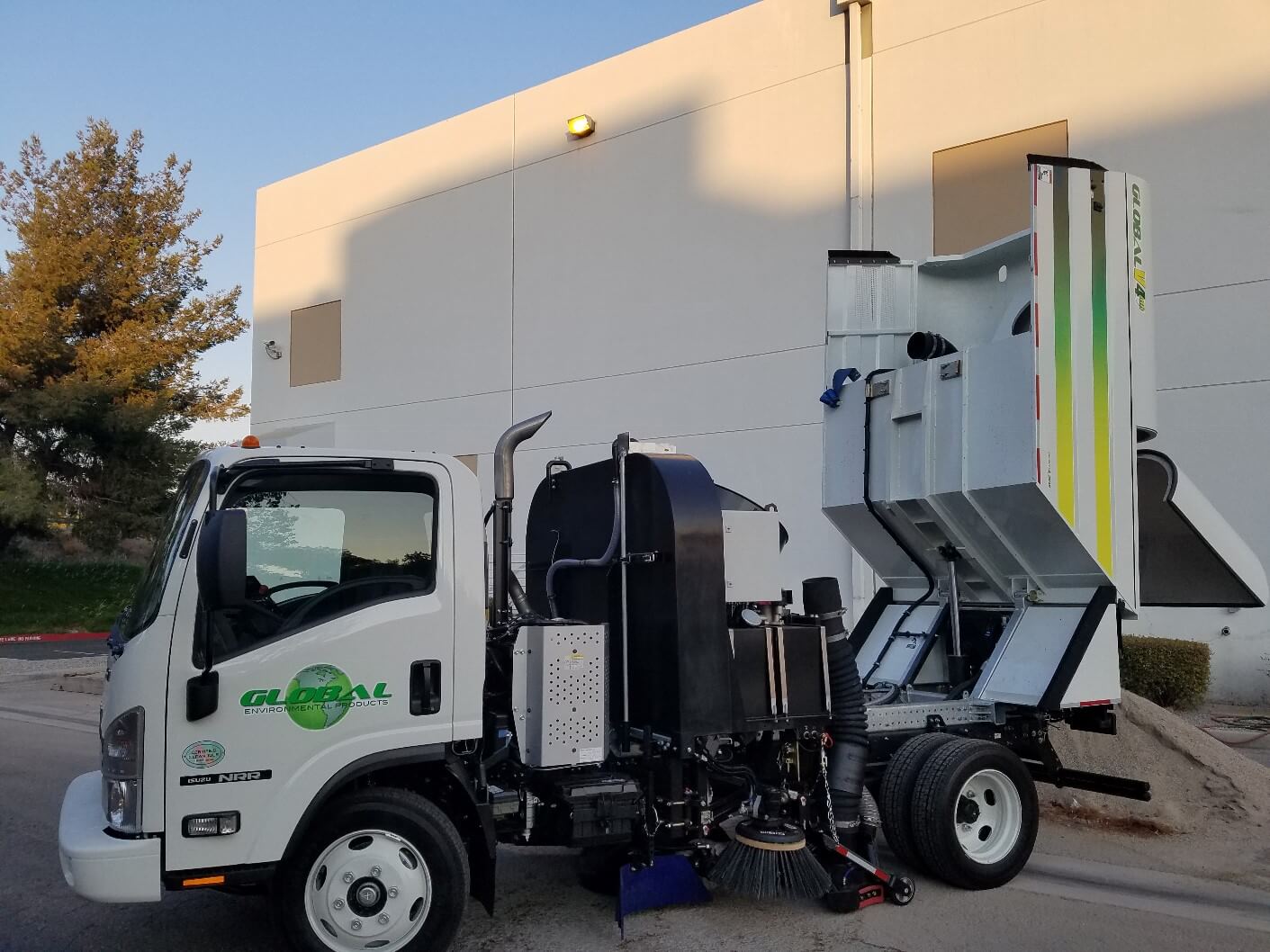

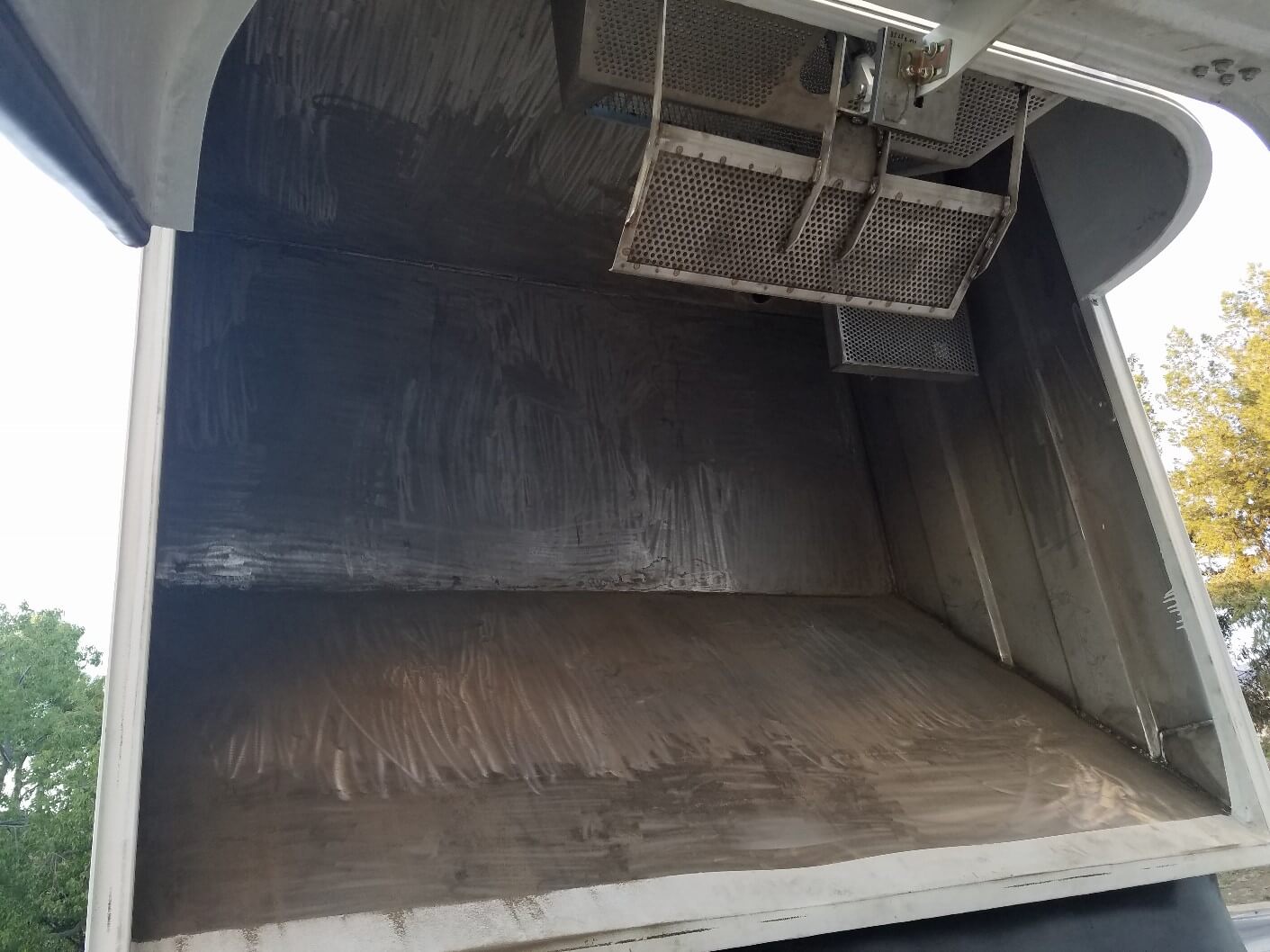

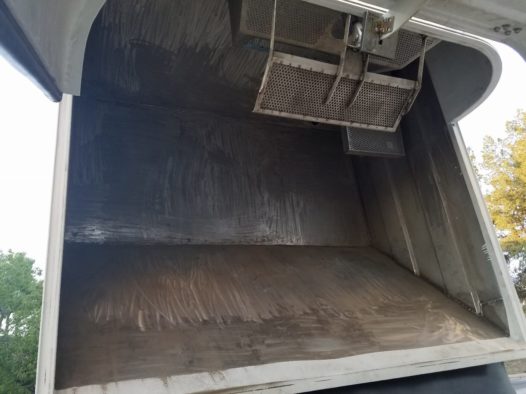

    Quality For Long Service Life: High quality materials (bottom pan made of Stainless Steel) and very smooth inner walls provide easy emptying and an extended service life.

    Central Switching Unit: All valves and adjustments for the electrical, pneumatic, and hydraulic systems are located in one central console, which is maintenance-friendly and protects against water ingress.

    Uneven Ground and It’s all Swept: The sweeping roller is suspended so as oscillate around its center of gravity, which means it can adjust to every bump and every road camber. Contact pressure and revolution speed can be smoothly adjusted, to ensure that every surface is swept really clean.

    GLOBAL V4 AIR BENEFITS

    TO MAKE YOUR LIFE EASIER

    • Powerful vacuum sweeping system
    • Designed to offer easy access to engine, pumps and all hydraulic components greatly reducing maintenance costs.
    • Non-CDL Chassis used for maximum operator qualification
    • Match speeds found on highways, travel quickly to and from sites
    • Large Hopper- Spend more time sweeping and less dumping
    • High quality and reliable components ensures maximum reliablity



    DOCUMENTS

    FOR THE GLOBAL V4 VACUUM AIR STREET SWEEPER

    Additional information

    Manufacturer

    Class

    Street Sweeper

    Power Source

    Cleaning Path

    Hopper Capacity

    5.2 cu yd

    Sweep Method

    Vacuum

    Maximum Speed

    Highway Speeds

    Country of Origin

    Water Tank Capacity

    210 Gallons

    Build

    Chassis-Mounted
