Global R3Air Street Sweeper

The Global R3Air Street Sweeper provides superior sweeping with its 32″ suction fan and 72″ wide pick up head! It can pick up heavy debris as well as light debris. With the center mounted cab/forward layout, the operator has visibility of the road surface as well as pedestrians and surrounding traffic. The 116-inch wheel-base allows for the sweeper to reach a turning radius of 12 1/2 feet, wall-to-wall. With the pickup head in the center, there is no need to worry about what is happening behind you.

Cleaning Path
125"
Hopper Capacity
5.6 cu yd
Build
Purpose-Built

FEATURES & HIGHLIGHTS

FOCUSED ON WHAT MATTERS

Global Street Sweeper Turning RadiusTHE BEST TURNING RADIUS: With the center mounted cab/forward layout the operator has unsurpassed visibility of the road surface as well as pedestrians and surrounding traffic. The 116-inch wheel-base allows for the sweeper to reach a turning radius of 12 1/2 feet, wall-to-wall. With the pickup Head in the center you don’t have to worry about what is happening behind you.

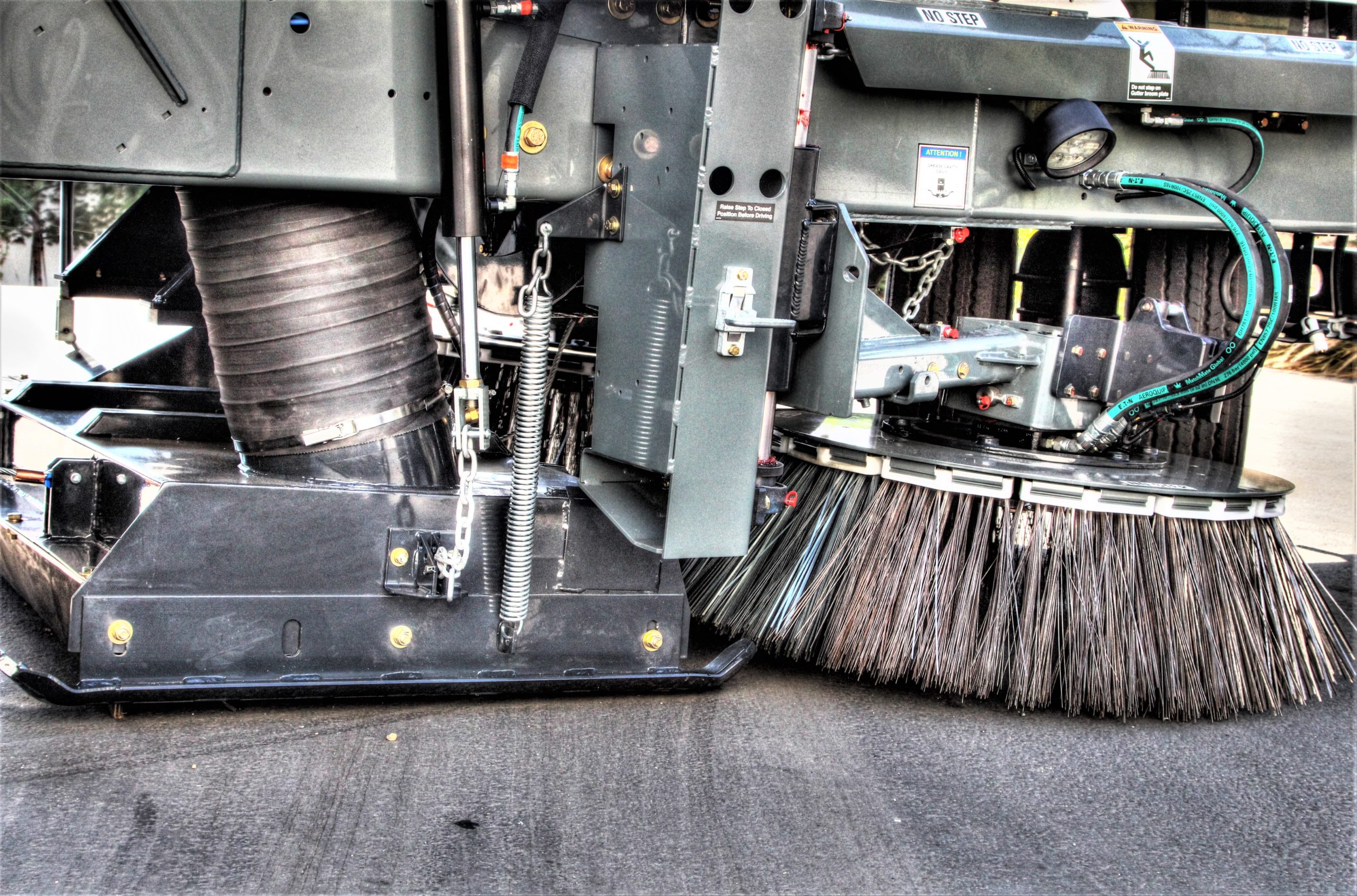

Hydraulically-Driven Fan sealed loop Air is blasted down a 12” vertical tube (Pressure Side) on the left side of the Pick Up Hood. Debris and Air then travels to the right and Up 12” Hose (vacuum side), Enter Dust Separator, which filters fine particles from Air Stream before it reaches the blower again. Water system keeps the debris from returning to the impeller. The Sweeping system consists of 72” Wide Pick-Up Hood with Carbide Dirt Shoes, and Large 47” Digger-Type Gutterbrooms. Combining both with a Large 32” Suction fan equals to one of the most powerful AIR Street Sweepers available today.

SPECIFICATIONS

GLOBAL R3AIR STREET SWEEPER AT A GLANCE

  • Manufacturer:

  • Class:

  • Power Source:

  • Cleaning Path:

  • Hopper Capacity:

    5.6 cu yd

  • Sweep Method:

    Regenerative Air

  • Maximum Speed:

    23mph

  • Country of Origin:

  • Water Tank Capacity:

    230 Gallons

  • Build:

    Purpose-Built

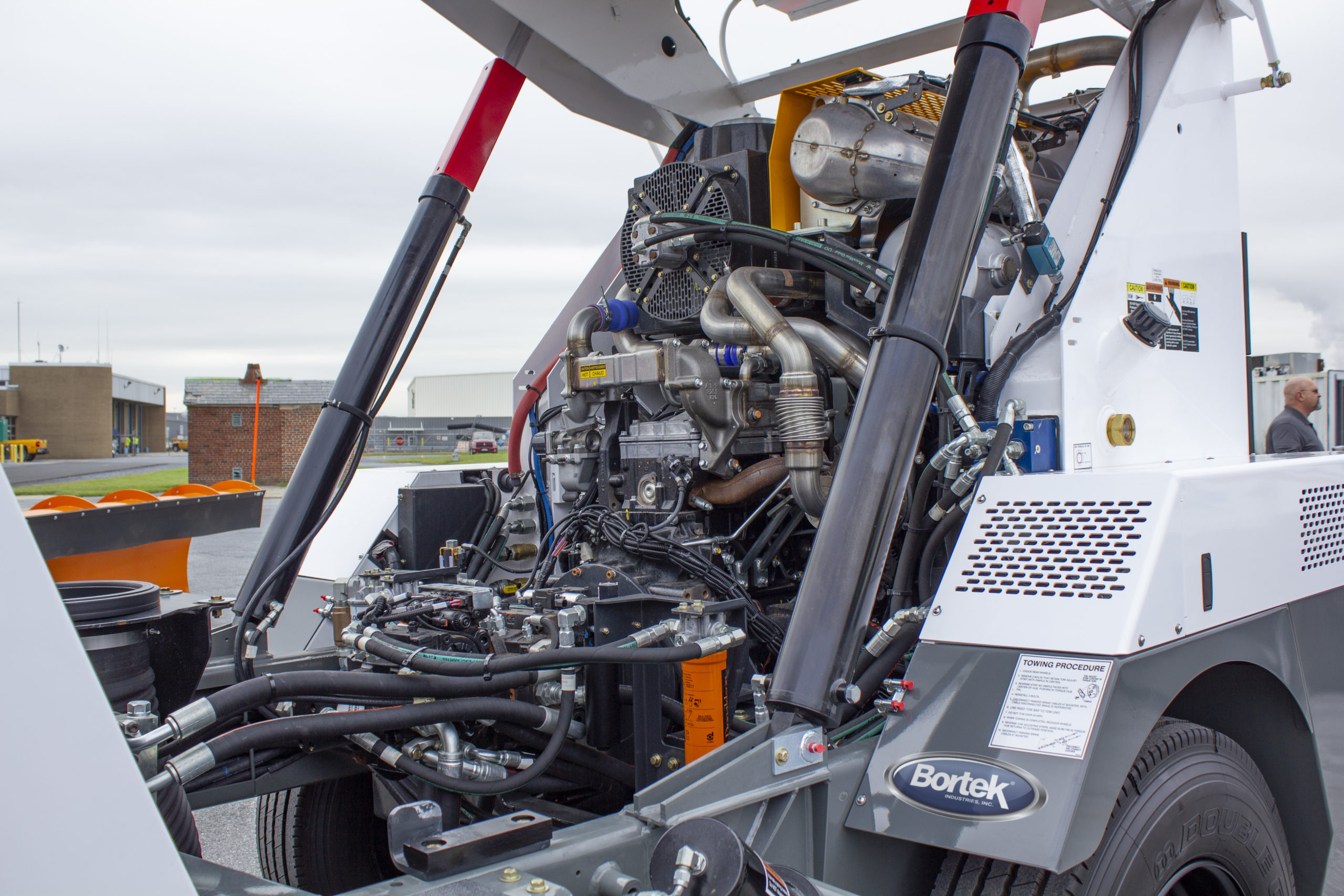

  • The Global R3AIR is also designed to make routine maintenance easy, so your sweeper spends more time on the street and less time in the garage. Two swing-out center body panels provide unrestricted access to Fan Housing, maintenance and daily cleaning. A centralized, weather-proof systems locker fully protects electrical components from the elements while fender located Hydraulic system allows for easy maintenance, accessibility and inspection Troubleshooting is now a breeze. The Global R3AIR features many maintenance-friendly at-tributes, such as a rear swing-out radiator, easy-access front mounted AC condenser, brake and windshield washer fluid reservoirs, and cab fresh air filter.

    IMPRESSIVE PERFORMANCE: The high-performance Global R3AIR has unsurpassed pick-up ability across its full 125” sweeping path, even when faced with the heaviest workloads.The performance matched 32” Suction Fan and 72” wide Recirculating Pick-Up Hood provide superior sweeping of heavy debris quickly and efficiently. In-cab gutterbroom down pressure controls combined with a self-adjusting Pick-up Hood provide for superior sweeping ability. The large 5.8 cubic yard hopper’s ribbed design eliminates rust traps and is mid-mounted for balanced weight distribution and superior loading.

    RELIABLE POWER: The Global R3AIR comes standard with a fuel-efficient Final T4 4-cylinder, turbocharged 172-horsepower Isuzu diesel engine, largest in its class, delivering outstanding performance and reliability. Low-maintenance Hydrostatic drive system with two-speed variable displacement wheel motors and engine mounted variable displacement pump reaches road speeds up to 23 mph and handles steep grades up to 21 degrees.

    GLOBAL R3 AIR BENEFITS

    TO MAKE YOUR LIFE EASIER

    • Safety: Maximum View for the Operator
    • Tight, 12.5 Turn Around Radius
    • Heavy Duty American Construction
    • Optional Third Broom for Maximum Performance
    • Unmatched regenerative air capabilities
    • Hydrostatic Transmission
    • Backup Camera for Maximum Safety
    • Gradeability: 21 Degrees



    ← Take a Look Inside the Cab →



    DOCUMENTS

    FOR THE GLOBAL R3AIR STREET SWEEPER

    Additional information

    Manufacturer

    Class

    Power Source

    Cleaning Path

    Hopper Capacity

    5.6 cu yd

    Sweep Method

    Regenerative Air

    Maximum Speed

    23mph

    Country of Origin

    Water Tank Capacity

    230 Gallons

    Build

    Purpose-Built
