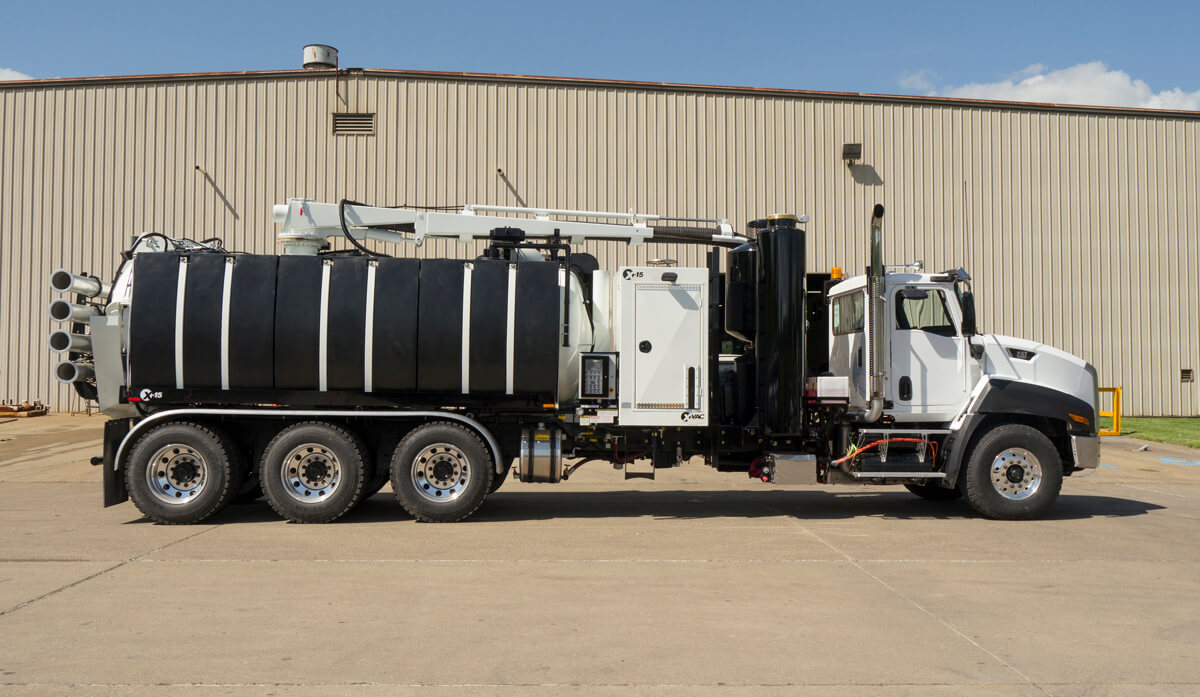

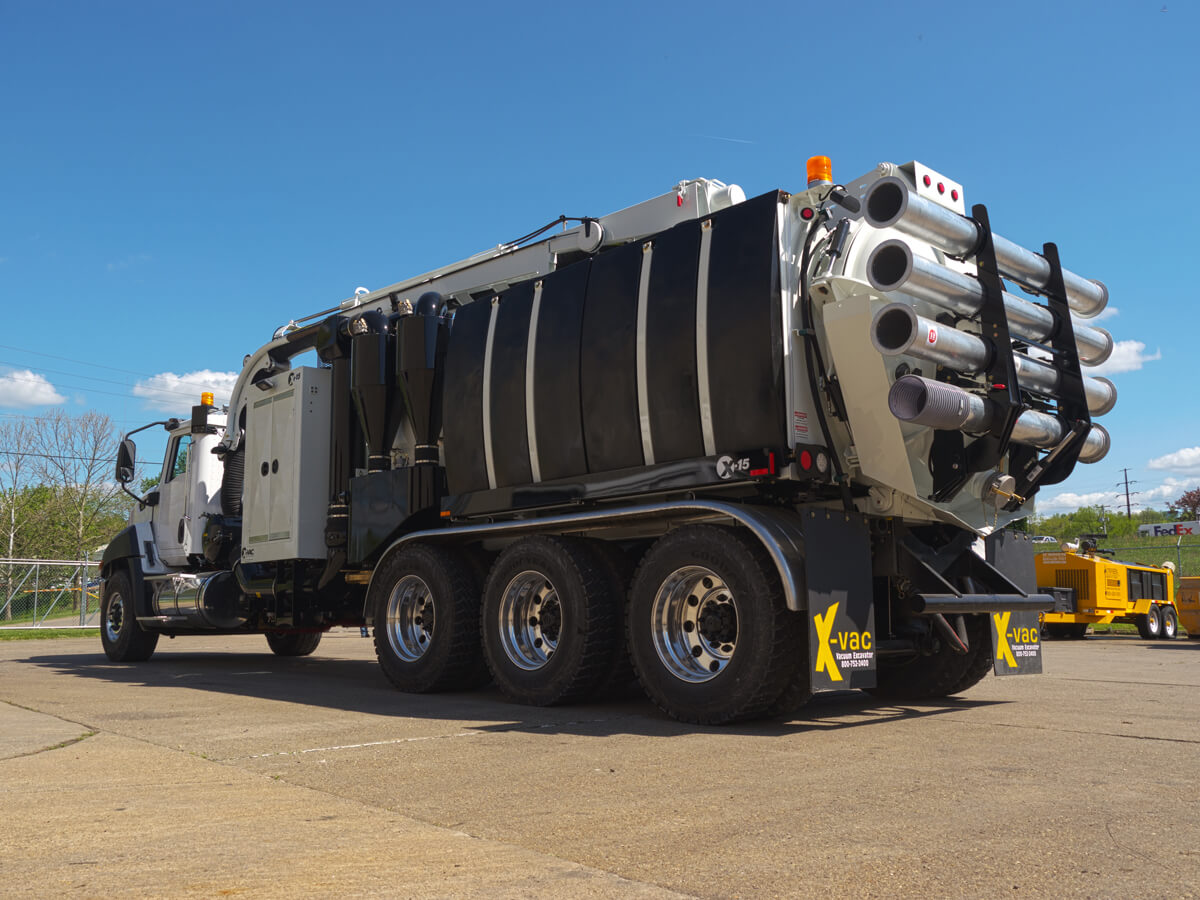

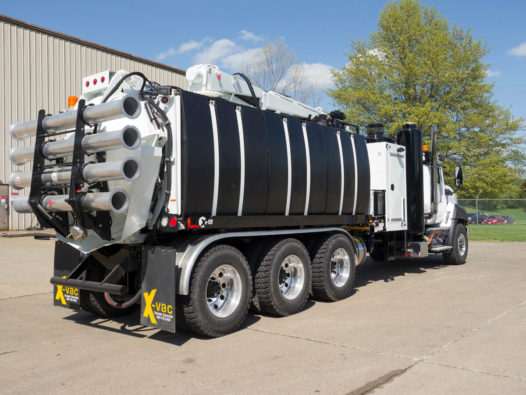

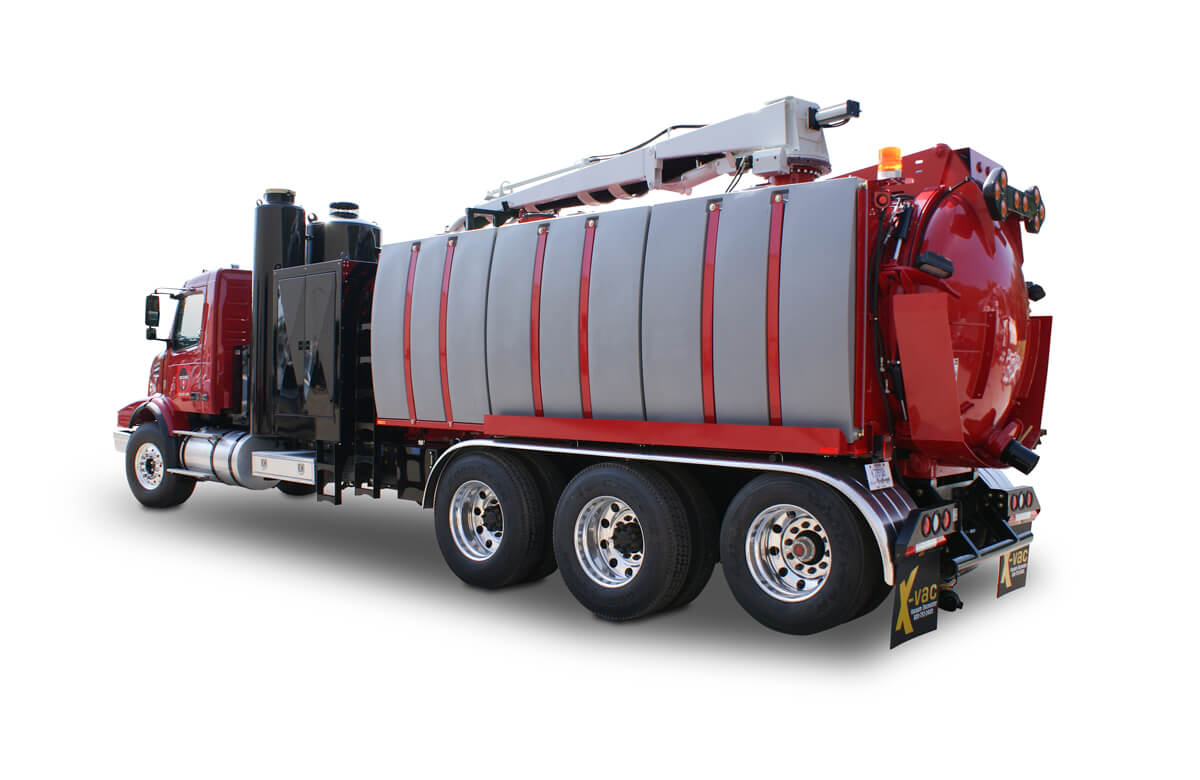

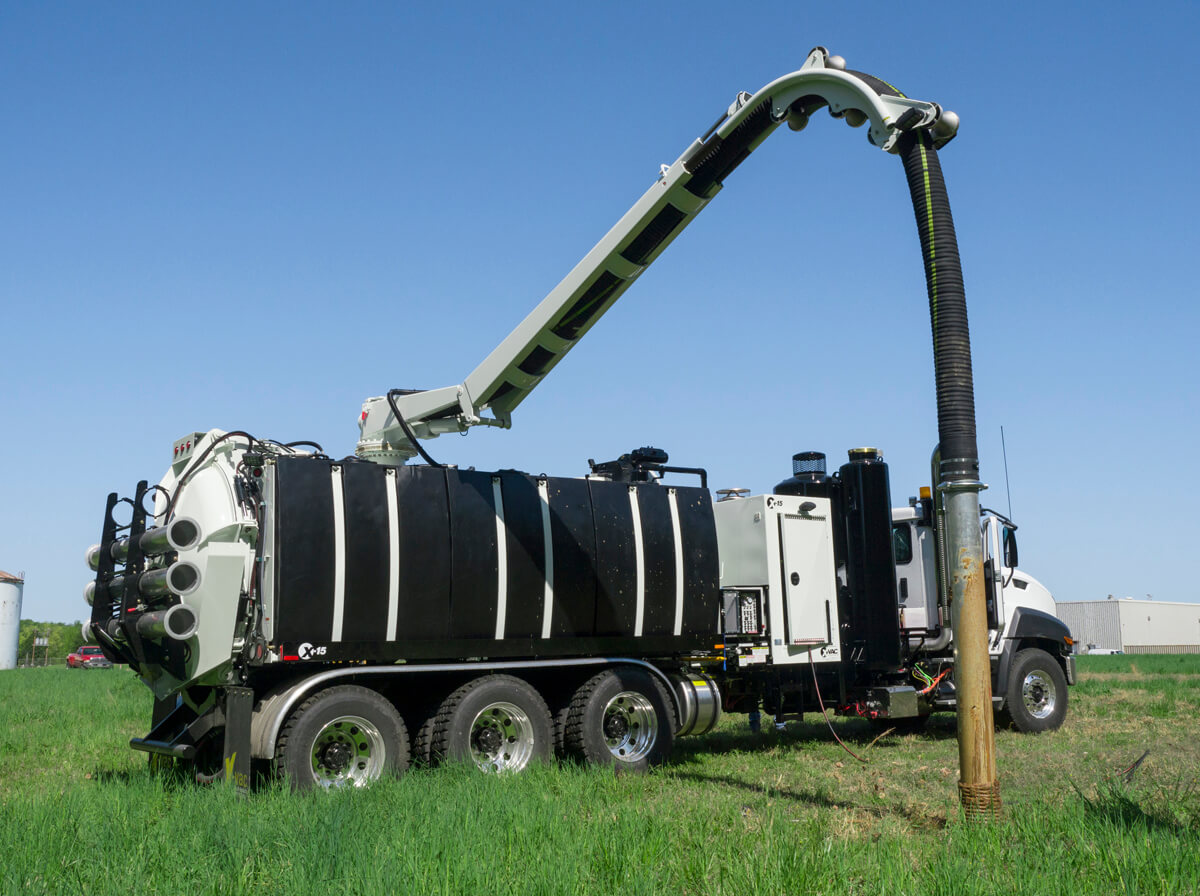

X-Vac X-15 Hydro Extractor

A Hydro Excavator which uses a Triplex Water Pump and vacuum system for potholing, day-lighting, utility location, and more. The X-15 has a larger, 15 cubic yd., debris tank and 1425 gallon water capacity.

Description

Like the X-12 the X-15 uses a state-of-the-art Triplex Water Pump and vacuum system for potholing, day-lighting, utility location, and other applications.

The X-15 offers all the same benefits as the X-12 but with a larger debris tank (15 cubic yards) and increased water capacity (1425 gallons total). The X-15 offers minimal breakdowns and less downtime due to high quality construction and components.

Features

  • Cold Weather, Severe Duty Re-Circulation System
  • Triplex Water Pump: 20 GPM @ 2500 PSI
  • 5250 CFM, 27″ Hg Vacuum Blower
  • Hot water Heater 700,000 BTU
  • 340° Rotating Top Loading Boom
  • 15 Cubic Yard Debris Tank
  • Wireless Remote Controls for Blower & Water Pump
  • Five 285-Gallon Water Storage Tanks (1,425 Total Gallons)
  • Highest Standard Ground Clearance in the Industry
  • Heated Enclosure for Water Heater, Pump, Hose Reel & Tool Storage
  • Additional Features:

    Debris Tank

  • Cylindrical design, 50,000 PSI minimum yield strength
  • Directional splash shield including side shielding attached to the tank
  • Blower

  • Roots Model 616 DVJ vacuum pump capable of producing 2400 CFM
  • Ultra quiet exhaust silencer
  • Water Tanks/Pump

  • Poly-graphite rust-free tanks
  • Adjustable Triplex water pump; 0-2,500 PSI
  • Miscellaneous

  • Spring loaded hose reel
  • Control Panel mounted on curb side of unit
  • LED DOT lighting
  • Cold Weather Package
  • Vacuum Tube Package
  • Single axle diesel-powered truck chassis
  • Chassis engine powers the system
  • Frame mounted ground cable reel
  • Additional information

    Application

    Manufacturer

    Debris Tank Capacity

    Water Tank Capacity

    1,425 Gallons

    Water Pump

    20 GPM @ 2500 PSI

    Vacuum Blower

    5250 CFM, 27" Hg

    Power Source
