Standard Nozzle

EXPERT-GRADE NOZZLES | TOUGH-AS-NAILS MUNICIPAL PRODUCTS

Description

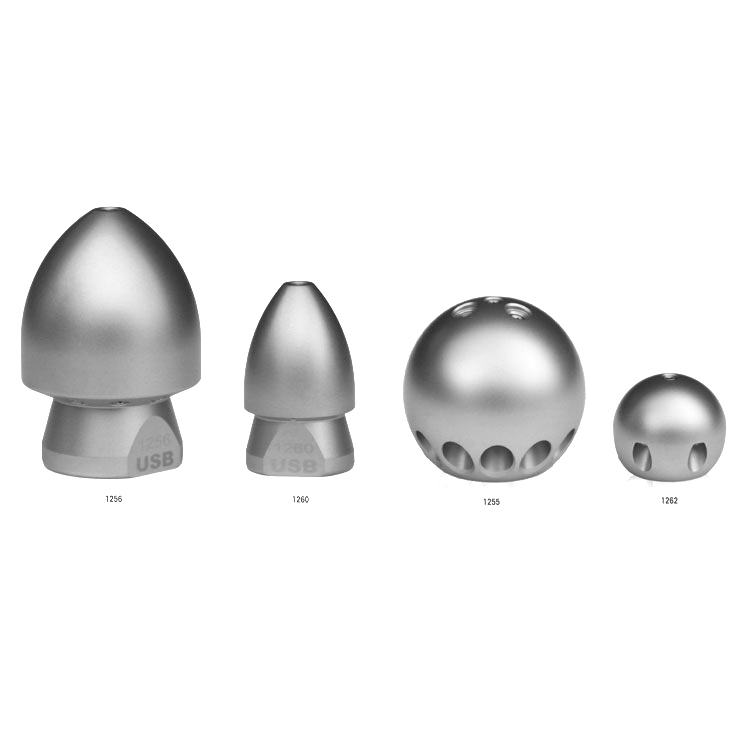

Compact, lightweight and inexpensive are three words that sum up the Standard nozzle. Made from stainless steel with a spray angle of 20° makes this nozzle perfect for cleaning smaller pipes. A front jet for penetration is also available.

Overview:

  • Round Pipes
  • Tier 2, Tier 1

Product Specs

Part
Number
Hose Con.
(NPT)
GPM/
Minimum
Pipe
Diameter (in)
Dimensions
(L x W)
Weight
(lbs)
Rear
Jets
Front
Jets
Radial
Jets
Product
Tier
12511 1/4″808″ – 12″3.14″ x 2.36″2.2101Tier 2

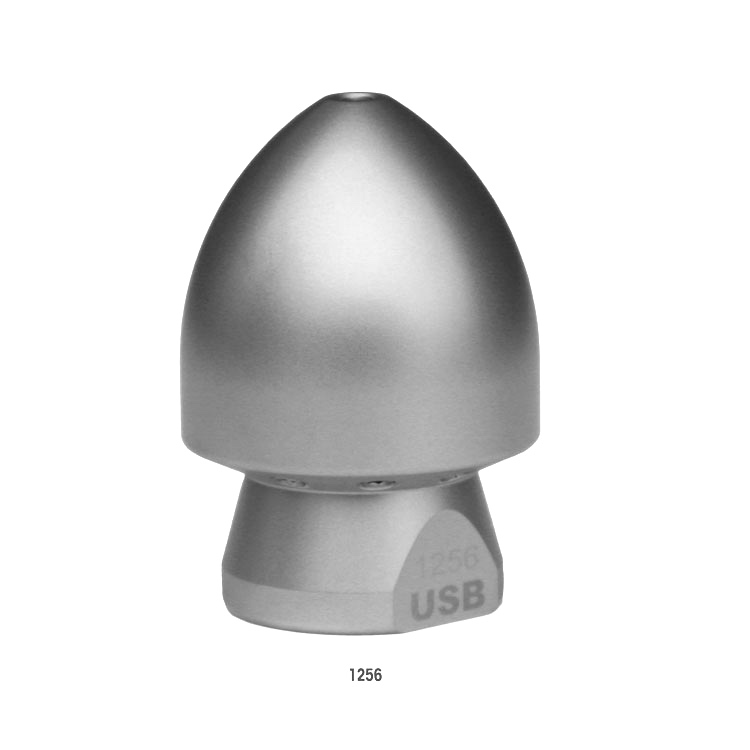

12561″506″ -12″3.14″ x 2.16″1.76101Tier 2

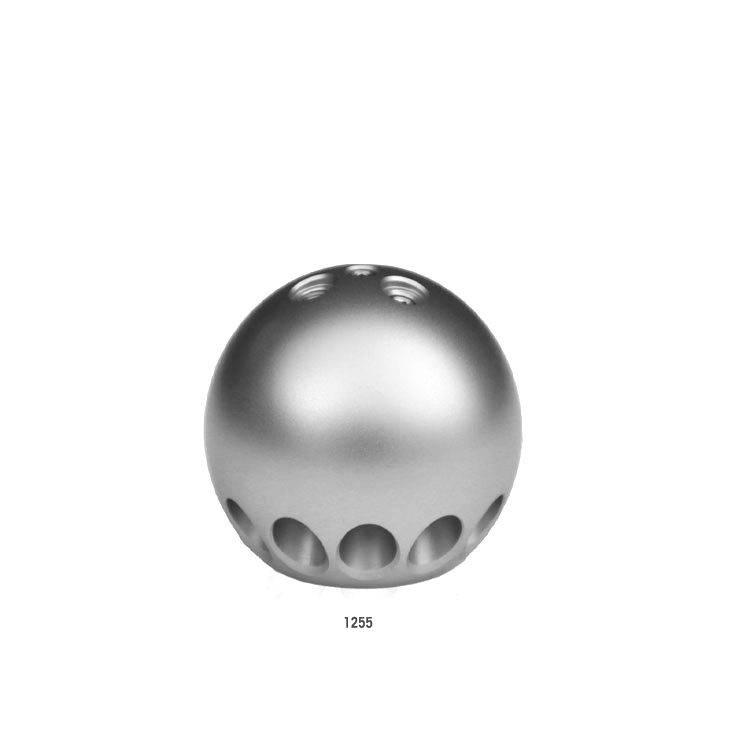

12551″506″ -12″2.04″ x 2.28″1.5124Tier 2
12573/4″306″ – 8″2.55″ x 1.69″0.8881Tier 2
12593/4″306″ – 8″2.55″ x 1.69″0.8861Tier 2

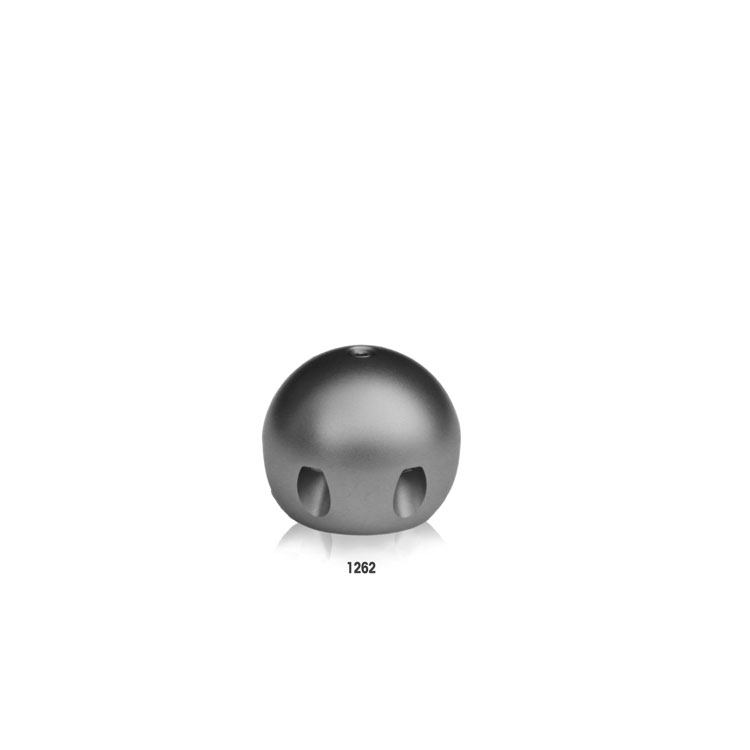

12621/2″122″ – 6″1.06″ x 1.25″0.2261Tier 2
12683/8″82″ – 4″1.37″ x .98″<0.2261Tier 1
12731/4″3up to 4″.78″ x .78″<0.2261Tier 1
12741/4″3up to 4″.78″ x .78″<0.2261Tier 1
SOURCE: USB-USA,  LLC.
