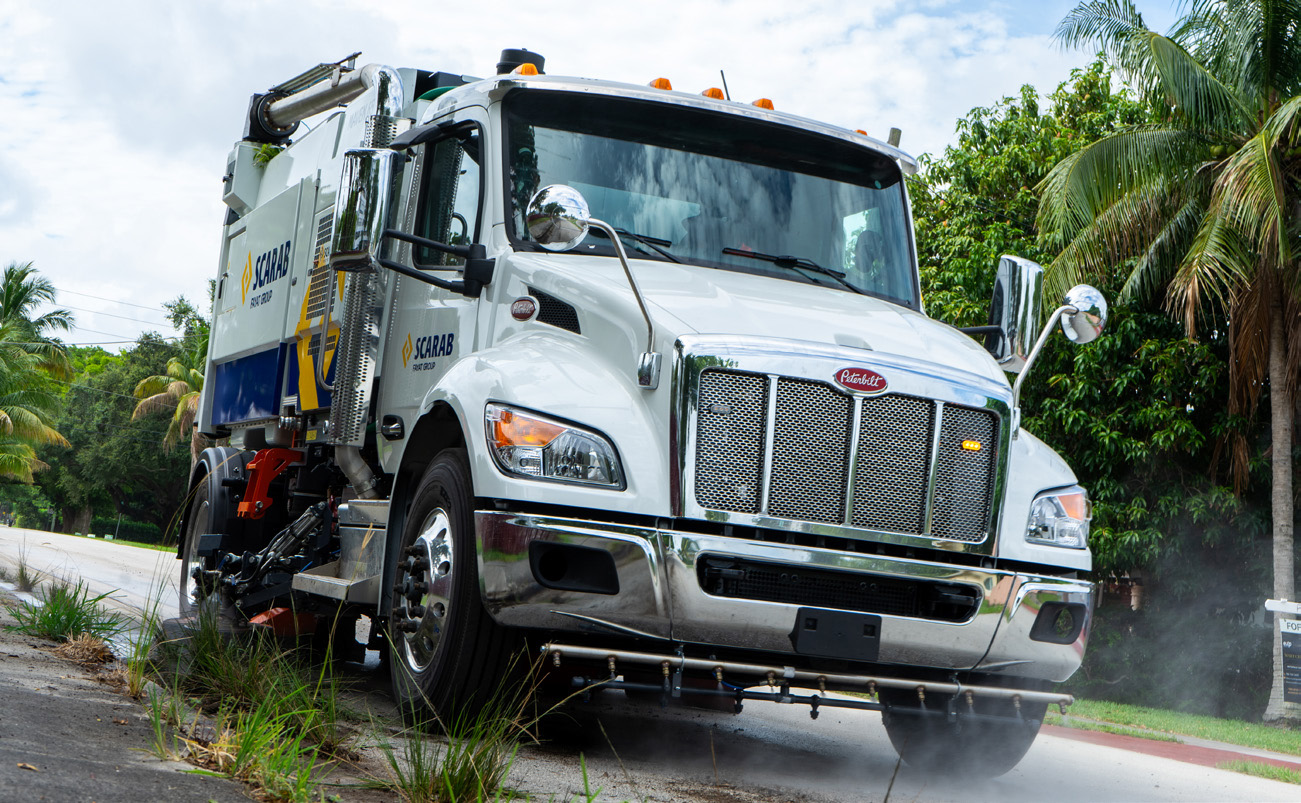

Scarab Maven 65 Street Sweeper In-Use

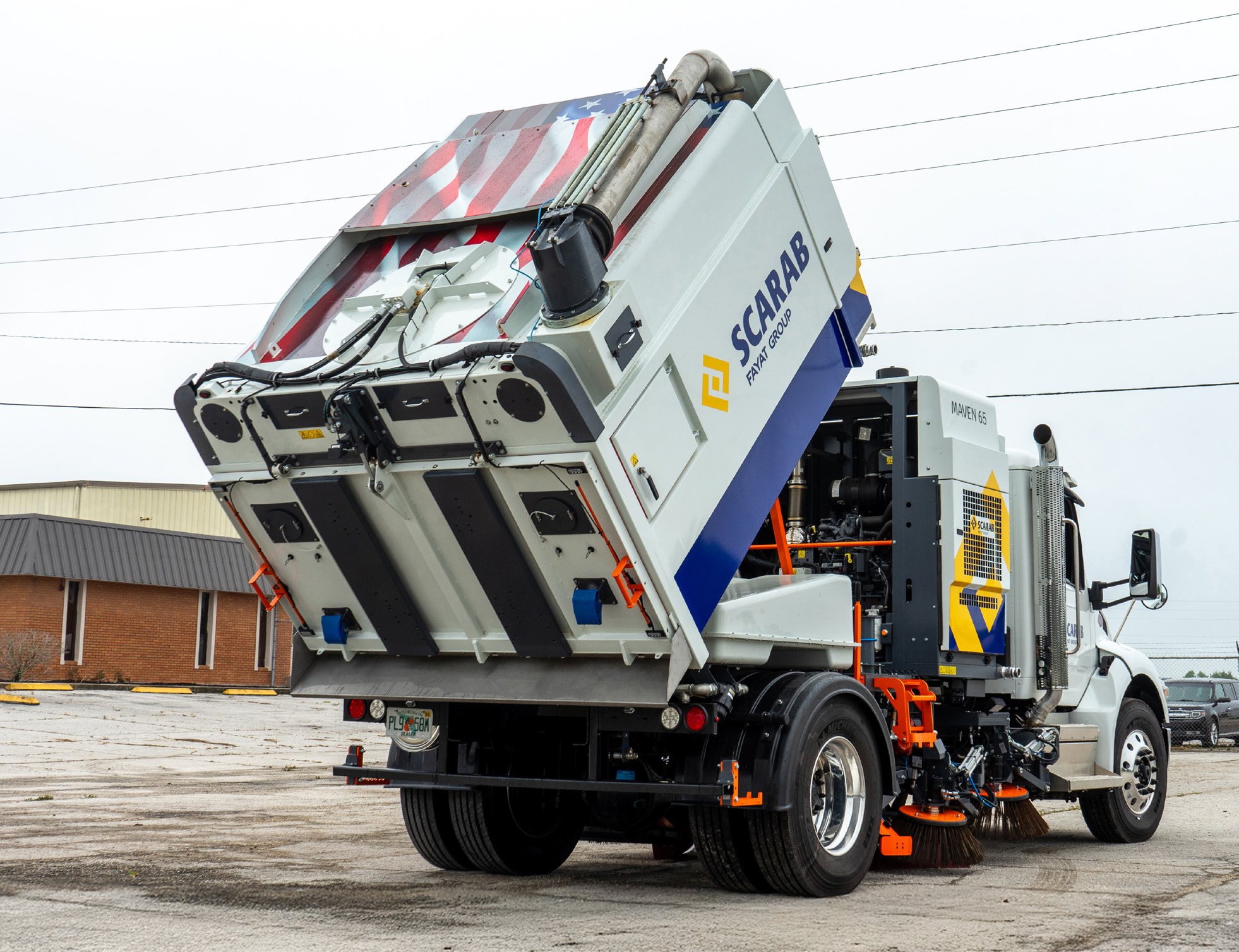

Scarab Maven 65 Street Sweeper with hopper tilted for dumping

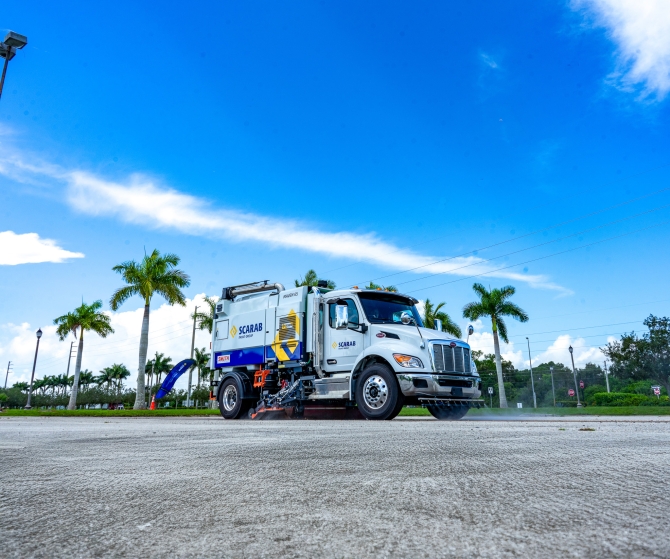

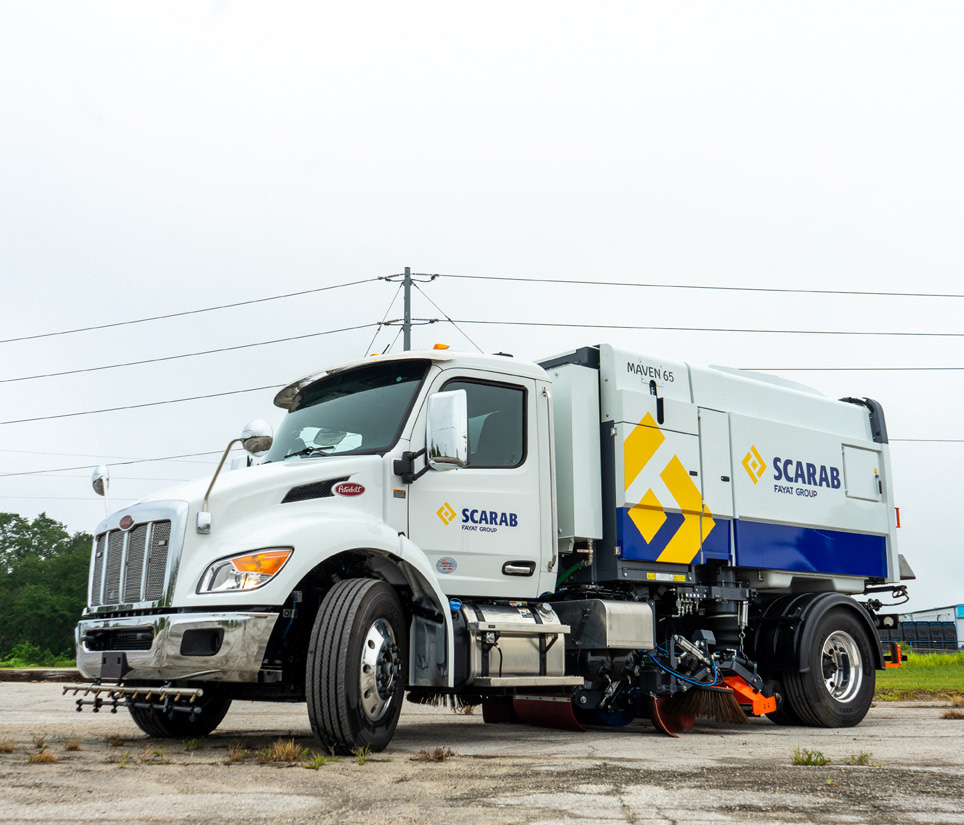

Scarab Maven 65 Street Sweeper Low Front Angle
Scarab Maven 65 Street Sweeper cleaning a suburban street

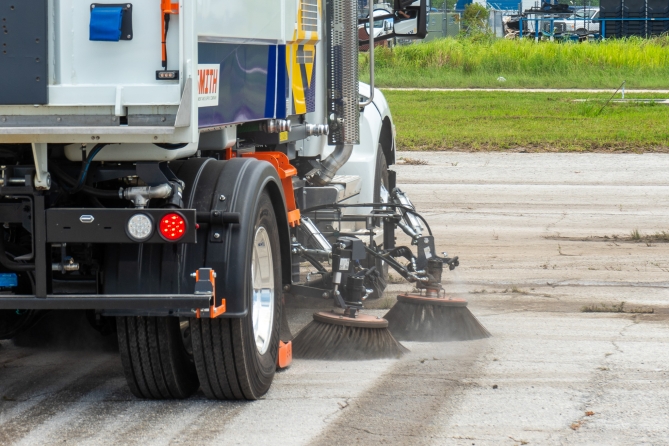

Scarab Maven 65 Street Sweeper Side Brooms
Scarab Street Sweeper Cab Interior
Scarab Maven 65 Street Sweeper Brooms

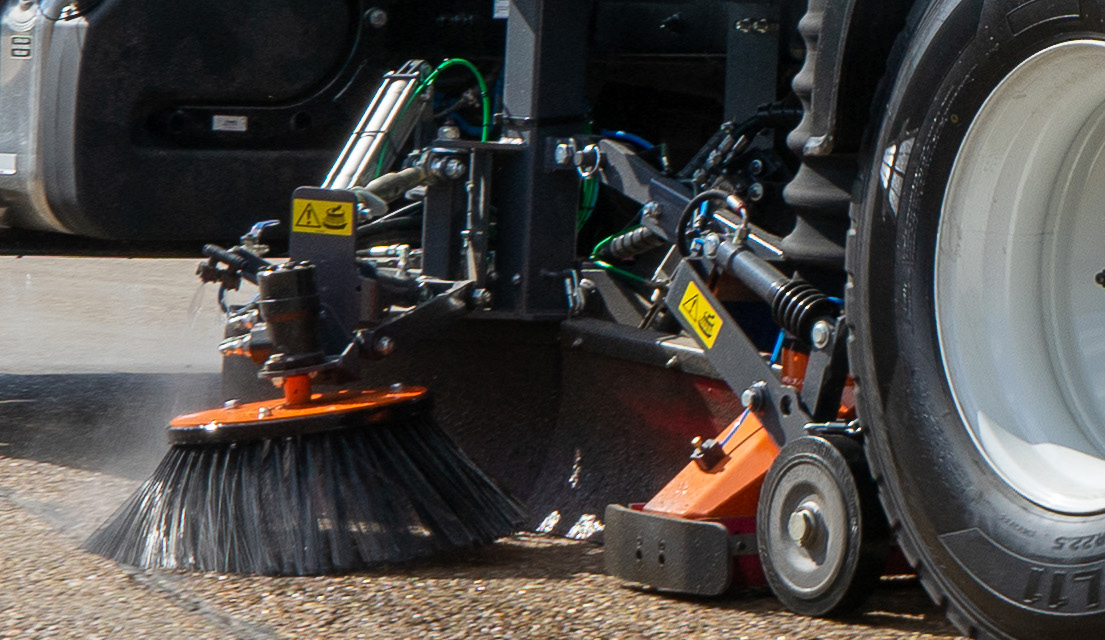

Scarab Maven 65 Street Sweeper Side Broom
Scarab Maven 65 Street Sweeper Low Front Angle

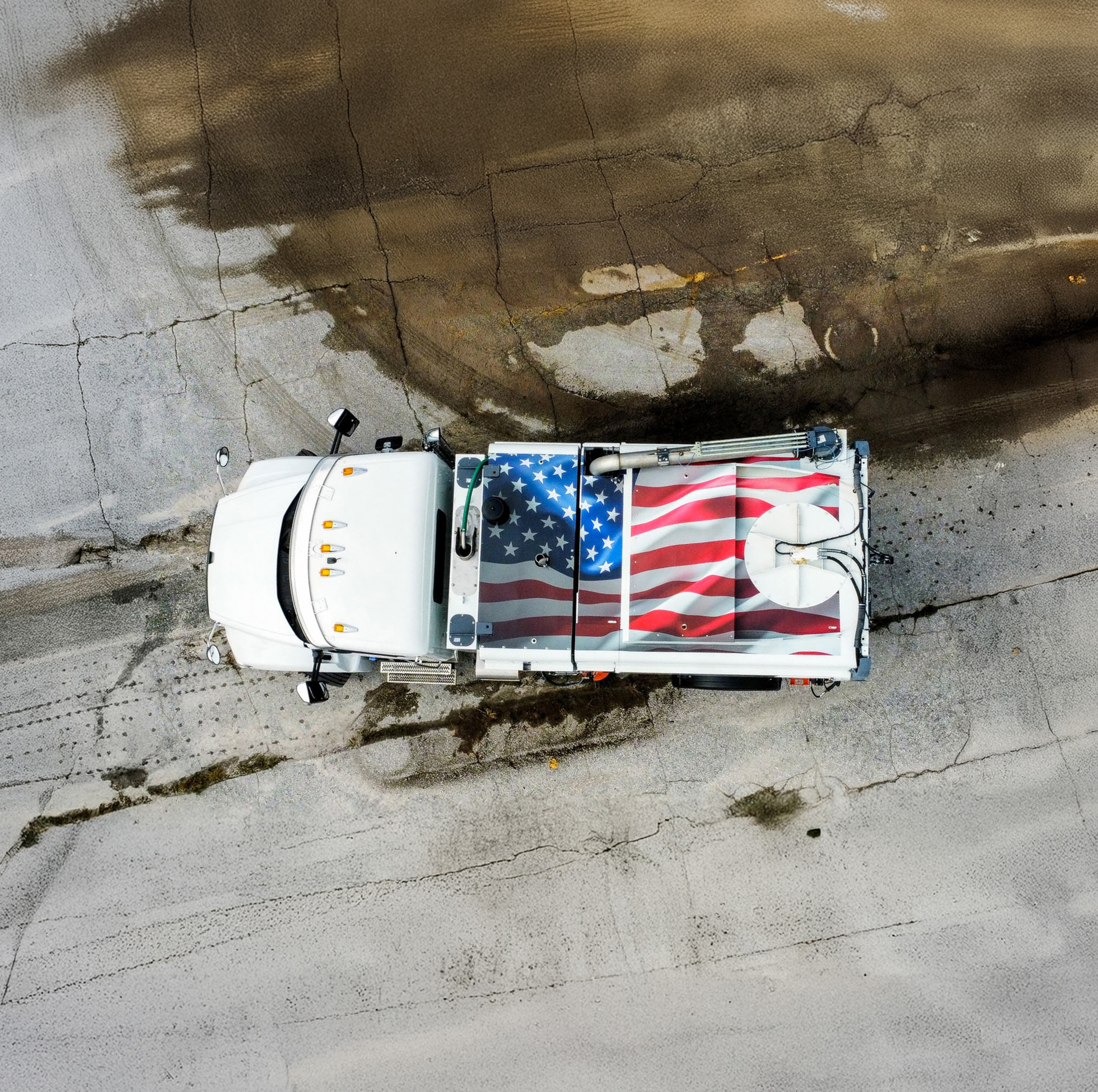

Scarab Maven 65 Street Sweeper Aerial View

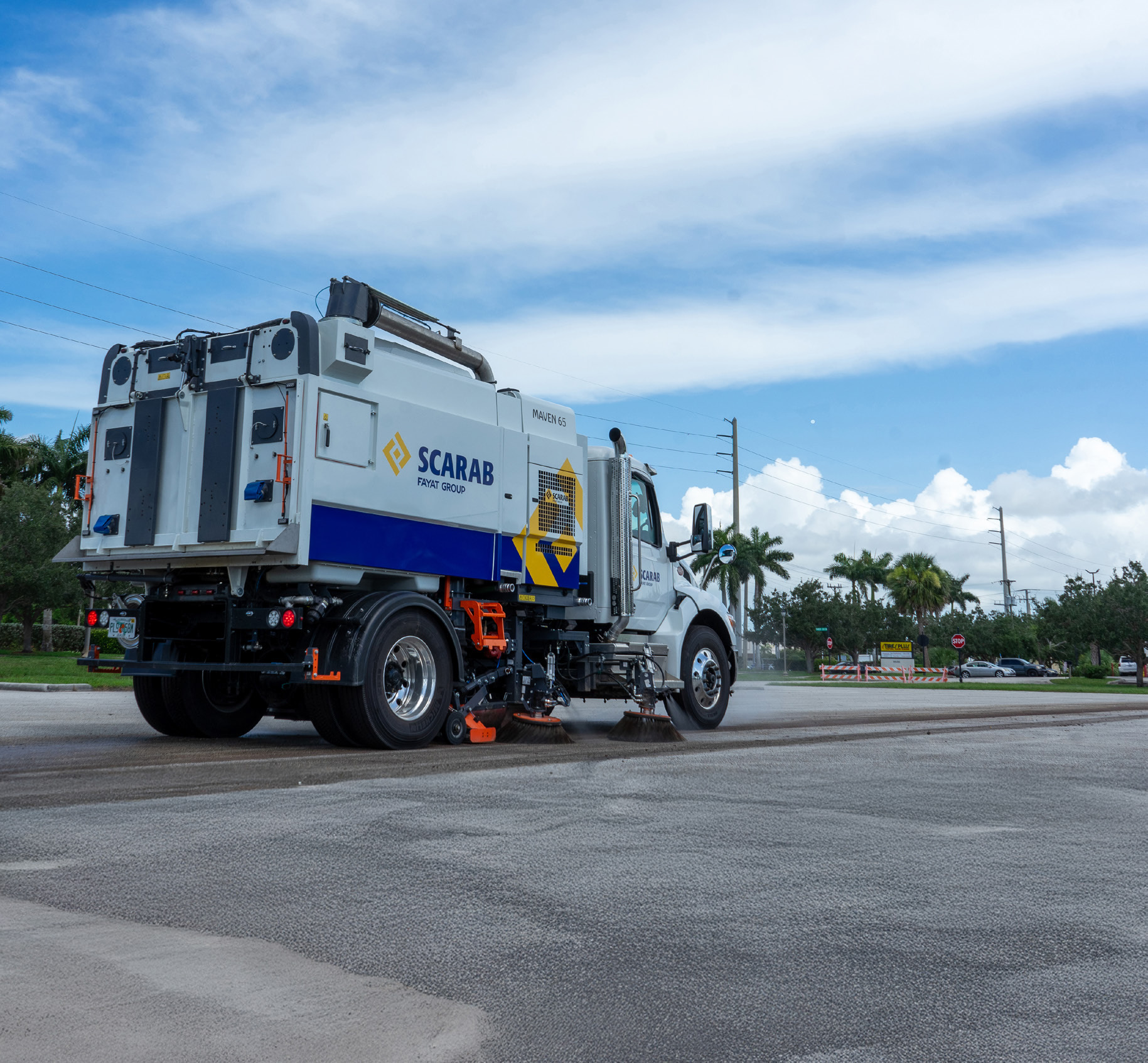

Scarab Maven 65 Street Sweeper Rear Angle

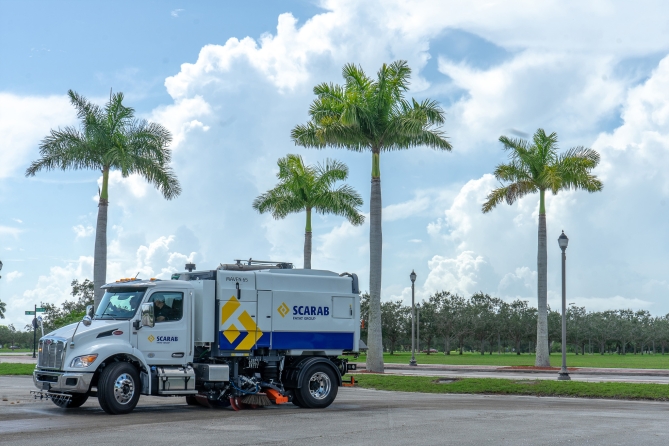

Scarab Maven 65 Street Sweeper Parked

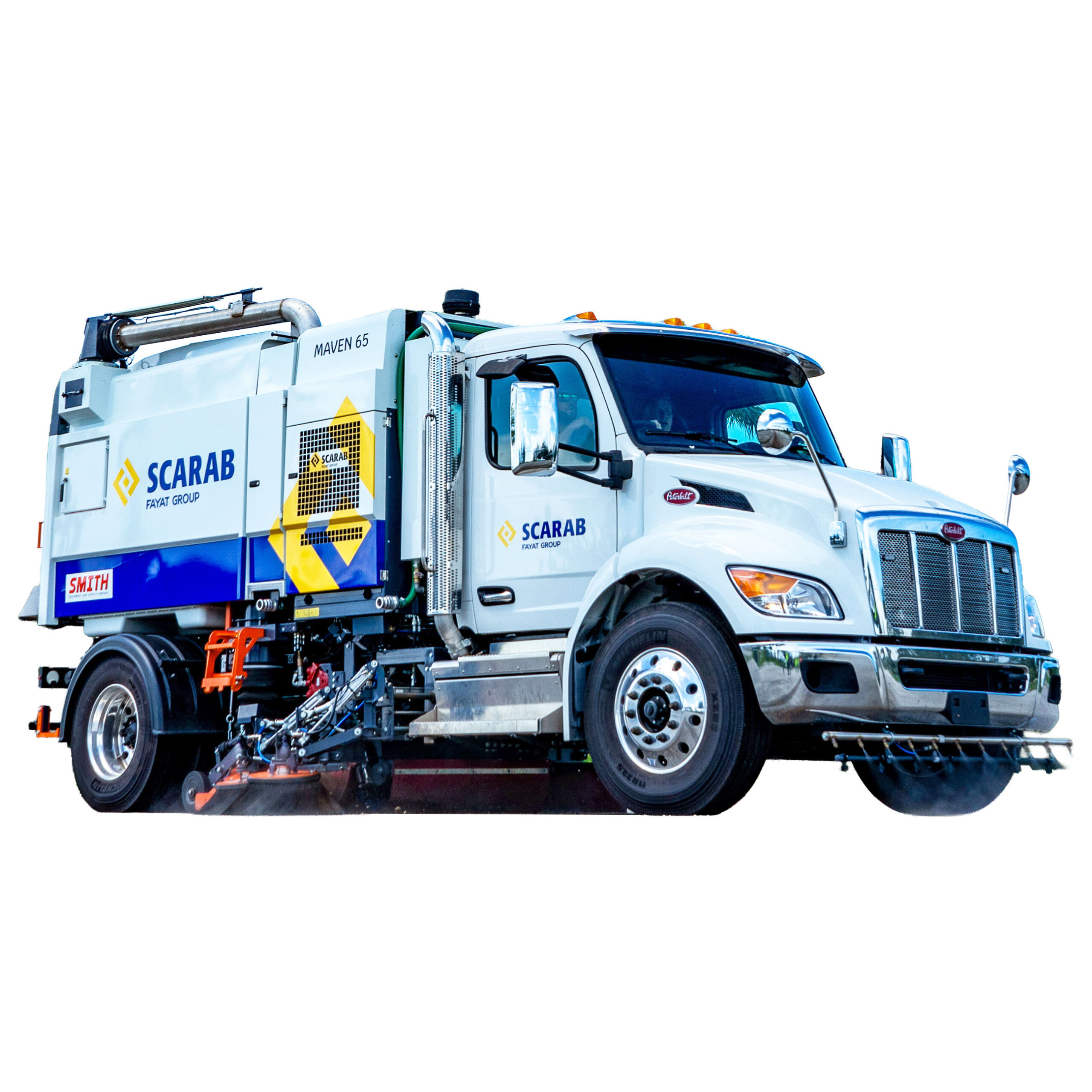

Scarab Maven 65 Street Sweeper

Request Info Schedule Demo

A heavy-duty twin-engine street sweeper, which delivers outstanding performance in municipal areas, parking lots, building works, road resurfacing, and more.

Cleaning Path
142", 94"
Hopper Capacity
8.5 cu yd
Build
Chassis-Mounted

FEATURES & HIGHLIGHTS

FOCUSED ON WHAT MATTERS

The Maven 65 is a heavy-duty, twin-engine, vacuum street sweeper which provides outstanding performance in environments such as muncipal areas, parking lots, building works, road resurfacing, and more.

It is capable of being mounted to virtually any 24,000 – 36,000 lbs. GVW truck chassis.

The Maven 65’s quiet, low-emission Deutz Stage V engine was selected for its ability to provide ample power at low rpm, with reduced fuel consumption, renowned reliability and without the need for Adblue. Its position, in between the hopper and the cab, affords ease of access for servicing.

All engine filters and main service points can be reached from the large service platform.

The Maven 65’s hopper is completely manufactured with 4003 stainless steel for corrosion and abrasion resistance. The hopper is shot blasted, a two-pack epoxy primer is applied, and a hard-wearing topcoat provides a premium finish. The particulate screening is hinged and swings down to provide access to the operator for cleaning. With a build quality like this, SCARAB has no trouble offering a lifetime warranty on both the hopper and water tank.

SPECIFICATIONS

SCARAB MAVEN 65 STREET SWEEPER AT A GLANCE

  • Manufacturer:

  • Class:

  • Power Source:

  • Cleaning Path:

    ,

  • Hopper Capacity:

    8.5 cu yd

  • Sweep Method:

    Vacuum

  • Water Tank Capacity:

  • Engine:

    Deutz Stage V – 55.4kW

  • Build:

    Chassis-Mounted

  • Size:

    25,000 – 36,000 lbs GVW

  • Typical Payload:

    9,920 – 21,000 lbs.

    • *Exact specs may change without notice, or vary based on optional add-ons and features.

    Flexible Broom Coverage

    The Maven 65 is available in both single and dual sweep, covering an impressive 142″ span when working with both side brooms deployed. The brooms can be used at variable speeds and the widesweep swivels to give the operator complete control of sweeping functions.

    The optional third broom provides additional curbside sweep coverage of 40″ and is perfect for weed ripping, without having to use any harmful chemicals.

    DOCUMENTS

    FOR THE SCARAB MAVEN 65 STREET SWEEPER


    Additional information

    Manufacturer

    Class

    Power Source

    Cleaning Path

    ,

    Hopper Capacity

    8.5 cu yd
    Sweep Method

    Vacuum
    Water Tank Capacity

    Engine

    Deutz Stage V – 55.4kW
    Build

    Chassis-Mounted
    Size

    25,000 – 36,000 lbs GVW
    Typical Payload

    9,920 – 21,000 lbs.
