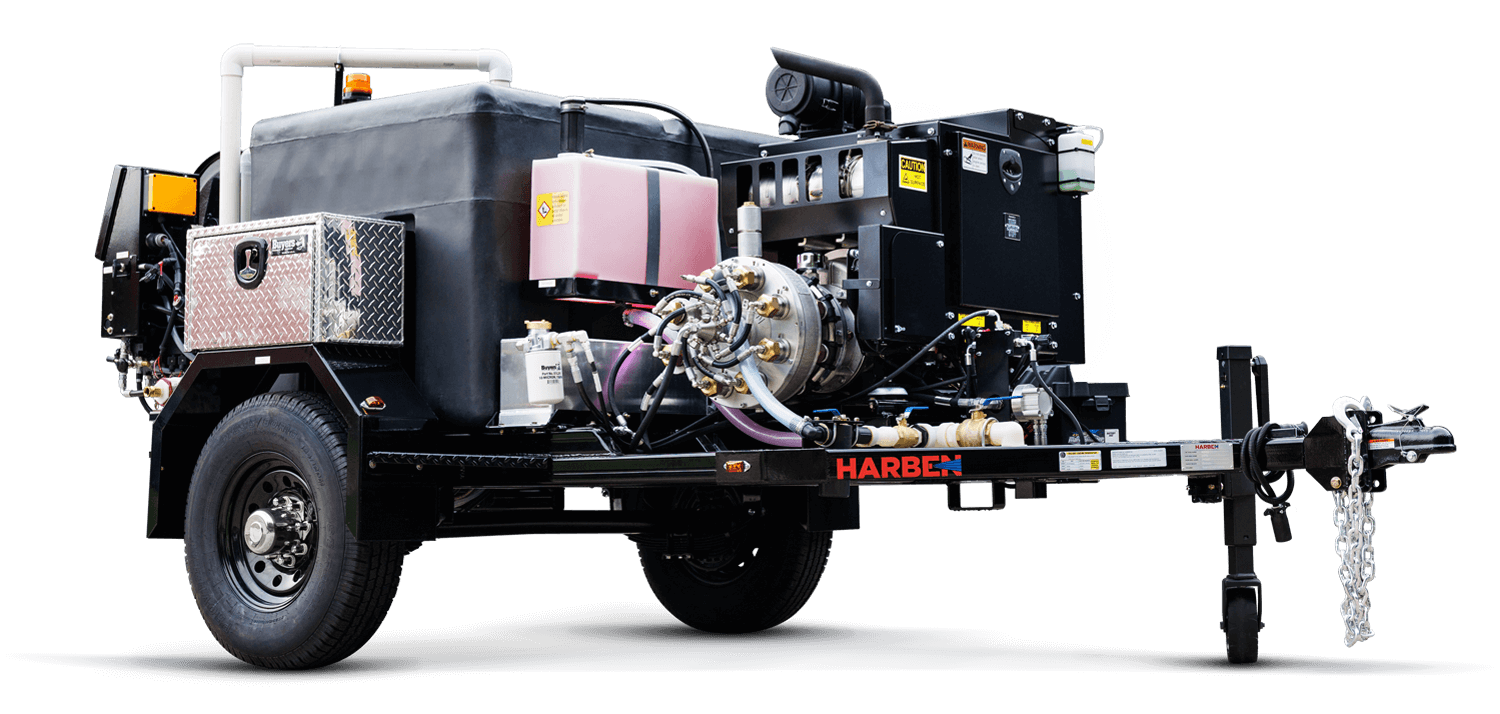

The Harben E-180 trailer is very popular in the jetting industry– for municipalities, private companies, and contractors alike! And it’s well-deserved. This piece of engineering genius is not only cost-effective, it’s reliable, user-friendly, and can be mounted to a compatible trailer of your choice. It’s Harben’s bestselling trailer jetter, and is perfectly suitable for cleaning drains from 1” to 18” in diameter.

Water Tank Capacity
300 Gallons
Power Source
Diesel

FEATURES & HIGHLIGHTS

FOCUSED ON WHAT MATTERS

It incorporates the Harben® ‘P’ type pump producing up to 4000 psi and up to 18 gpm. It has all the same features as the as the E and E-45 trailers and also includes the 180° pivoting hose reel, making access to those ‘hard to get to drains’ a bit easier. The E-180 trailer is built on a rugged 3/16″, single axle, steel tube frame for ease of towing and great maneuverability. The Harben® ‘P’ type pump is covered by an exclusive 5 year warranty, giving you the peace of mind that your investment will always be up and running.

SPECIFICATIONS

HARBEN E-180 JETTER TRAILER AT A GLANCE

  • Manufacturer:

  • Class:

  • Power Source:

  • Country of Origin:

  • Hose Length:

    500 ft

  • Pressure Pump:

    4,000 psi @ 18 GPM

  • Water Tank Capacity:

  • Build:

    Purpose-Built

    • *Exact specs may change without notice, or vary based on optional add-ons and features.

    HARBEN E-180 BENEFITS

    TO MAKE YOUR LIFE EASIER

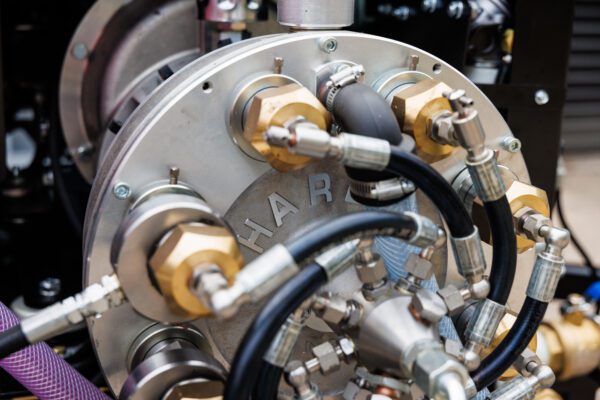

  • Harben® ‘P’ style pump – radial piston design
  • Standard 5-year pump warranty
  • Pressure and flows up to 4,000 psi and up to 18 gpm
  • Tandem axle trailer with electric brakes and 16″ wheels
  • Kubota diesel engine
  • 12 Volt auxiliary outlet
  • Center mounted hose reel
  • Powder coated frame and hose reel
  • Heavy duty 3/16″ steel tubing (frame)
  • UV protected polyethylene tanks
  • Hydraulic hose reel with hose feed guide
  • 300 gallon water capacity
  • Lowest operation and maintenance costs in the industry

    • STANDARD EQUIPMENT & ACCESSORIES

    FOR THE HARBEN E-180

  • 1/2″ x 500 Jetting hose
  • 1/2″ x 10′ Orange leader hose
  • 180° Pivoting hose reel
  • Jump jet pulsation system
  • Anti-freeze tank
  • Camlock adaptor for tank filler
  • Tiger Tail hose feed guide
  • 9″ Drain jet extension
  • 12v Auxiliary outlet
  • Strobe light
  • Chrome wheel rims
  • Training during installation
  • Water selector valve
  • Adjustable 2 5/16″ ball hitch or pintle hitch
  • Manuals – operation & maintenance

    • ADDITIONAL OPTIONS

    FOR THE HARBEN 4018 DSK

  • Jetting nozzle options
  • Unloader valve (dry shut gun)
  • Warthog WS 1/2″ jet package
  • 2 1/2″ Hydrant fitting for tank filler
  • 2″ Jet pump
  • 25′ Fire hose & adaptor
  • Foot control valve
  • Garden hose fill system
  • Hose footage counter
  • LED arrowboard
  • Manhole light

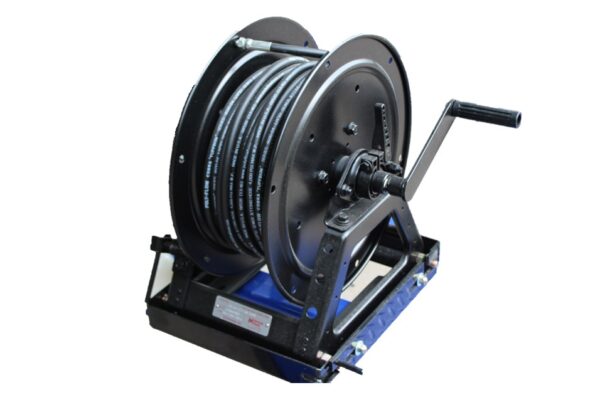

  • Mini jet kit
  • MkII dump gun
  • Gun holder
  • Nozzle holder
  • Pressure relief valve (to replace burst disc)
  • Traffic cone holder
  • Tool box
  • Work station light
  • Non-standard paint colour option

    • DOCUMENTS

    FOR THE HARBEN E-180 JETTER TRAILER



    Additional information

    Manufacturer

    Class

    Power Source

    Country of Origin

    Hose Length

    500 ft
    Pressure Pump

    4,000 psi @ 18 GPM
    Water Tank Capacity

    Build

    Purpose-Built
