FS Nozzle 3D

EXPERT-GRADE NOZZLES | TOUGH-AS-NAILS MUNICIPAL PRODUCTS

Description

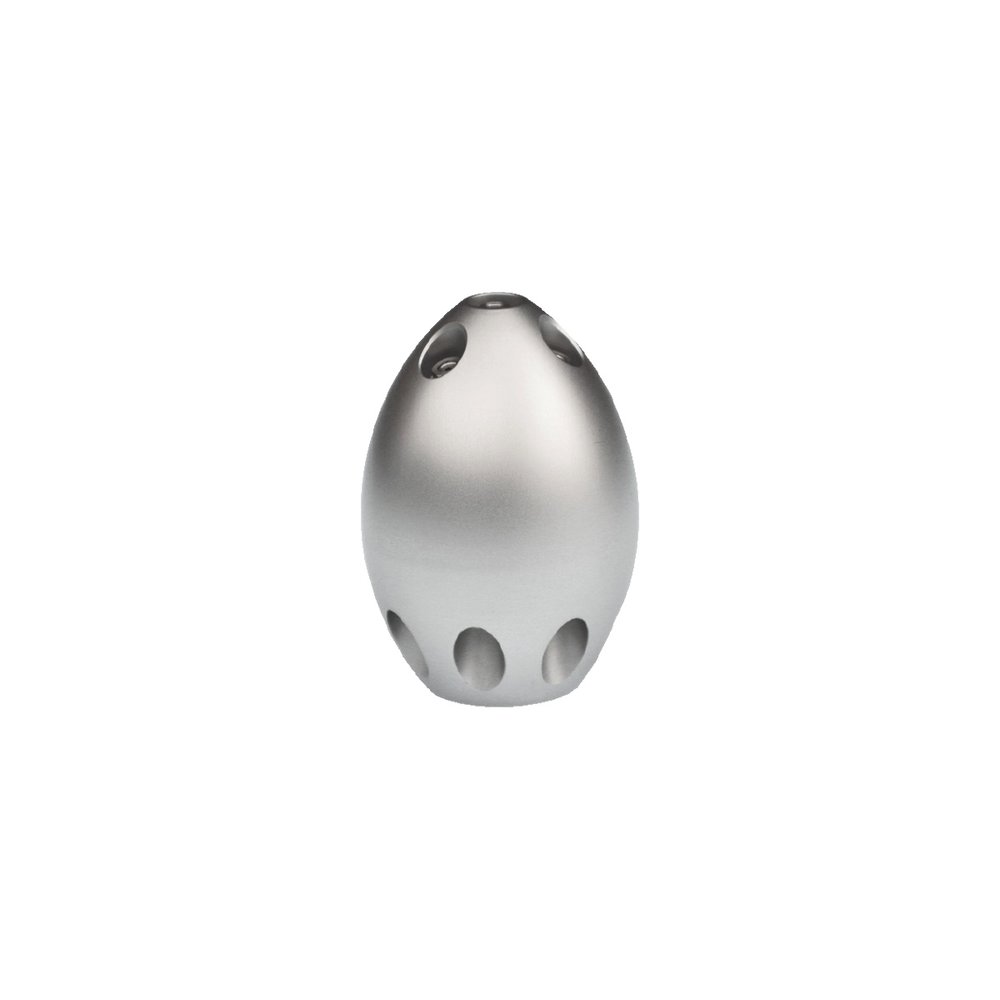

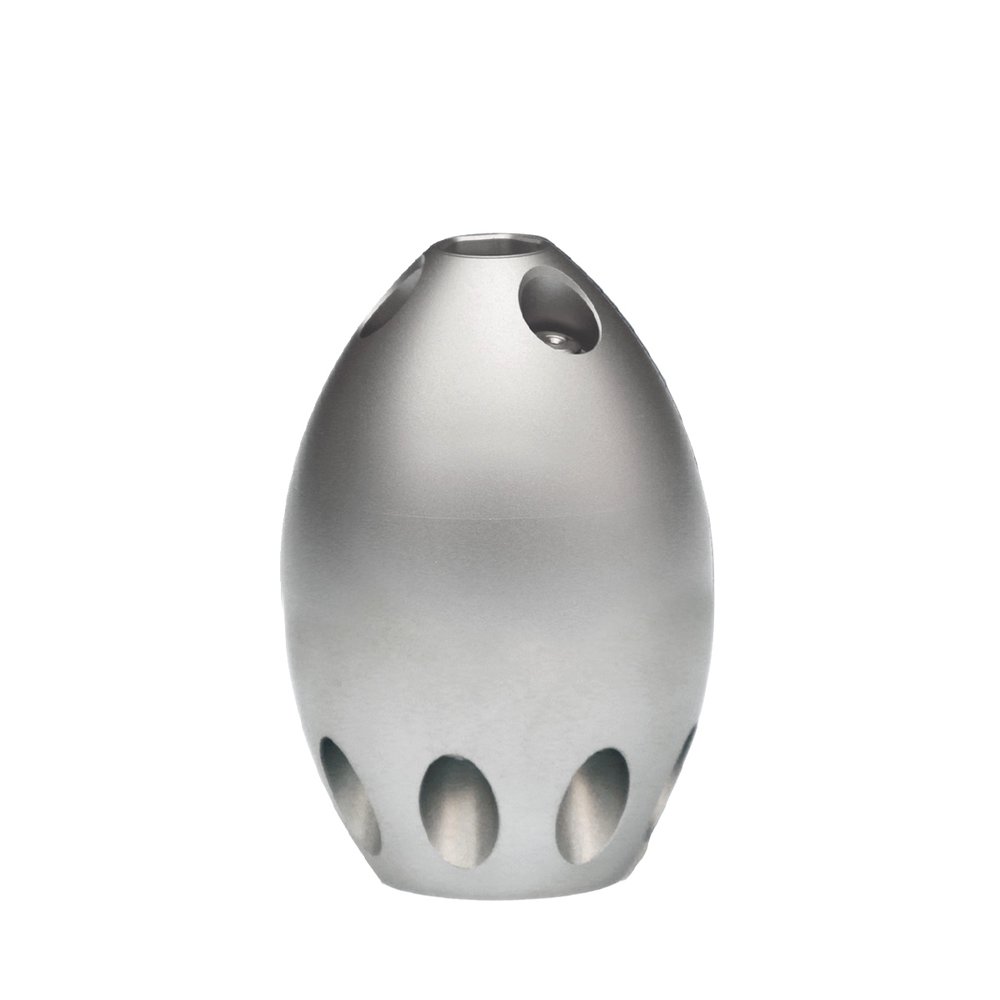

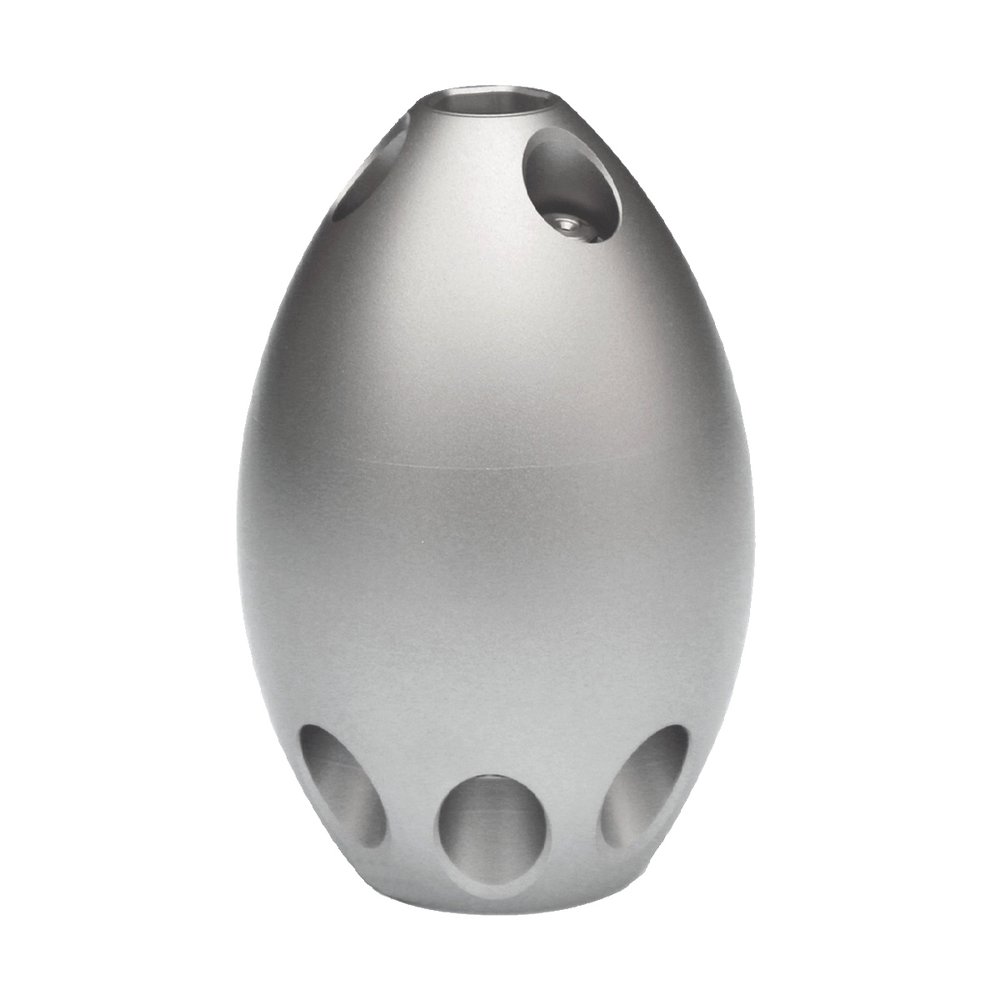

The FS Nozzle 3D with its contoured egg-shaped design was created to be a penetrating nozzle. Made from hardened stainless steel with 3D fluid mechanics, four one-piece ceramic inserts at 0°/15° in front successfully penetrate and open tough blockages. The smooth Egg shape combined with 20° rear propulsion jets enables the nozzle to slide easily down the pipe.

Overview:

  • Round Pipes, Oval Shaped Pipes
  • 3D Fluid Mechanics
  • Recycled Water Approved
  • Tier 3, Tier 2

Product Specs

Part
Number
Hose Con.
(NPT)
GPM/
Minimum
Pipe
Diameter (in)
Dimensions
(L x W)
Weight
(lbs)
Rear
Jets
Front
Jets
Radial
Jets
Product
Tier
11721″606″ – 15″4.13″ x 2.75″3.7484Tier 3
11733/4″306″ – 12″2.95″ x 1.96″1.5484Tier 3
11741/2″144″ – 8″2.36″ x 1.57″0.6664Tier 3
11753/8″82″ – 4″1.96″ x 1.37″0.4454Tier 2
11761/4″62″ – 4″1.57″ x 1.18″0.2264Tier 2
SOURCE: USB-USA, LLC.
