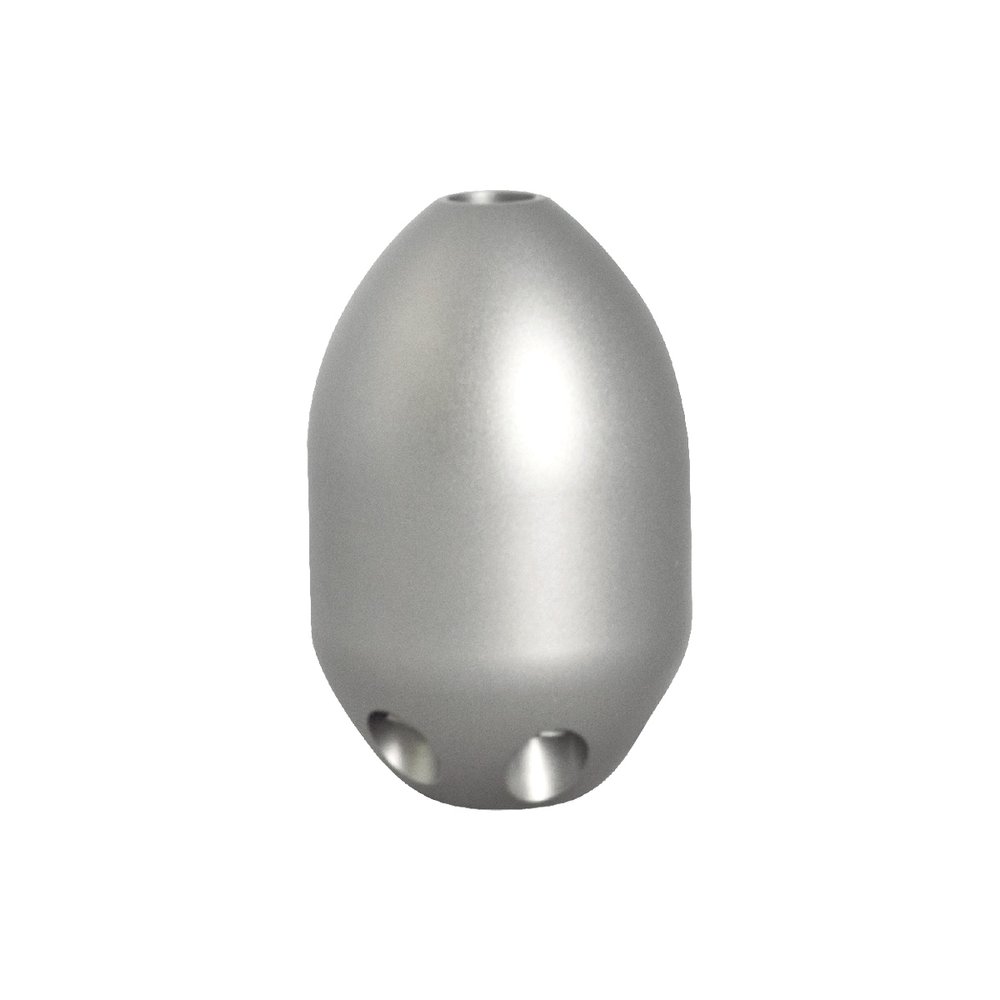

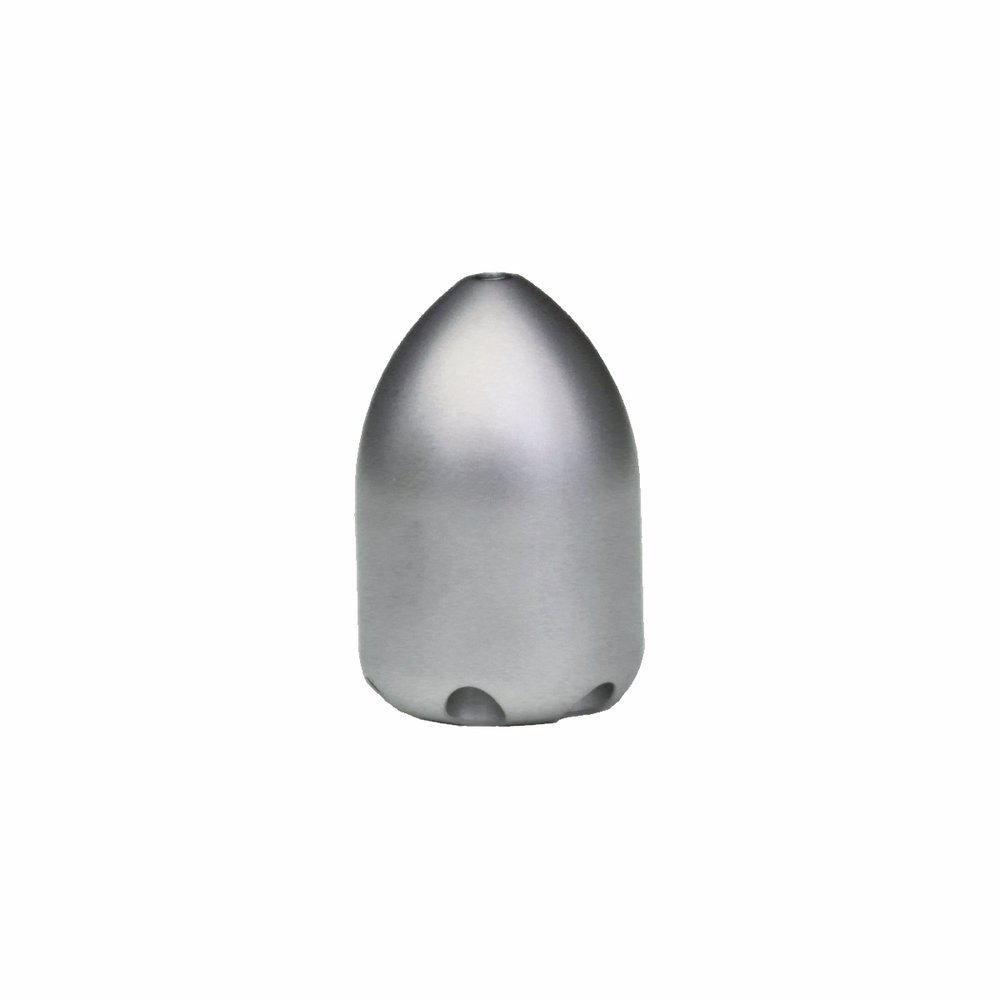

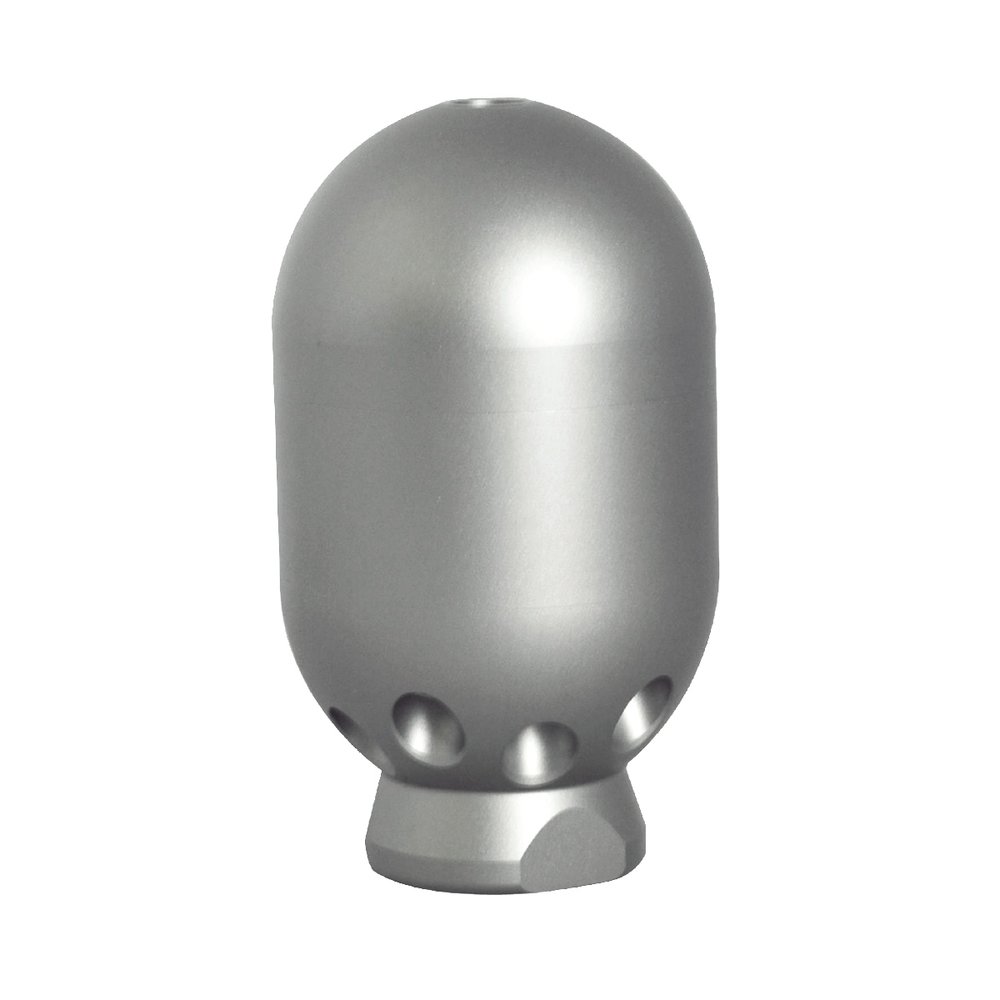

3D Cleaning Nozzle

EXPERT-GRADE NOZZLES | TOUGH-AS-NAILS MUNICIPAL PRODUCTS

Description

The 3D Cleaning nozzle is an excellent sewer cleaning nozzle for everyday use. Hardened stainless steel construction with 3D fluid mechanics and two different rear spraying angles of 15°/25° make this nozzle ideal for general pipe cleaning and preventative maintenance work. A forward spraying jet is also included. This nozzle comes standard with one-piece ceramic inserts.

Overview:

  • Round Pipes
  • 3D Fluid Mechanics
  • Recycle Water Approved
  • Tier 3

Product Specs

Part
Number
Hose Con.
(NPT)
GPM/
Minimum
Pipe
Diameter (in)
Dimensions
(L x W)
Weight
(lbs)
Rear
Jets
Front
Jets
Radial
Jets
Product
Tier
1052 1″ 60 8″ – 24″ 7.08″ x 3.14″ 8.81 10 1 Tier 3
1055 1″ 60 8″ – 24″ 4.72″ x 3.14″ 6.17 10 1 Tier 3
1060 1″ 50 6″ – 15″ 4.92″ x 2.75″ 4.85 8 1 Tier 3
1063 3/4″ 30 6″ – 10″ 4.13″ x 2.75″ 3.96 8 1 Tier 3
1070 3/4″ 30 6″ – 10″ 3.74″ x 2.36″ 2.64 8 1 Tier 3
1062 1/2″ 18 4″ – 8″ 4.13″ x 2.75″ 3.96 6 1 Tier 3
1071 1/2″ 18 4″ – 8″ 3.74″ x 2.36″ 2.64 6 1 Tier 3
1075 1/2″ 12 4″ – 8″ 2.36″ x 1.57″ 0.66 6 1 Tier 3
SOURCE: USB-USA, LLC.
