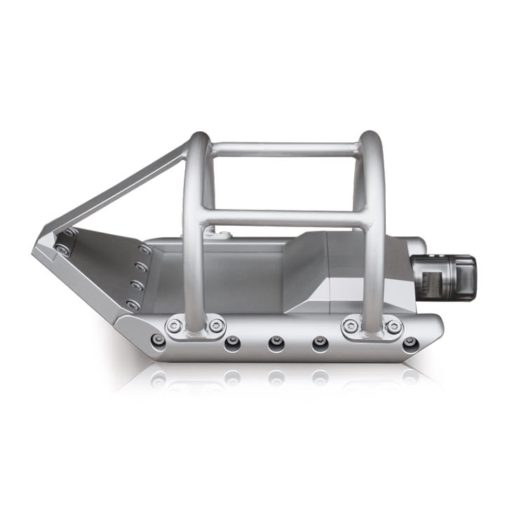

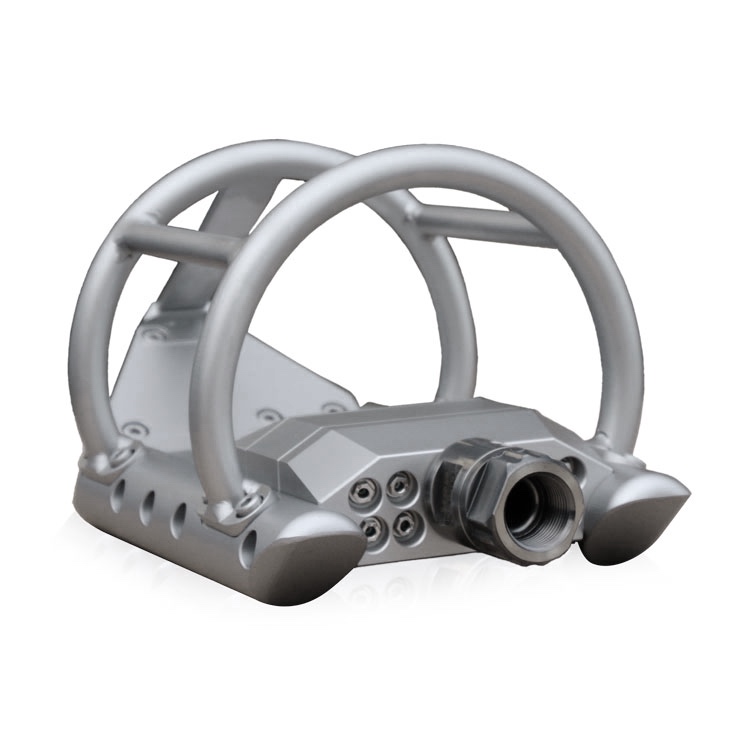

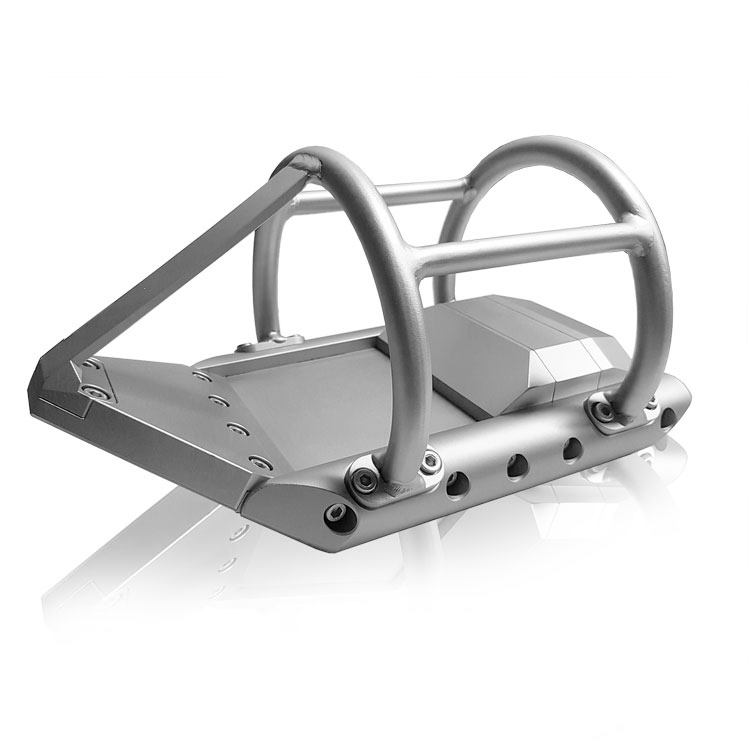

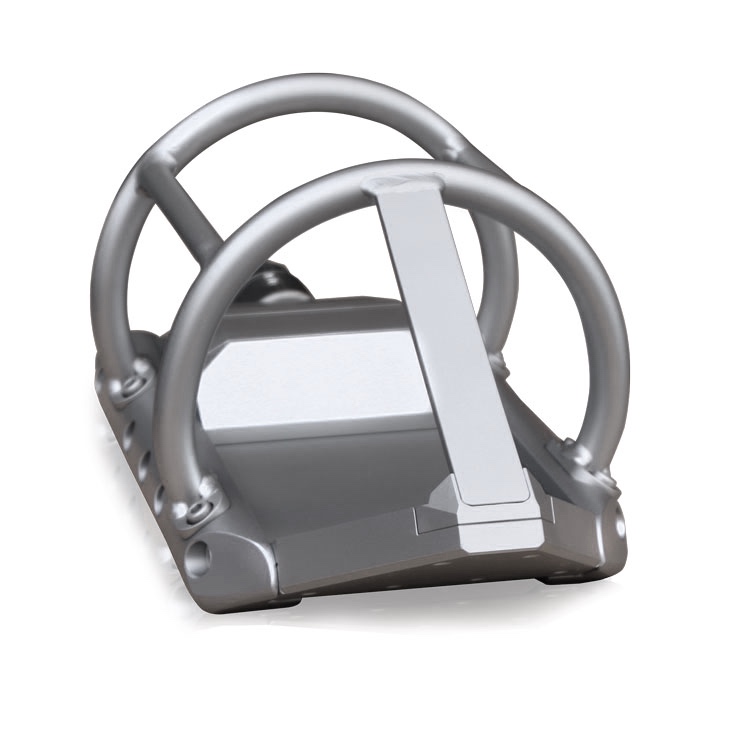

Storm Surge

EXPERT-GRADE NOZZLES | TOUGH-AS-NAILS MUNICIPAL PRODUCTS

Description

A highly efficient floor cleaner made of hardened stainless steel, the Storm Surge has a built-in power manifold with 3D Fluid Mechanics. This combination produces an intense and forceful jet pattern, providing outstanding excavation, traction and transportation of materials – even under water! Roll over bars enable this nozzle to return to it’s correct position every time. One piece-ceramic inserts and a high-pressure swivel come standard on the Storm Surge.

Overview

  • Large Round Pipe. Flat Bottom Pipe. Box Culverts.
  • 3D Fluid Mechanics
  • Recycled Water Approved
  • Tier 3

Product Specs

Part
Number
Hose Con.
(NPT)
GPM/
Minimum
Pipe
Diameter (in)
Dimensions
(L x W)
Weight
(lbs)
Rear
Jets
Front
Jets
Radial
Jets
Product
Tier
30063/4″- 1″3012″ – 15″20.80″ x 8.1″216Tier 3
30081″- 1 1/4″4015″ – 30″20.80″ x 9.00″408Tier 3
30101″- 1 1/4″6018″ – 40″20.80″ x 11.3″5610Tier 3
30141″- 1 1/4″8020″ – 96″20.80″ x 11.8″6014Tier 3
SOURCE: USB-USA, LLC.
