Schwarze SuperVac Super Updraft Sweeper

The Schwarze SuperVac Super Updraft is a low-profile pickup mounted sweeper perfectly sized for congested surface lots and narrow city or campus streets. Its 3.0 cubic yard hopper is constructed of welded stainless steel and dumps at 69″, easily emptying into standard 4 and 6 cubic yard dumpsters and nearly all roll offs. Ford and Chevrolet 3/4 ton chassis are available.

Cleaning Path
80"
Hopper Capacity
3 cu yd
Build
Chassis-Mounted

FEATURES & HIGHLIGHTS

FOCUSED ON WHAT MATTERS

The Super Updraft expands on the already popular Updraft with an additional cubic yard of hopper capacity, while keeping a low height of 6’10” and weight below the chassis’ GVW rating when full. The design includes several new features including larger dual storage lockers and a choice of one of three auxiliary engine options on a Three Quarter Ton V8 chassis. The Super Updraft fulfills the needs of the customers that require more capacity in a low profile package. The low profile is ideal for parking garages and areas where height is a concern.

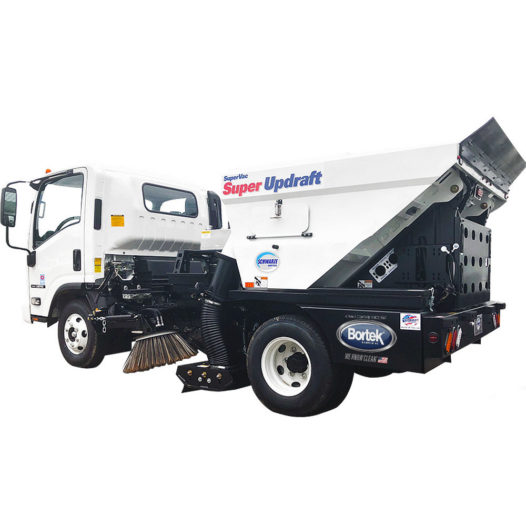

The Schwarze SuperVac Super Updraft Cabover is mounted on an Isuzu NPR chassis, your choice of 14,500 lb. or 12,000 lb. GVW. It offers unparalleled visibility and maneuverability and is sweeper perfectly sized for congested surface lots and narrow city or campus streets. It’s 3.0 cubic yard hopper is constructed of welded stainless steel and dumps at 69″, easily emptying into standard 4 and 6 cubic yard dumpsters and nearly all roll offs.

SPECIFICATIONS

SCHWARZE SUPERVAC SUPER UPDRAFT SWEEPER AT A GLANCE

  • Manufacturer:

  • Class:

  • Power Source:

  • Cleaning Path:

  • Hopper Capacity:

    3 cu yd

  • Sweep Method:

    Regenerative Air

  • Country of Origin:

  • Water Tank Capacity:

  • Build:

    Chassis-Mounted

  • *Exact specs may change without notice, or vary based on optional add-ons and features.

    Powered by a 25 HP Briggs & Stratton air cooled cast iron sleeved auxiliary engine with three-year warranty, its Whisper Wheel turbine fan and 81″ pickup head delivers fast, quiet and complete surface cleaning. A left hand 26″ free floating side broom effectively cleans gutters and extends its sweep path to 94″. Popular options include a dust suppression water system, polyethylene tool box, rear trash bag rack, cab mounted strobe light, extra flood light and curb blower. All Schwarze products are American made in an ASQ/ANSI/ISO 9001:2105 Standard quality system certified facility in Huntsville, Alabama.

    SCHWARZE SUPER UPDRAFT BENEFITS

    TO MAKE YOUR LIFE EASIER

  • Low Profile
  • Vertical Digger Broom
  • WhisperWheel Fan Technology
  • Full Size Sweeping Head
  • Stainless Steel Welded Construction
  • All LED Lighting
  • Large Water Capacity
  • Optional Curb Blower Available


  • DOCUMENTS

    FOR THE SCHWARZE SUPERVAC SUPER UPDRAFT SWEEPER

    Additional information

    Manufacturer

    Class

    Power Source

    Cleaning Path

    Hopper Capacity

    3 cu yd

    Sweep Method

    Regenerative Air

    Country of Origin

    Water Tank Capacity

    Build

    Chassis-Mounted

    Title Type Size
    Schwarze Family Catalog application/pdf 23 MB
    Schwarze Supervac Super Updraft Brochure application/pdf 4 MB
    Schwarze Supervac Super Updraft Cabover Brochure application/pdf 2 MB
