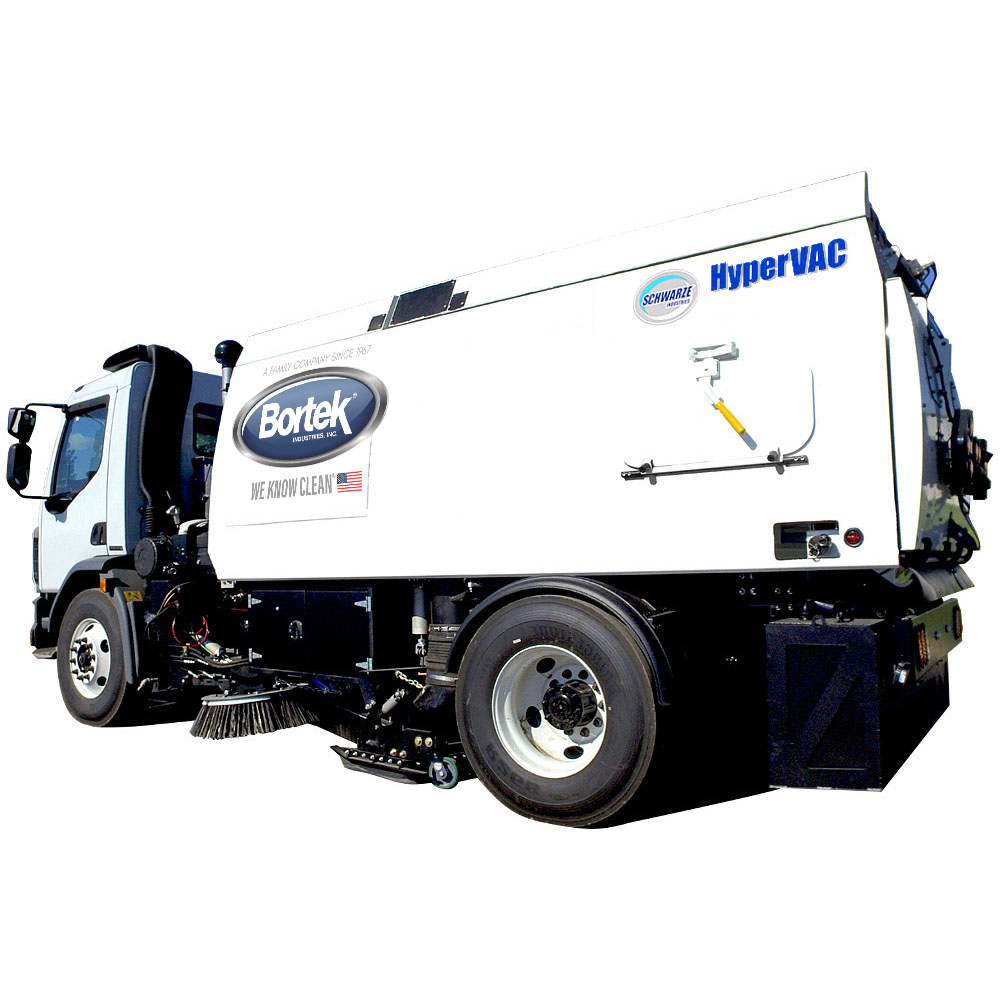

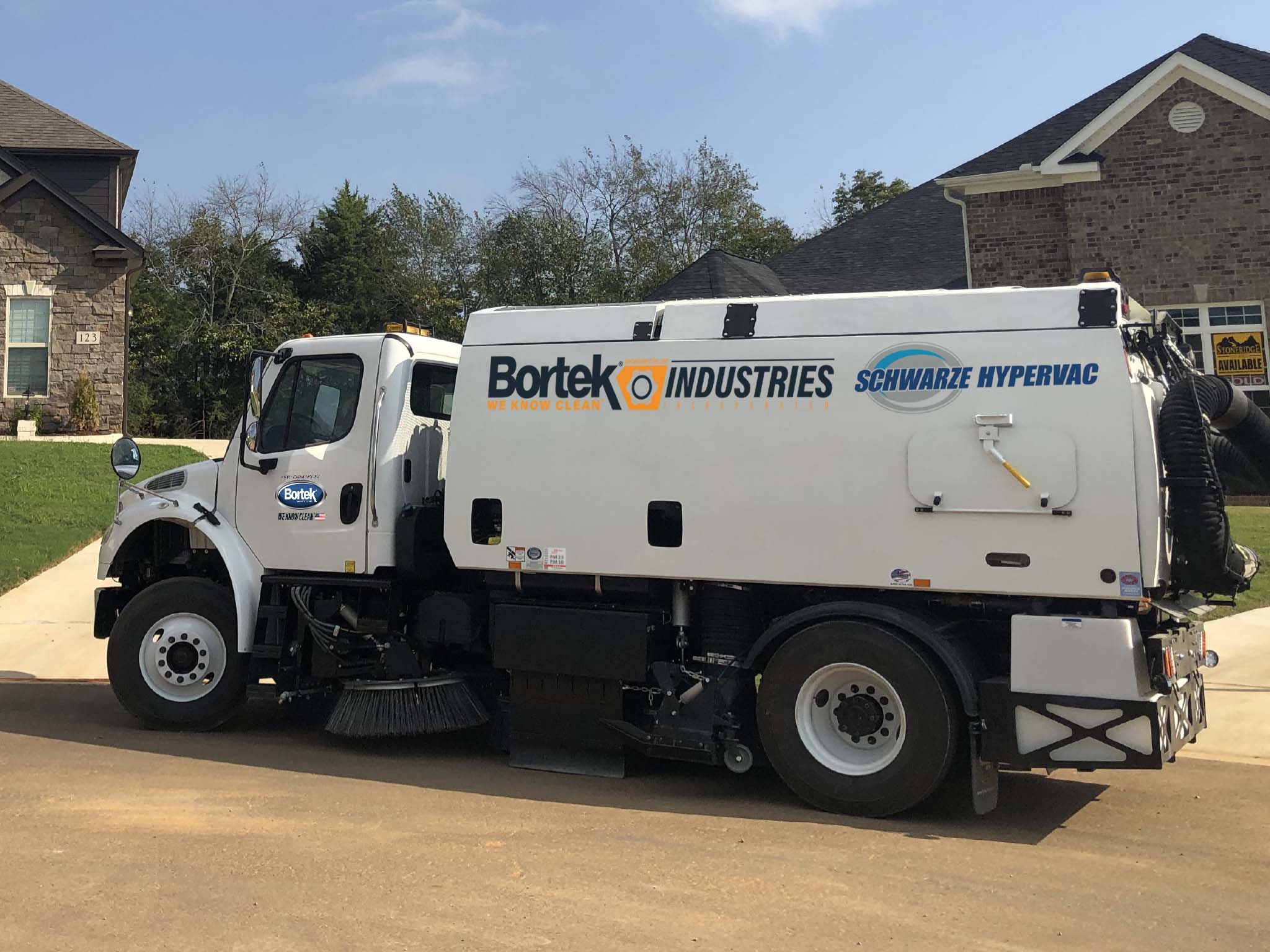

Schwarze HyperVac Street Sweeper

The Schwarze HyperVac takes full vacuum street sweeping to a whole new level with its exclusive Surface Scrubbing Technology. Three disk type brooms replace the traditional belly broom to provide extraordinary surface cleaning while eliminating the expensive effect of broom coning and transfer broom carry-over. At a mere 10′ overall height, it operates below the tree canopy yet exceeds the capacities of all others in its class with a 134 HP auxiliary engine, an 8.4 cubic yard hopper, 39″ digger type gutter brooms, up to 600 gallon water capacity and 25% more spray nozzles.

Cleaning Path
138"
Hopper Capacity
8 cu yd
Build
Chassis-Mounted

FEATURES & HIGHLIGHTS

FOCUSED ON WHAT MATTERS

When Schwarze decided to enter the highly competitive pure vacuum sweeper market with the HyperVac, they did not want to be yet another manufacturer to provide yet another traditional pure vacuum sweeper. So Schwarze set out to change the pure vacuum sweeping technology to keep the desirable vacuum sweeper features such as the ability to remove fines from gutters and pervious pavement while overcoming some of the typical pure vacuum sweeper drawbacks such as noise, dust emissions and poor transfer broom performance. To eliminate these drawbacks Schwarze addressed some key functions in several areas with exciting new technologies. Noise is reduced by traditional absorption methods and a unique tortuous path sound attenuator.

The Schwarze HyperVAC utilizes multiple fugitive dust control strategies, including water, debris deceleration through deflection, cyclonic separation, and finally the tortuous path fan noise attenuator is also a dust separator that empties when the hopper is dumped. The most radical departure from the traditional vacuum sweeper is the Patent Pending Schwarze Vertical digger broom transfer array. Schwarze Industries introduced the new revolutionary Schwarze HyperVAC pure vacuum sweeper at the PWX show in Orlando, Florida. Introducing an entirely new material transfer system and dust separation that reduces the release of contaminant air typically seen in pure vacuum sweepers.

SPECIFICATIONS

SCHWARZE HYPERVAC STREET SWEEPER AT A GLANCE

  • Manufacturer:

  • Class:

  • Power Source:

  • Cleaning Path:

  • Hopper Capacity:

    8 cu yd

  • Sweep Method:

    Vacuum

  • Maximum Speed:

    Highway Speeds

  • Country of Origin:

  • Water Tank Capacity:

    250 Gallons

  • Build:

    Chassis-Mounted

  • *Exact specs may change without notice, or vary based on optional add-ons and features.

    The HyperVac’s hopper hydraulically tilt dumps requiring no raker bar. Replaceable fan housing liners greatly reduce maintenance expense. Popular options include the most powerful catch basin cleaning system in the industry, high pressure hopper deluge hopper cleaning system and an extra 350 gallon water tank. Like all Schwarze sweepers, the HyperVac is built in an ASQ/ANSI/ISO 9001:2105 Standard quality system certified facility.

    SCHWARZE HYPERVAC BENEFITS

    TO MAKE YOUR LIFE EASIER

  • Twin Engine Design
  • High Strength Stainless Steel Rear Dump Hopper
  • 134 HP Cummins Auxiliary Engine Tier 4 Final
  • Engine Access Door | Daily Maintenance
  • Full Color Sweeper Status and Information Display screen
  • CAN Bus Control System
  • Dual Hopper Access Doors
  • Dual 39-Inch Gutter Brooms
  • Schwarze Exclusive Digger Broom Transfer System
  • Multi Stage Dust Separation System
  • Back Up Alarm


  • DOCUMENTS

    FOR THE SCHWARZE HYPERVAC STREET SWEEPER



    Additional information

    Manufacturer

    Class

    Power Source

    Cleaning Path

    Hopper Capacity

    8 cu yd

    Sweep Method

    Vacuum

    Maximum Speed

    Highway Speeds

    Country of Origin

    Water Tank Capacity

    250 Gallons

    Build

    Chassis-Mounted

    Title Type Size
    Schwarze Family Catalog application/pdf 23 MB
    Schwarze Hypervac Brochure application/pdf 4 MB
