Schwarze A7 Zephyr Street Sweeper

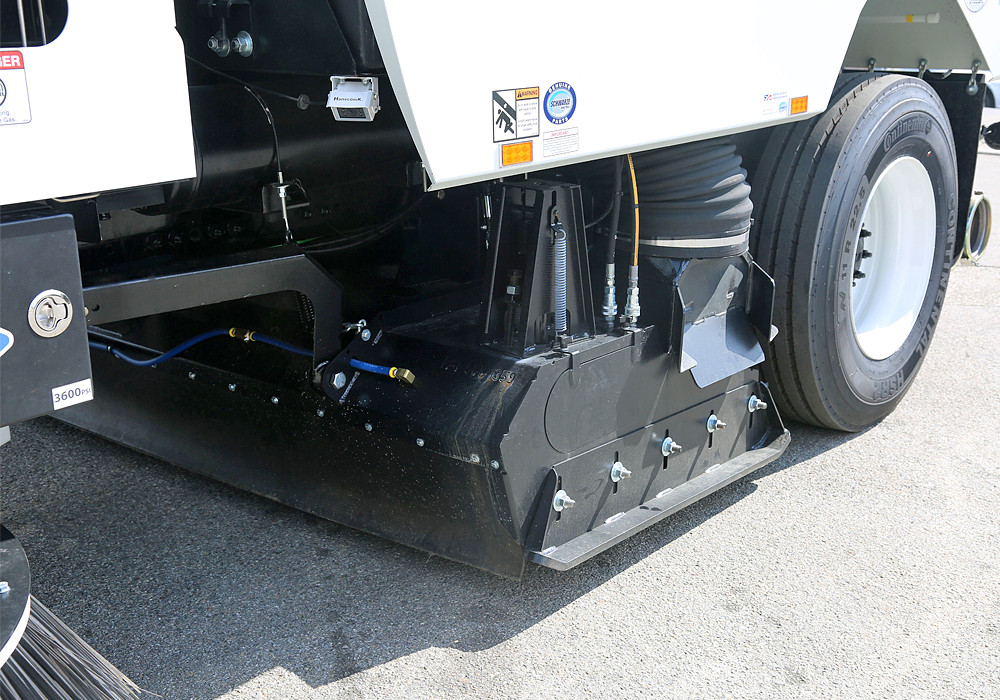

The Schwarze A7 Zephyr is is specifically designed and certified by the FAA for high-speed runway sweeping. The broom assist pickup head can be positioned at a windrow angle. Optional fixed or rotating side blast nozzles blow lighter debris. Poly, rather than steel, side brooms are standard.

Cleaning Path
144"
Hopper Capacity
8.4 cu yd
Build
Chassis-Mounted

FEATURES & HIGHLIGHTS

FOCUSED ON WHAT MATTERS

FOD or foreign object debris can wreak havoc on aircraft and has been shown to cost the industry more than $10 Billion in damage, delays and disgruntled customers. Sweeping has been shown to be one of the best management practices to reduce FOD from runways and tarmac areas and nothing does this better than the Schwarze Model A7 Zephyr high speed runway sweeper. The A7 Zephyr was designed to meet the rigorous demand standards of the Department of Defense high speed sweeping requirements for quickly and effectively removing FOD. The A7 Zephyr incorporates three distinct FAA approved methods for FOD removal in one packaged unit: 1) vacuum and brush removal of debris 2) powerful truck mounted magnet to collect ferrous material and 3) high velocity blast air to push material from surface.

The Schwarze A7 Zephyr exceeds the capacities of all others in its class with a 134 HP auxiliary engine, an 8.4 cubic yard hopper, 56 degree dump angle, 44″ gutter brooms, up to 600 gallon water capacity and 25% more spray nozzles.

SPECIFICATIONS

SCHWARZE A7 ZEPHYR STREET SWEEPER AT A GLANCE

  • Manufacturer:

  • Class:

  • Power Source:

  • Cleaning Path:

  • Hopper Capacity:

    8.4 cu yd

  • Sweep Method:

    Regenerative Air

  • Maximum Speed:

    Highway Speeds

  • Country of Origin:

  • Water Tank Capacity:

    250 Gallons

  • Build:

    Chassis-Mounted

  • Its Whisper Wheel 10-blade closed radial fan technology out performs all others while operating at up to 70% lower noise levels than the rest of the class. The A7 sweeps in forward or reverse without optional axle chains, hydraulically tilt dumps with no raker bar and provides 40% more screen area than its nearest competitor.

    Popular options include a lifetime warrantied stainless steel hopper, extra 350 gallon water tank, increased gutter broom usability via Gutter Broom Extension Override (GEO) and an 8′ auxiliary hand hose for cleaning tight areas. Like all Schwarze sweepers, the A7 Zephyr is American made in an ASQ/ANSI/ISO 9001:2105 Standard quality system certified facility in Huntsville, Alabama.

    SCHWARZE A7 ZEPHYR BENEFITS

    TO MAKE YOUR LIFE EASIER

    • Whisper Wheel 30-Inch Radial Turbine Blower
    • CAN Bus Control System
    • Rear Vision Camera System
    • 12-Inch Intake Tubes
    • Full Color Sweeper Status and Information Display screen
    • Back Up Alarm
    • Extra large Rear Dump Hopper
    • Dual 44″-Inch Gutter Brooms
    • Gutterbroom Tilt
    • Dual Hopper Access Doors
    • Mechanipneumatic Runway pickup head



    DOCUMENTS

    FOR THE SCHWARZE A7 ZEPHYR STREET SWEEPER



    Additional information

    Manufacturer

    Class

    Power Source

    Cleaning Path

    Hopper Capacity

    8.4 cu yd

    Sweep Method

    Regenerative Air

    Maximum Speed

    Highway Speeds

    Country of Origin

    Water Tank Capacity

    250 Gallons

    Build

    Chassis-Mounted

    Title Type Size
    Schwarze Family Catalog application/pdf 23 MB
    Schwarze A7 Zephyr Brochure application/pdf 4 MB
