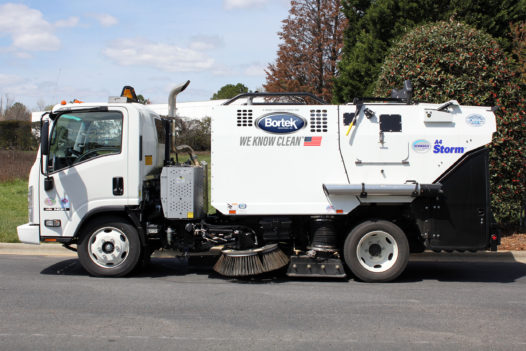

Schwarze A4 Storm Street Sweeper

The Schwarze A4 Storm is a compact, non-CDL chassis mounted regenerative air street sweeper that is ideal for smaller towns, university campuses and large industrial complexes. Its Isuzu NPR chassis offers unmatched maneuverability, operator visibility and comfort.

Cleaning Path
120"
Hopper Capacity
4.5 cu yd
Build
Chassis-Mounted

FEATURES & HIGHLIGHTS

FOCUSED ON WHAT MATTERS

The enhanced A4 Storm is a full-size regenerative air street sweeper in a compact, super-maneuverable package. When it comes to features and performance, the A4 Storm meets or exceeds all similar competitor models in the major performance categories including dump height, water capacity, broom size, sweep width, ergonomics and, above all, sweeping performance. With its short wheelbase, high maneuverability, and full-size sweeper performance, the A4 Storm is uniquely positioned to excel at construction site cleanup where space is limited.

The enhanced A4 Storm has a large, full-size, high-performance sweeping head and fan system and features large, corrosion-resistant polymer tool boxes. Its standard water system of 130 gallons can be supplemented with an optional additional 66-gallon tank, taking the unit’s capacity to 196 gallons.

SPECIFICATIONS

SCHWARZE A4 STORM STREET SWEEPER AT A GLANCE

  • Manufacturer:

  • Class:

  • Power Source:

  • Cleaning Path:

  • Hopper Capacity:

    4.5 cu yd

  • Sweep Method:

    Regenerative Air

  • Maximum Speed:

    Highway Speeds

  • Country of Origin:

  • Water Tank Capacity:

  • Build:

    Chassis-Mounted

  • *Exact specs may change without notice, or vary based on optional add-ons and features.

    The large 4.5 cubic yard hopper dumps to a height of 77″ at 88 degrees emptying completely into standard sized dumpsters and roll off containers. Large 39″ vertical steel digger type gutter brooms are hydraulically driven with automatic wear adjustment and manual or in-cab tilt control. Air hoses are 12′ diameter, 3/8″ thick wire reinforced molded rubber with quick disconnect clamps. Dust is controlled with a 130 gallon (optional 196 gallon) water tank and electric diaphragm run-dry capable pump spray system through 12 spray nozzles.

    Popular options include additional water capacity, lifetime hopper warranty, gutter groom extension override (GEO) and a hand hose for hard to reach areas. All Schwarze products are manufactured in an ASQ/ANSI/ISO 9001:2105 Standard quality system certified facility.

    SCHWARZE A4 BENEFITS

    TO MAKE YOUR LIFE EASIER

  • Recessed Gutter Broom Discs Lowers cost of operation by reducing twine to wrap on GB motor.
  • Increased broom surface area enables transfer of debris to the sweeping head from a greater distance.
  • Versatility in various applications. While eliminating the need for a center broom.
  • Large 3.6 usable hopper capacity means less dumping and more sweeping.
  • Large dump door allows clean dumping even in packed leaves.
  • High flow lift system allows fast dump cycle speeds.
  • Bolt in Pressure and Transition Tubes for longer life expectancy; reduced cost of ownership
  • Backup Alarms Alerts pedestrians and vehicles of reverse motion.
  • One to Three Remote Cameras with In-cab video Monitor for maximum safety


  • DOCUMENTS

    FOR THE SCHWARZE A4 STORM STREET SWEEPER



    Additional information

    Manufacturer

    Class

    Power Source

    Cleaning Path

    Hopper Capacity

    4.5 cu yd

    Sweep Method

    Regenerative Air

    Maximum Speed

    Highway Speeds

    Country of Origin

    Water Tank Capacity

    Build

    Chassis-Mounted

    Title Type Size
    Schwarze A4 Storm Brochure application/pdf 7 MB
    Schwarze Family Catalog application/pdf 23 MB
