Flounder Nozzle 3D

EXPERT-GRADE NOZZLES | TOUGH-AS-NAILS MUNICIPAL PRODUCTS

Description

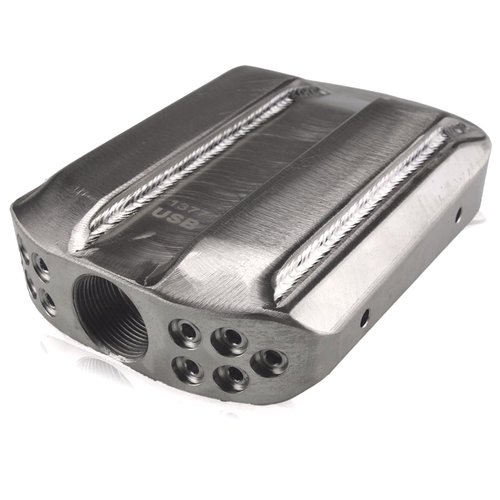

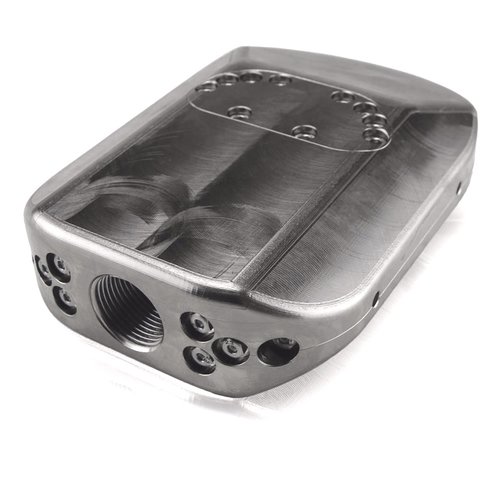

Being flat, compact, heavy and wedge-shaped makes the Flounder nozzle ideal for cleaning sand, dirt/mud, gravel and other material that has accumulated on the bottom of the pipe. The 3D fluid mechanics in combination with the design makes the cleaning process fast and effective.

Overview: Pipes with mud, sand, rocks and other debris on the pipe bottom

  • Round Pipes, Flatbottom Pipes, Box Culvert
  • 3D Fluid Mechanics
  • Recycle Water Approved
  • Tier 3

Product Specs

Part
Number
Hose Con.
(NPT)
GPM/
Minimum
Pipe
Diameter (in)
Dimensions
(L x W)
Weight
(lbs)
Rear
Jets
Front
Jets
Radial
Jets
Product
Tier
13771 1/4″8015″ – 60″10.62″ x 7.08″37.4710Tier 3
13781″5012″ – 40″8.66″ x 5.90″20.948Tier 3
13803/4″3010″ – 24″7.08″ x 3.93″9.56Tier 3
13811/2″124″ – 12″5.90″ x 3.54″6.614Tier 3
13823/8″62″ – 4″3.93″ x 2.75″2.24Tier 3
SOURCE: USB-USA, LLC.
