Camel Max Series 1200 Dump Combination Sewer Cleaner

The Super Products Camel Max 1200 Series is the most versatile combo unit in the industry. The product line was designed to meet the needs of contractors and municipalities with a variety of configurations. All 1200 models come standard with a high dump subframe eliminating the need of body-lift mechanisms or back up ramps during debris removal.

Debris Tank Capacity
12 cu yd
Water Tank Capacity
1,500 Gallons
Blower Performance
3,600 CFM, 5,500 CFM

FEATURES & HIGHLIGHTS

SAFE, RELIABLE, EFFECTIVE

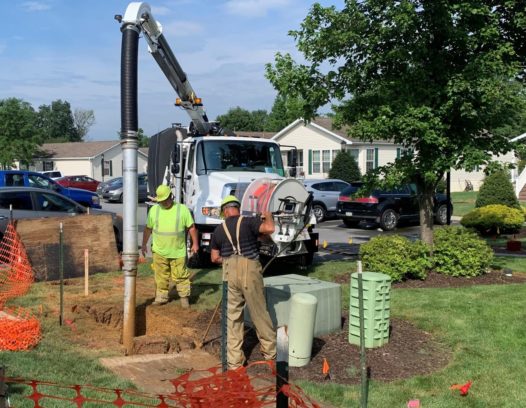

The 1200 Dump model utilizes a dump unloading system. This allows operators to have the capability to dump into a 42-inch container, while still maintaining a low overhead height during normal operation and a low center of gravity for increased stability. Optional features offer increased performance capabilities. A hydro excavation package allows operators to jet, vacuum and excavate continuously all day long, while an optional pusher axle allows for increased legal payload.

SPECIFICATIONS

CAMEL MAX SERIES 1200 DUMP COMBINATION SEWER CLEANER AT A GLANCE

  • Manufacturer:

  • Unloading System:

    Dump

  • Blower Performance:

    3,600 CFM, 5,500 CFM

  • Boom Articulation:

    270 Degrees

  • Water Pump Performance:

    100 GPM @ 3,000 PSI

  • Debris Tank Capacity:

  • Water Tank Capacity:

    1,500 Gallons

  • Hose Reel Capacity:

    1,000 ft

  • Hose Reel Mount:

    Front

  • Power Source:

    ,

  • Line:

  • *Exact specs may change without notice, or vary based on optional add-ons and features.

    CAMEL MAX SERIES 1200 DUMP BENEFITS

    COMBINATION SEWER CLEANING

  • Maximum Safety, Maximum Reliability, Maximum Performance.
  • Backup Camera
  • Body Up, Boom Up, & Tailgate Alarm
  • Debris Body & Tailgate Safety Props
  • Highly Accomodating Front-Mounted Hose Reel
  • Debris Body – Industrial Powder Coat Finish
  • Positive Displacement Blower
  • Air Purge System
  • Internal Debris Tank Flush Out System
  • The Camel Combination Sewer Cleaner is the most versatile combo unit in the industry allowing operators to tackle various applications with jetting, vacuuming and excavating. Whether addressing emergency situations or performing maintenance, municipalities and contractors depend on reliable and efficient equipment to get the job done.

    This sewer truck line comes in a variety of model configurations: 900 Dump, 1200 Dump, 1200 Eject and 1200 Wastewater Recycle.

    Maximum Safety: These sewer cleaner trucks are designed with operator safety in mind and loaded with a plethora of safety features.

    Maximum Reliability: These sewer cleaning trucks are designed to withstand the harshest environments and applications.

    Maximum Performance: These sewer trucks come standard with a variety of features and multiple options to increase onsite performance.

    The Camel Max Series sewer cleaning trucks have an optional feature of a pusher axle, which allows for increased payload capacity. Additionally, all three 1200 models come standard with a high dump subframe eliminating the need to back up a ramp for debris removal.

    CAMEL MAX SERIES 1200 DUMP BENEFITS

    COMBINATION SEWER CLEANING

  • Acculevel Load Sensor System
  • Debris body level sensor
  • Fully Automatic Powered Level Wind
  • Lighting Packages
  • Hydro Ex Package
  • Tailgate Tube Rack
  • Tool Boxes
  • Hose Reel Tensioning
  • Wireless Remote
  • Winter Recirculation
  • Hydrant Fill with Auto Shut Off
  • Splash Shield
  • Signboards
  • Multiple Axles
  • DOCUMENTS

    FOR THE CAMEL MAX SERIES 1200 DUMP COMBINATION SEWER CLEANER

    Additional information

    Manufacturer

    Unloading System

    Dump

    Blower Performance

    3,600 CFM, 5,500 CFM

    Boom Articulation

    270 Degrees

    Water Pump Performance

    100 GPM @ 3,000 PSI

    Debris Tank Capacity

    Water Tank Capacity

    1,500 Gallons

    Hose Reel Capacity

    1,000 ft

    Hose Reel Mount

    Front

    Power Source

    ,

    Line

    Title Type Size
    Super Products Camel Series Sewer Cleaner Truck Brochure 2022 application/pdf 5 MB
